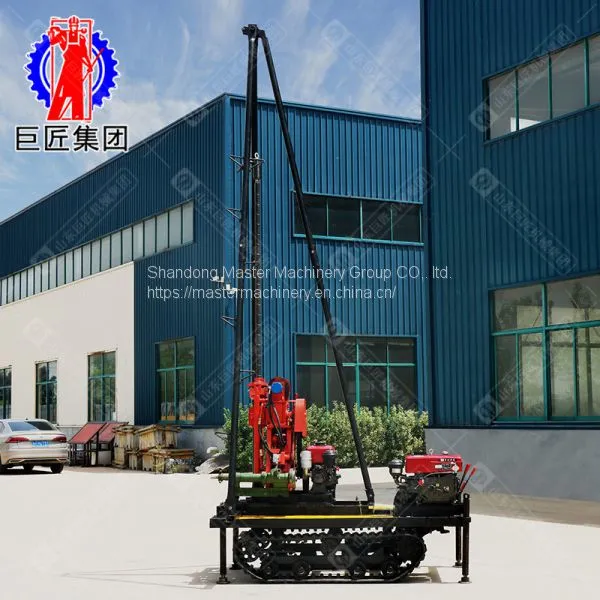

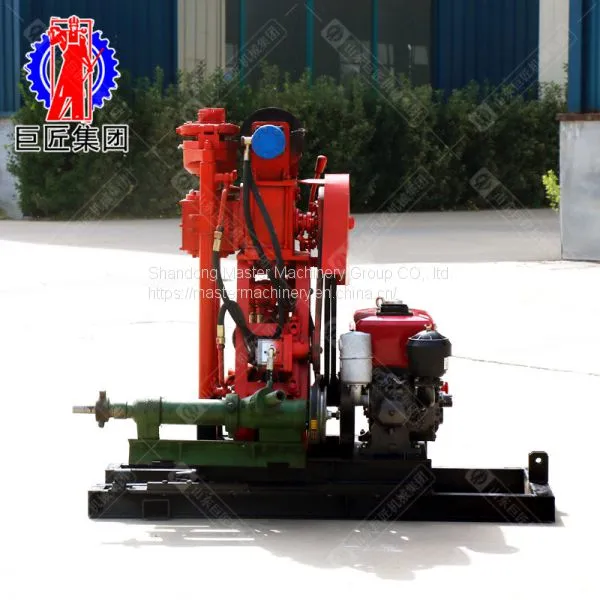

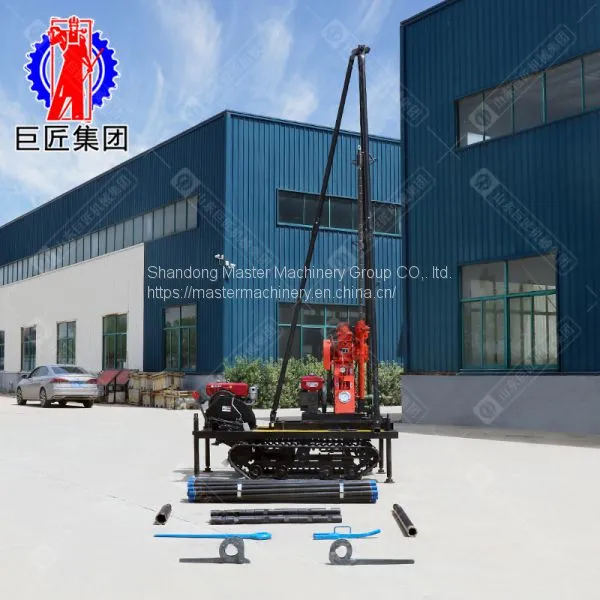

YQZ-50B Hydraulic Portable Drill 50 Meters Small Geological Exploration Engineering Survey Equipment

The YQZ-50B  hydraulic portable drilling rig is a high and low speed drilling rig with oil pressure. The drilling rig is suitable for geological drilling in complex terrain such as mountains, hills, river courses, engineering geological investigation of buildings, drilling of blasting holes and so on. To meet the needs of different users, the rig can be equipped with one of three kinds of power of diesel engine, gasoline engine or motor, and the default is diesel power.

2.Features of YQZ-50B  hydraulic portable drilling rig

a.The model portable drilling rig is compact in structure, small in size and light in weight. Rig can also be quickly dismantled, more convenient to transport up the mountain, especially suitable for mountainous and hilly complex terrain work.

b.Compared with similar products, the model portable rig is equipped with dual cylinder hydraulic feed system, with high drilling speed and high efficiency.

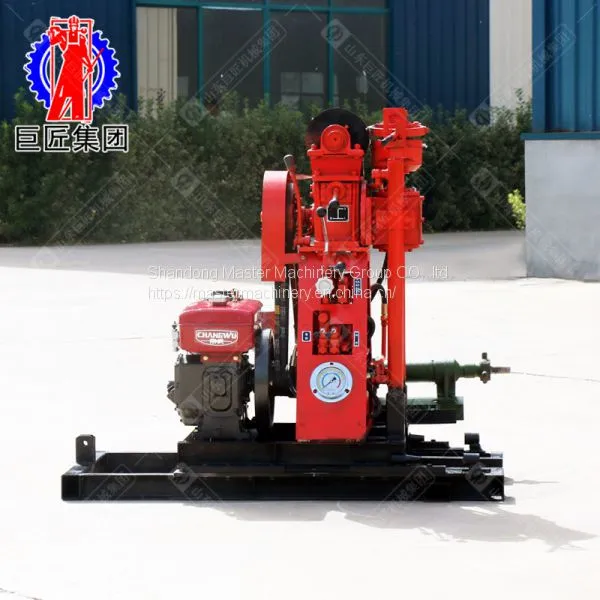

c.The operation panel of this type of portable drilling machine is equipped with the pressure gauge of the bottom of the hole to indicate the pressure in the hole, and the operator can make the adjustment according to the different terrain conditions.

d.The model portable rig is equipped with a high-performance 4 gear shift system. It is convenient for operators to freely adjust the positive rotation speed according to the geological conditions. In addition, it also has an ultra slow reverse gear, which is convenient for operators to remove drill pipe drill tools.

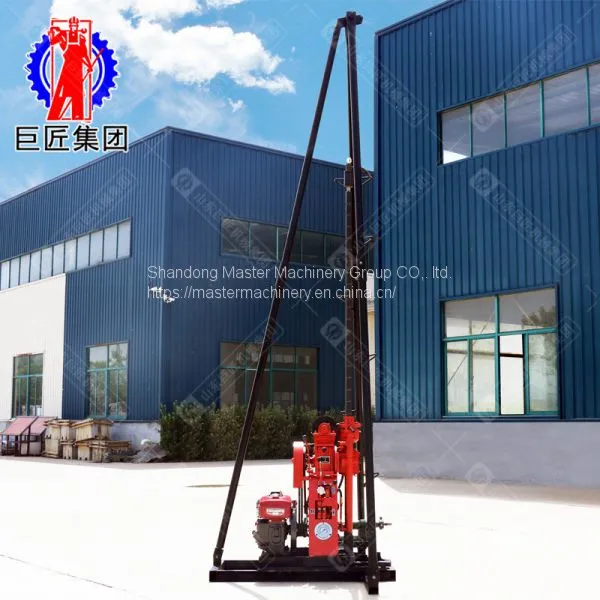

e.This type of portable drilling rig is equipped with automatic hoisting and lifting system, combined with tower, which greatly saves labor intensity and improves work efficiency.

f.The drill is equipped with a ball clip clamping mechanism and a six party active drill rod, which can realize the non stopping of the pole, and the efficiency is high, and the safety is reliable.

3.Technical parameters

4.YQZ-50B type hydraulic portable drilling rig
