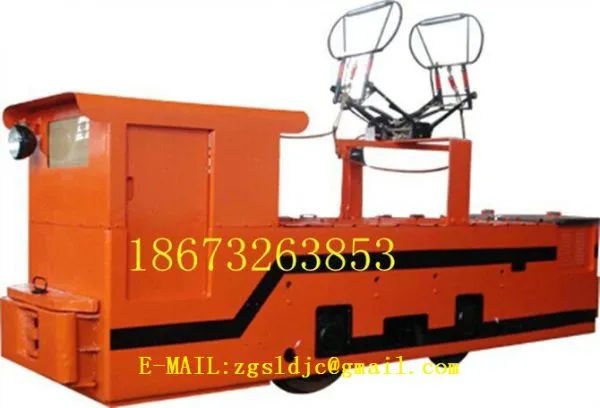

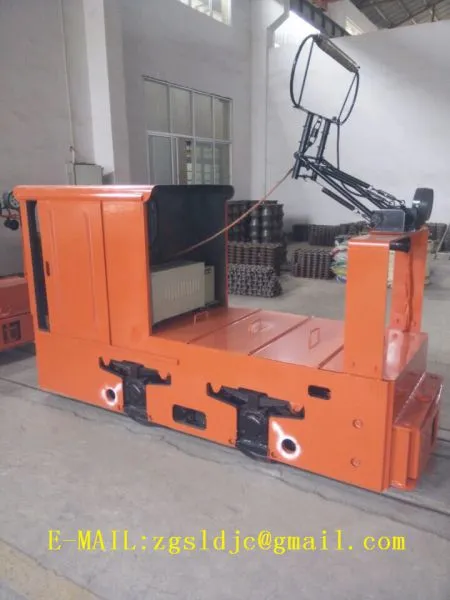

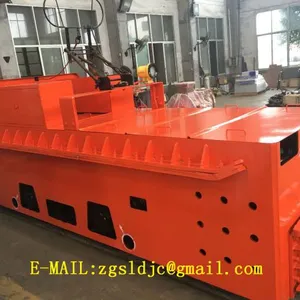

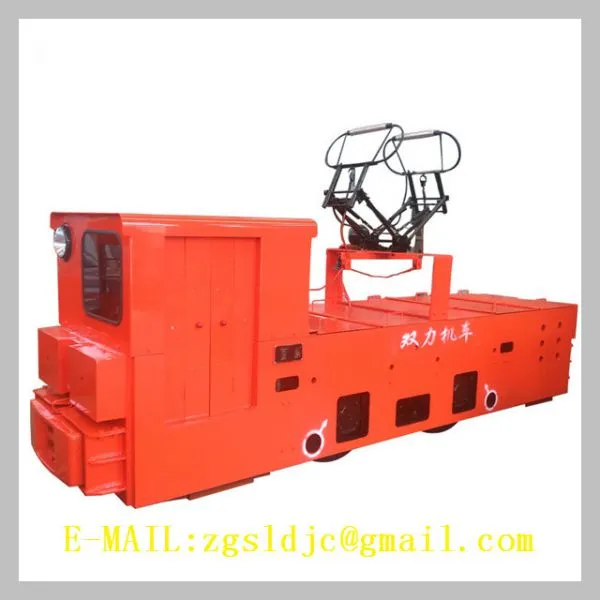

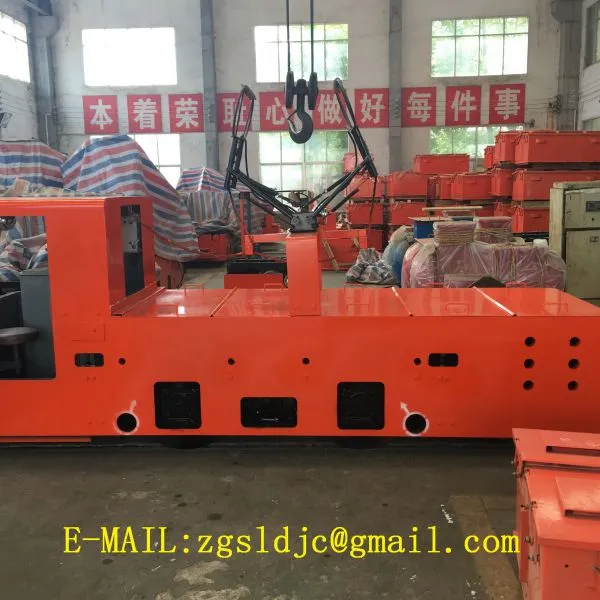

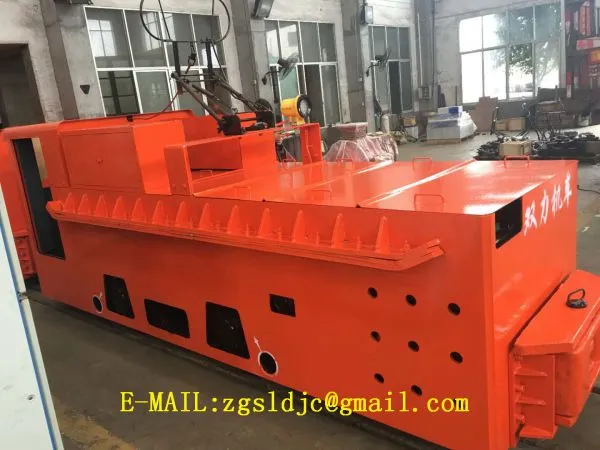

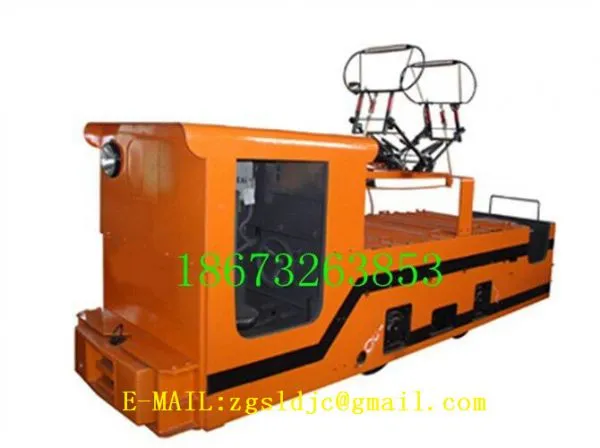

Cjy3/6.7.9g Trolley Locomotive For Mining Power Equipment
- 200 Set / Sets per Month
- T/T D/P D/A Other
- For Coal Mining Electric Locomotive For Mining Cjy7/6g(b/p)-250v
- Mining Railway Mine Aerial Cable Locomotive Cjy 1.5t Zl20/9g
- Coal Mine Locomotives Cjy7/6gp 7t For Coal Mine Transportation
- Cjy7/6gp 7t For Coal Mine Power Equipment Coal Mine Locomotives
- Overhead Line Mining Locomotive Overhead Trolley Mining Railway Locomotive Cjy7/9g-250
- Trolley Electric Locomotive High Safety Cjy20/6gp 20 Ton
Product Details
Model Number: | CJY | Brand Name: | Shuangli | Place of Origin: | China |
Speed (km/h): | 25km/h | ||||
Product Description
Description:
Locomotive us ing DC electrical line, DC transformed to three phase AC by computer traction transformer, the voltage and frequency can be adjusted, which can drive two AC asynchronous motor, by reduction gear driving axle to tract locomotive.
The core parts of traction transformer using 32 digital DSP chip, fast speed with quick response.
Have good sticking and big traction.
Reliable AC electrical motor, with wide range of speed regulation.
Less cost for maintenance, can avoid ring fire and burnt compared to DC driving.
The products are suitable for transportation traction on the narrow rail for the field of coal, metallurgical industry, mining, forest, railway, road tunnel construction and etc.
Locomotive can be used elevation within 2000m, metal mine or non-hazardous area.
Specification:
Adhesive Weight | Customized |
Track Gauge | 600, 762 or 900 mm |
Traction | 13.05 kN,15.09 kN |
Max. Traction | 17.2 kN |
Speed | 11 km/h |
Voltage | 550 V,250 V |
Power | 24kW*2 , 21kW*2 |
Size(L*W*H) | 4470 mm |
1054, 1216 or 1354mm | |
1550mm | |
Pantograph | 1800~2200mm |
Wheelbase | 1100mm |
Wheel Diameter | Φ680 mm |
Min. Turning Radius | 7m |
Electromechanical Controller | Resistance, IGBT or AC Converter |
Brake | Mechanical Brake |
Specifications:
1.Long service life of gear
2.More powerful traction effort
3.Faster running speed
