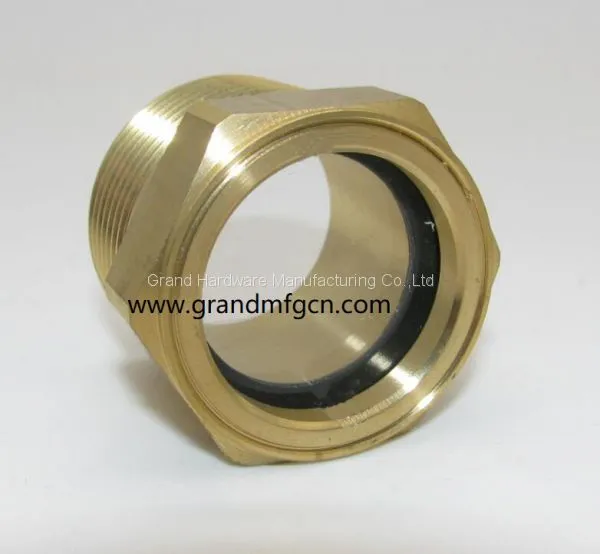

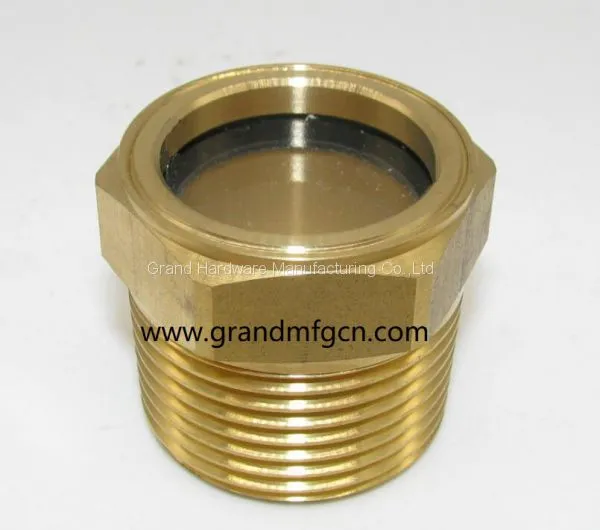

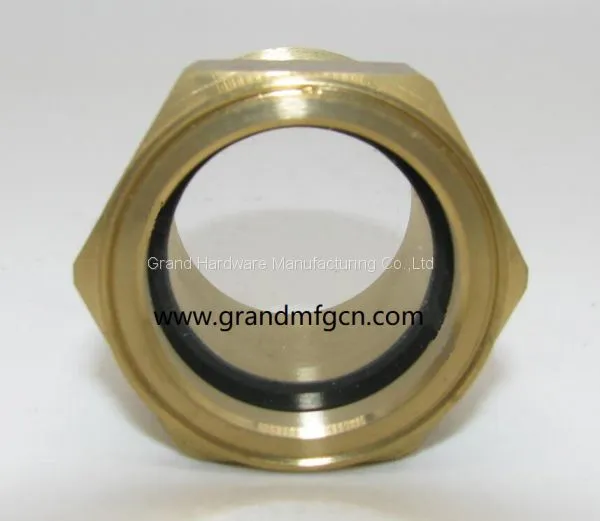

brass oil level glass sights for pumps NPT pipe thread 1 inch
USD $0.68 - $10
/ Piece
500 Pieces(Min.Order)
- 100000 Piece / Pieces per Month
- Ningbo port
- T/T
- 45 days
You May Like
-
brass oil level glass sights for pumps BSP pipe thread 3/4 inch
-
Aluninum blower oil sight glasses OEM metric aluminum sight glass plugs
-
100 bar stainless steel 304 oil levels sight glass MNPT thread 1/4 1/2 3/8 inch
-
brass oil level glass sights for reducers compressors gearboxes hydraulic tank G3/8 G3/4
-
high pressure stainless steel 316L oil level sight glass male npt thread 1/4 inch 2 inch
-
high pressure stainless steel 316L oil level sight glass male npt thread 1/4 inch 2 inch
Product Details
| Brand Name | grandmfg | Place of Origin | China | |
| Model Number | grandmfg | Use | truck radiators | |
| Weight | 80g | Expiration Date | grandmfg |
Product Description
Material Body: Brass
O-Ring: Viton,FKM,NBR, Aramid gasket and Copper seal
Glass Thickness: 2mm to 5 mm

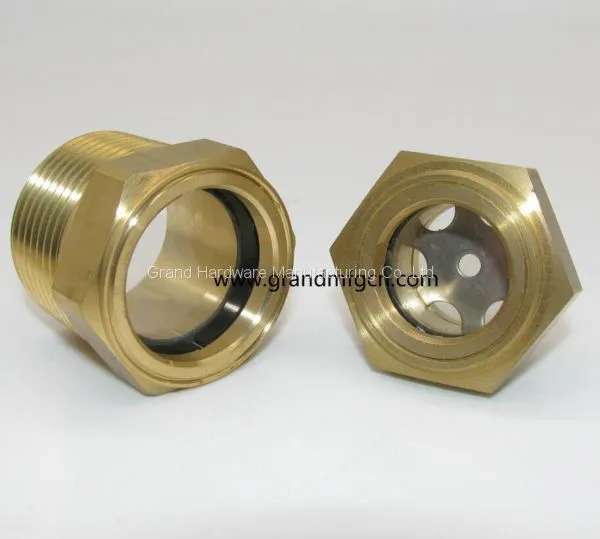

Reflectors: Stainless Steel 304 Reflector
(Any type you can chose with reflector or without Reflector, You also can add float ball.)
Glass Type: Natural Glass,Tempered Glass and Borosilicate Glass
Resist Tempreature Range:-30'C to 120'C
Pressure Range: 5-10 Bar(0.5MPa to 1 MPa).
Thread type:NPT,NPTF,UNC,UNF,Metric and BSP(G thread)
Size： Below you will get the size you wanted.Another size is okay.OEM are welcome.
Usage: Pump,Oil Receivers,Gearboxes,Speed Reducer,Compressor and Power Transimission.
| item | brass sight glasses |
| material | brass |
| O-Ring | Viton,FKM,NBR, Aramid gasket and Copper seal |
| window | Natural Glass,Tempered Glass and Borosilicate Glass |
| Glass Thickness | 2mm to 5 mm |
| Reflectors | Stainless Steel 304 Reflector (Any type you can chose with reflector or without Reflector, You also can add float ball.) |
| Resist Tempreature Range | .-30'C TO 120'C |
| Pressure Range | 5-10 Bar(0.5MPa to 1 MPa). |
| Thread type | NPT,NPTF,UNC,UNF,Metric and BSP(G thread) |
| FAQ | ||
| 1.What is your MOQ, Delivery time? Ship from which port? | ||
| Our MOQ from 20-1000 Pcs different according items.The retail orders from ultimate customers are available if the item in stock. We usually ship bulk goods within 45 days from Ningbo port. | ||
| 2.Can I get sample for quality checking before order? | ||
| Yes. Although we have a complete product quality inspection systerm, we also hope to confirm the new project before order.We could offer sample for free but do not pay the express charge. | ||
| 3.If we get quality problem or wrong sizes, how to solve? | ||
| Please check the goods once you get. If we ship wrong products (for example :wrong sizes) or you get quality problem, don't worry, just please contact us immediately, we will take our responsibility. About some items, we sure that our products' sevice life as same as your equipments' service life. You will get what you pay for. | ||
| 4.How to contact Yuhuan Yize Machinery Factory ( Grand Hardware Manufacturing Co.,Ltd.)? | ||
| Please visit our website: . |
