ChinaHome > Products > Trolley Locomotive > Cjy7/6gp 7t Overheadoverhead Line Electric Mining Locomotive Explosion Proof

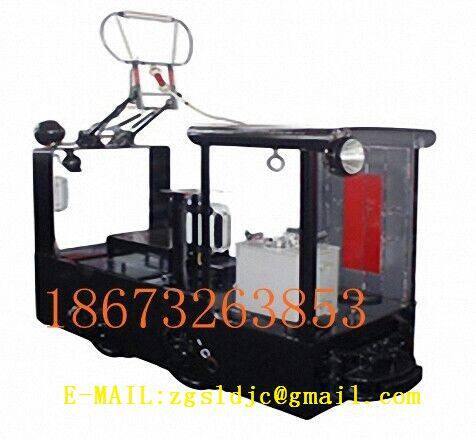

Cjy7/6gp 7t Overheadoverhead Line Electric Mining Locomotive Explosion Proof
Negotiable
/ Set
1 Set(Min.Order)
- 200 Set / Sets per Month
- T/T L/C Other
You May Like
-
For Coal Mine Transportation Cjy3/6.7.9g Trolley Electric Locomotive
-
Cjy20/6gp 20 Ton Railway Locomotive For Mining Power Equipment
-
High Reflective Cjy 1.5t Zl20/9g Line Mining Locomotive
-
Electric Locomotive Cjy18/9gp Trolley Powered
-
Mining Equipment Line Mining Locomotive Cjy7/6g(b/p)-250v
-
High Reflective Electric Trolley Locomotive Cjy7/6gp 7t For Coal Mine Transportation
Product Details
| Model Number | CJY | Brand Name | Shuangli | |
| Place of Origin | China | Speed (km/h) | 25km/h | |
Product Description
Specification:
| Adhesive Weight | Customized |
| Track Gauge | 600, 762 or 900 mm |
| Traction | 13.05 kN,15.09 kN |
| Max. Traction | 17.2 kN |
| Speed | 11 km/h |
| Voltage | 550 V,250 V |
| Power | 24kW*2 , 21kW*2 |
| Size(L*W*H) | 4470 mm |
| 1054, 1216 or 1354mm | |
| 1550mm | |
| Pantograph | 1800~2200mm |
| Wheelbase | 1100mm |
| Wheel Diameter | Φ680 mm |
| Min. Turning Radius | 7m |
| Electromechanical Controller | Resistance, IGBT or AC Converter |
Brake | Mechanical Brake |
Description:
Locomotive us ing DC electrical line, DC transformed to three phase AC by computer traction transformer, the voltage and frequency can be adjusted, which can drive two AC asynchronous motor, by reduction gear driving axle to tract locomotive.
The core parts of traction transformer using 32 digital DSP chip, fast speed with quick response.
Have good sticking and big traction.
Reliable AC electrical motor, with wide range of speed regulation.
Less cost for maintenance, can avoid ring fire and burnt compared to DC driving.
The products are suitable for transportation traction on the narrow rail for the field of coal, metallurgical industry, mining, forest, railway, road tunnel construction and etc.
Locomotive can be used elevation within 2000m, metal mine or non-hazardous area.
Specifications:
1.Long service life of gear
