Ultraslim Notebook Type Black and White Ultrasound Scanner Machine

FOB Price

Negotiable / Unit

1 Unit(Min.Order)

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price

Product Details

Brand Name:	BENEMED	Place of Origin:	China	Model Number:	BW-8
Type:	Clinical Examination Aids

Features:

Technical Specification

B&W mode:	B,M,2B,B/M,4B
Gray:	256
Display:	15"LCD monitor
Transducer Frequency:	2-11MHZ
Digital Technology:	Wide-angle imaging Panotamic focusing technology Rolling M technology
Scanning Depth:	220mm
Functions
Cine-loop:	334 frame cine loop memory
USB ports:	2
Zoom:	Pan zoom
THI:	Tissue Harmonic Imaging
Qopt:	One-key Optimize
DICOM:	DICOM3.0
Print:	Report print for text&graph&image

Measurement & Calculations

B mode:	Distance,angle,area,volume,trace length,distance ratio
M mode :	Distance,time,slope,HR
Software packages:	Abdomen,OB,Gynecology,small Part,Cardiac

Others

Transducer connector:	3 active transducer connector ports

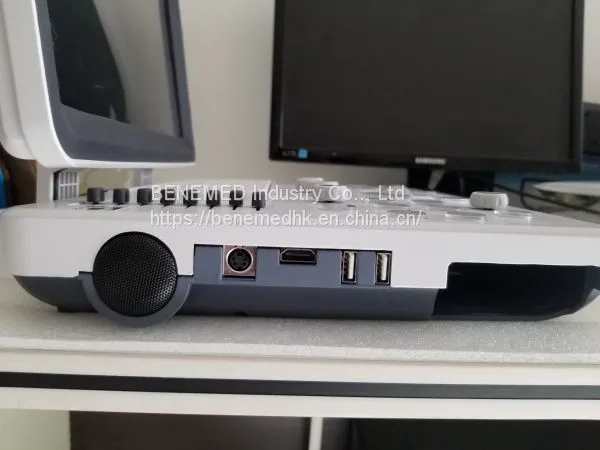

Peripheral ports:	Video,2 USB ports,1 networking port,1 power inlet, 1 equiptential terminal

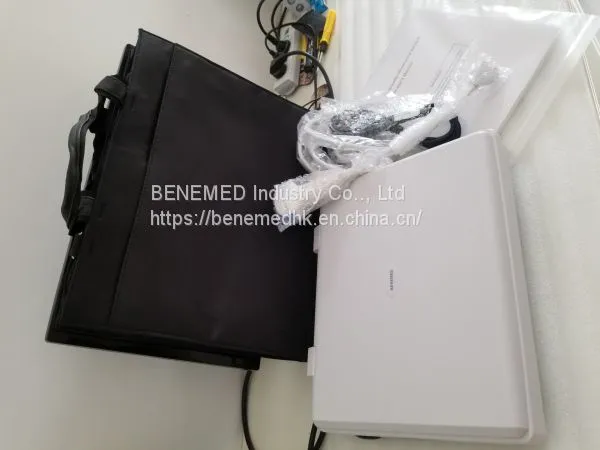

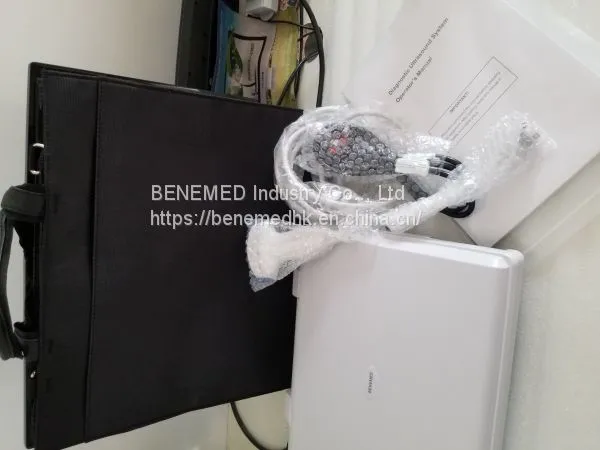

Standard configuration:	BW-8 main unit, Convex probe, Power adapter
Power supply:	100-240~50/60HZ<100VA
Options:	Transvaginal probe, Linear probe, Micro convex probe
Dimensions(main unit):	360mm(W)360mm(L)90mm(H)
Packing dimensions:	415mm(W)435mm(L)140mm(H)
Net weight:	4.5kg
Gross weight:	5.5kg
