Tapered Thread Sucker Rod from China leading manufacturer

FOB Price

USD $1 - $2 / Piece

1000 Pieces(Min.Order)

Supply Ability 150000000 Meter / Meters per Month
Port Tianjin
Payment Terms:T/T L/C

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price

Product Details

Place of Origin:

China

Type:

Sucker Rod

Product Description

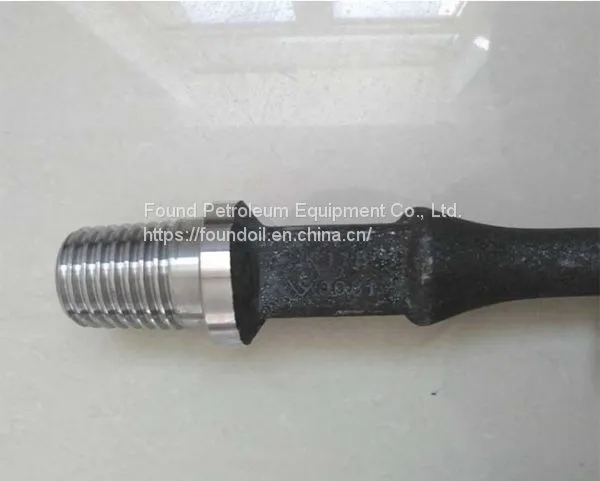

Tapered Thread Sucker Rod

It is a sucker rod designed specially for the PCP pump, and the taper thread is designed according to the drill pipe thread, which is applied to a high anti-twist thread on the rod thread.

Its characteristics are:1.It can withstand greater torque.2.Because the pitch is large and the tooth is wide,fastening and unfastening is fast.3.Prevent thread loosening.

Sucker Rod for sale

Tapered Thread Sucker Rod

No.	Size	Rod Diameter(mm)	Threading	Length of finished product
1	7/8"	22.23+0.2-0.41	NC12	8000	30FT
2	1"	25.4+0.23-0.46	NC16	7620	25FT
3	1-1/8"	28.58+0.25-0.51	NC16	1000	2FT
4	1-1/4	31.75+0.0-0.76	NC16	2000	4FT
5	1-1/2"	38.1+0.0-0.0.76	NC16	3000	6F

Mechanical Properties Of Tapered Thread Sucker Rod
Grade	Minimum Yield Strength (0.2% Residual Deformation）		Minimum Tensile Strength		Maximum Tensile Strength		Elongation 200mm%	Reduction Of Area Z%	Surface Hardness HRC	Core Hardness HB	Fatigue Life
	psi	MPa	psi	MPa	psi	MPa	≥13	≥50			≥1.0X106
D	85000	586	115000	793	140000	965	≥13	≥50
KD	85000	590	115000	795	140000	965	≥13	≥50
HL	115000	795	140000	965	173339	1195	≥13	≥45
HY	/	/	140000	965	173339	1195	/	/	≥42	≥224
