Industrial Tunnel Dryer(86-15978436639)

Seaworthy packing as per export container rules, bigger items loose stuff in container and small parts will be tied up in a bundle put into steel boxes or plywood boxes. Delivery will be arranged based on busy or low producing season in our factory, single set machine is normally not more than 40 days, production line is in 2 month.

Industrial Tunnel Dryer

Industrial Tunnel Dryer Introduction:

(1) The Industrial Tunnel Dryer is one kind of batch, tunnel type continuous production drying equipment.

(2) It is mainly used for better breathability slice, strip and briquettes and bulk material, like coal bar, coal tablet, etc. drying process.

(3) Heating source is power, steam and hot air, etc. The Industrial Tunnel Dryer is conceptually very simple. Product is carried through the dryer on conveyors and hot air is forced through the bed of product.

(4) Industrial Tunnel Dryer is often described as simply a conveyor in a box with hot air. The reality, however, is that the belt dryer is one of the most versatile dryers available.

(5) Few drying technologies can match the belt dryer’s ability to handle such a wide range of products.

Industrial Tunnel Dryer Working Principle:

(1) Industrial Tunnel Dryer feeding part has feeding device, which laid material evenly on the mesh belt through distributor. When first layer move to driving chain wheel, material fall down to second layer by self-weight.

(2) Use blower delivery hot air to bottom from upper both wall side inter-layers, make hot air flows up from bottom, so that wet material fully absorb heating, and reach to perfect drying effect.

(3) The wet air from dried material is transported by weep hole on the upper middle part of dryer. Not dried briquettes, the strength is a little bad at the beginning. When fall down from layer to layer, the impacting and rubbing of each briquette will bring powder.

(4) Traditional Industrial Tunnel Dryer get manual clean, but it takes big labor intensity, and need open door to clean, which cause drying machine inside temperature lose.

(5) Now, our factory adds a scraper slag removal machine on the dryer bottom can get rid of powder quickly and conveniently.

Industrial Tunnel Dryer Advantages:

(1) Materials are uniformly put on the mesh-belt by the feeder.

(2) The drier is composed of several units.

(3) For each unit, the hot air is circulated separately.

(4) Some exhausted gas is discharged with a special moisture elimination blower.

(5) The waste gas is controlled through an adjustment valve.

(6) The hot air passes through the mesh-belt covered with the material from the top to the bottom or from the bottom to the top and this will complete the heat and mass transfer process.

(7) This process will bring the material water away.

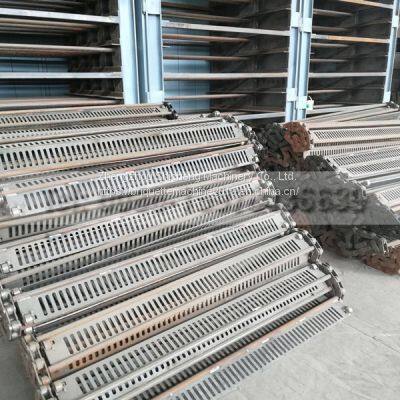

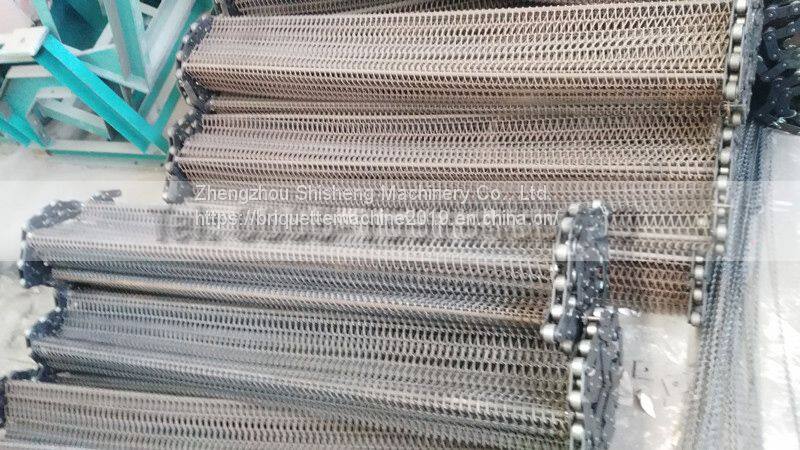

(8) The mesh-belt moves slowly, Running speed can be freely adjusted according to the material temperature. The final products after the drying will fall into the material collector continuously.

(9) The top and low circulation units can be freely equipped according to the users' demand.The unit number can be selected according to the demand.

Industrial Tunnel Dryer Technical Parameter:
