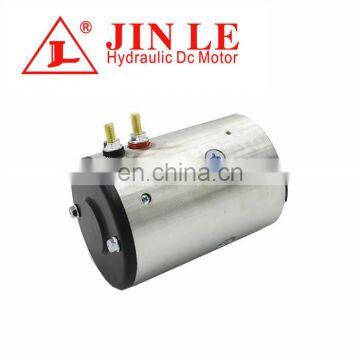

12v 1.6kw dc motor for electric vehicle

Name: 12v 1.6kw dc motor for electric vehicle
Brand: Jinle
Price: USD $35 - 45 / Piece

FOB Price

USD $35 - $45 / Piece

1 Piece(Min.Order)

Supply Ability 10000 Piece / Pieces per Month
Port SHANGHAI
Payment Terms:T/T Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price

Product Details

Brand Name:	Jinle	Place of Origin:	Jiangsu, China	Model Number:	ZD193A
Type:	Micro Motor	Certification:	CE	Torque:	6N.m
Usage:	Boat, Car, Electric Bicycle, Fan, Home Appliance	Construction:	Series Wound	Efficiency:	Other
Voltage(V):	12V	Output Power:	1600w
Continuous Current(A):	120A	Speed(RPM):	2600RPM	Commutation:	Brush

Product Description

12v 1.6kw dc motor for electric vehicle

1.Specifications 12v 1.6kw dc motor for electric vehicle

Type	ZD193A
Voltage	12V
Power	1.6KW
Speed	2600RPM
Rotation	CW
o.d	114MM
Operating mode	S3
Effiency	IE2
Weight	7.5KG
Insulation	F
Protection Class	IP54

2.Features12v 1.6kw dc motor for electric vehicle

_This12v 1.6kw dc motor for electric vehicle have following features:

(1)stable running, high efficiency, low noise
(2)good service after sale
(3)12V, 24V, 48V, 60V etc. on your request
(4)Customized production is available!
(5)Supply for OEM Production!
(6)nearly 20 years' manufacturing experience

3.We provide you OEM or ODM service 12v 1.6kw dc motor for electric vehicle dc motor 12 v 1600w for automobile model

(1) good quality service;HOT selling hydraulic dc motor 12 volt 1600w ZD193

(2) fast delivery service;
(3) safety package service;HOT selling hydraulic dc motor 12 volt 1600w ZD193
(4)fast sample valves preparing service;
(5) good after sale service;HOT selling hydraulic dc motor 12 volt 1600w ZD193
(6)24 hour online service;

4.Parameters 12v 1.6kw dc motor for electric vehicle

Unload :

Speed(n) =3954(rpm)
Current(l) =106.520(A)
Max_Torque
Torque(M) =6.860(N.m) 12volt 1.7kw dc motor for forklift truck pump
Current(I) =274.810(A)
Speed(n) =2070(RPM)
Eff =44.72%
Output Power(P2) =1487.30(W)
Max_Efficiency:
Eff =57.66% 12v 1.7kw dc motor for power unit pack
Speed(n) =2642(RPM) 12volt 1.7kw dc motor for forklift truck pump
Torque(M) =4.970(N.m)
Current(I) =201.230(A)
Output Power(P2) =1374.40(W)
Max_Pout:
Eff =44.72%
Speed(n) =2070(RPM)
Torque(M) =6.860(N.m)
Current(I) =274.810(A)
Output Power(P2) =1487.30(W)

Detailed Images

More details of 12v 1.6kw dc motor for electric vehicle , pls feel free to contact me:

Customized production is available. Send me the parameters, we will customize for you!

Application

12v 1.6kw dc motor for electric vehicle

we are a manufacturer of dc motor and power units more than 21 years,coorporated with Hidros in turkey and KOPACK , Hydro-tek , all of our products have passed CE and ISO9001:2000 certificates.
tThe hydraulic power pack units with Jinle dc motors / electric motors are mainly applied for forklift lifting, van tailboard, wing plate, the three account for 80%.12v 1.6kw dc motor for electric vehicle

The rest are used for snow remover truck, golf course excavater,fixed boarding bridge,dump truck, muck cover system, medical bed and hydraulic equipments etc.12v 1.6kw dc motor for electric vehicle

Our Service

1.Sample service:osamples can provide preferential.12v 1.6kw dc motor for electric vehicle

2.customized services: a variety of power units can be customized according to customer demand.
3. aftermarket service: according to consumer requirements, technical guidance on the use and other aspects. In case of quality problems under normal use, free replacement within one year of free maintenance for life.12v 1.6kw dc motor for electric vehicle

Packing & Delivery

Internal packing: air bubble pad or plastic bag with corrugated carton with required lables
External packing: pallet with required lables .12v 1.6kw dc motor for electric vehicle
Of course, any special package requirements are depend on your esteemed company.

Our Company

Our factory was established in 1996, professional in hydraulic dc motors, hydraulic power pack units, hydraulic cylinders, solenoid valves etc. They are widely used for forklift, vehicle tailboard, lift table, electric stacker, wing plate and other hydraulic equipment etc.
12v 1.6kw dc motor for electric vehicle
We have nearly 20 years' manufacturing experience with a strong team of 30 engineers for research and development. The motors' annual output has been more than 200,000 sets.

12v 1.6kw dc motor for electric vehicle

So far, we are the only designated OEM hydraulic power unit motor supplier in China for US WAI Company, OEM forklift motor supplier for Korea SOOSUNG. Also, we cooperated Korea KOPACK, Turkey Hidros and HELI in China.

12v 1.6kw dc motor for electric vehicle

We have been attentively persisting in manufacturing hydraulic dc motors for 20 years.
