XCMG Road Roller Vibratory 18 Ton XS183J

Name: XCMG Road Roller Vibratory 18 Ton XS183J
Brand: XCMG
Availability: InStock

FOB Price

USD $26000 - $35000 / Unit

1 Unit(Min.Order)

Supply Ability 10000 Unit / Units per Month
Port Qingdao, Shanghai, Lian Yungang
Payment Terms:T/T
Delivery Detail:7 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name:	XCMG	Place of Origin:	China	Model Number:	XS183J
Type:	Single Drum Roller	Certification:	ISO CE	After-sales Service Provided:	Engineers available to service machinery overseas
Weight:	18000kg	Dimension(LWH):	622223903077mm	Condition:	New
Power(W):	115kw	Grade Ability:	30%	Travel Speed:	11.17km/h

Product Description

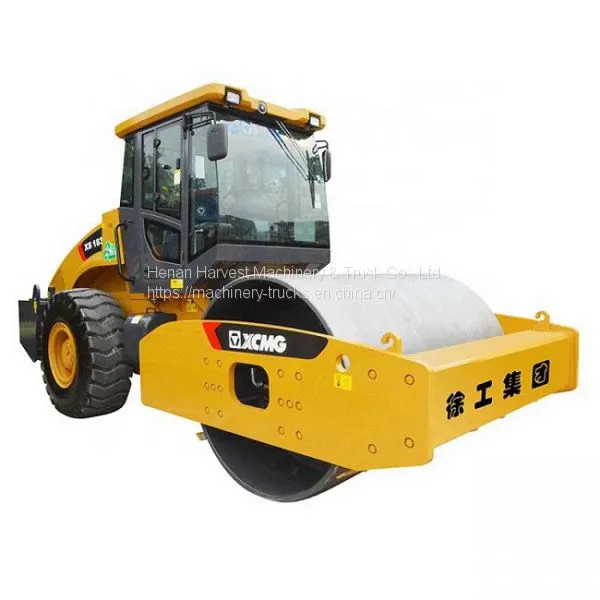

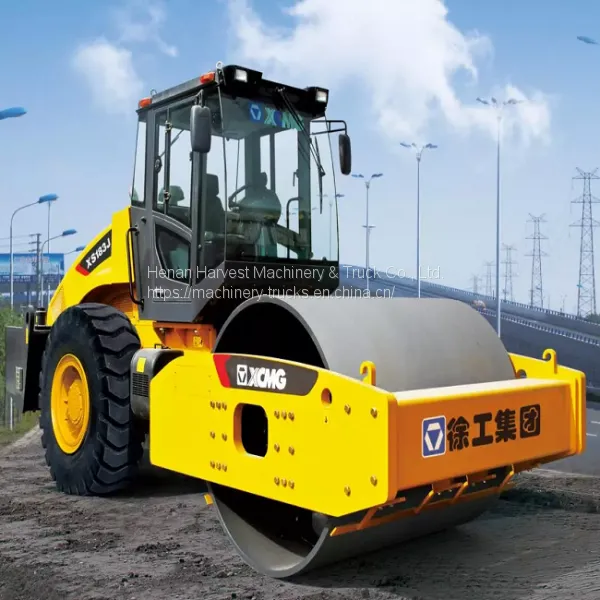

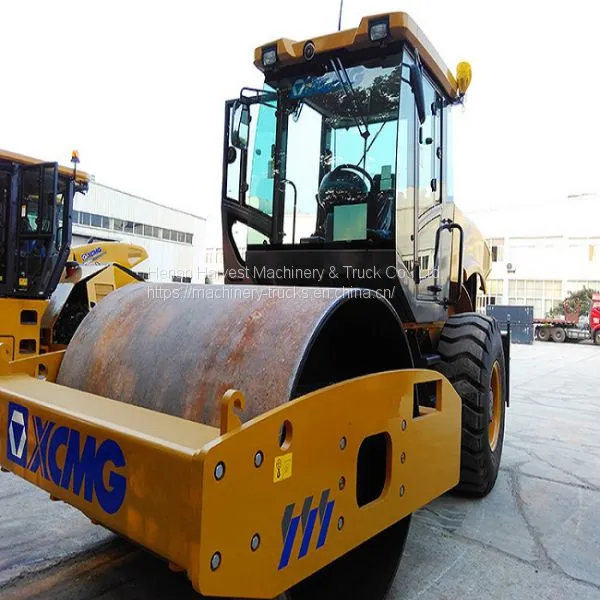

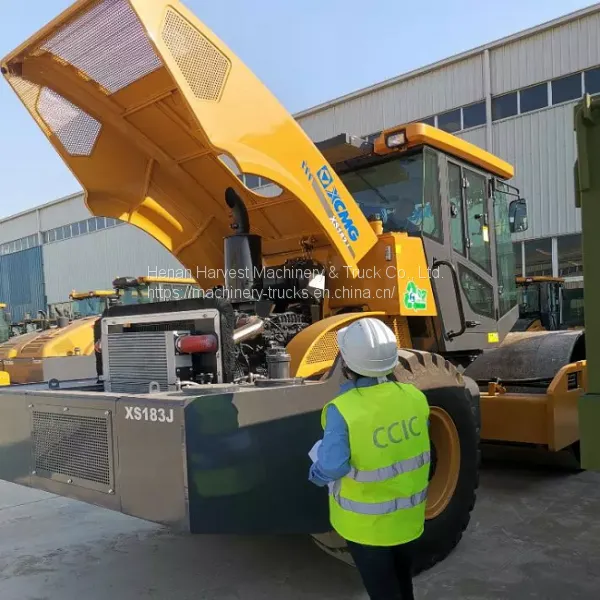

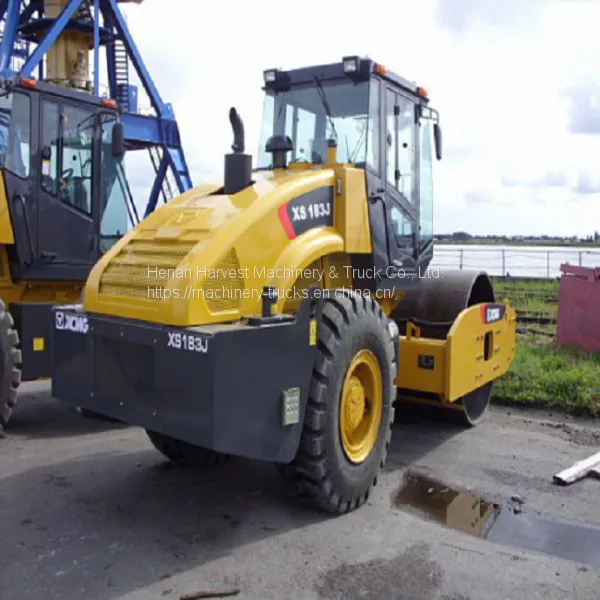

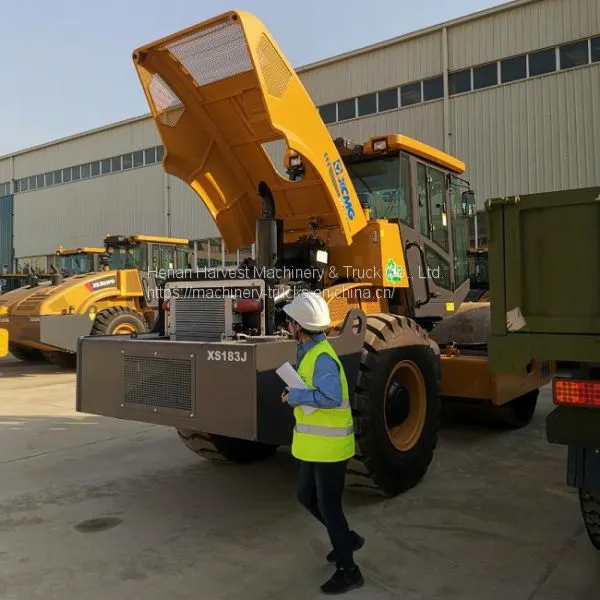

XCMG Road Roller Vibratory 18 Ton XS183J

XCMG Official manufacturer 18 ton remote control road roller XS183J

XS183J vibratory roller is a highly efficient and energy-saving super heavy machinery driven single drum vibratory roller inde- pendently developed by XCMG. This product is suitable to the compaction operation of pebbles, sandy soils, moraine soil, blasting rock and clayey soil, as well as the compaction of concrete and stabilized soil base materials in various large projects. It is the ideal compaction equipment for the construction of high-grade highways, airports, harbors, dams and industrial construction sites.

Performance Characteristics:

* The Shangchai China-Ill SC7H turbo electrically controlled diesel engine is adopted to increase and decrease the rotating speed, so as to achieve the best fuel consumption working area and reduce the comprehensive fuel consumption. The low-speed diesel engine reduces noise emission and enhances the leakproofness of the whole engine to reduce noise. * Optimized transmission system matching to achieve the best compaction speed and increase the efficiency by 8%. * The vibration damping device with combined stiffness is adopted in the cab and frame, multidimensional reduction of cab vibration, significantly improves the working comfort of the operator. * Scientific and reasonable air duct design, the air conditioning system radiates heat independently to ensure sufficient air intake and improve the heat dissipation ability comprehensively, ensuring efficient operation of power system. * Using the Hachi gear box with synchro mesh unit to realize convenient operation. * Optimized vibration parameters, reliability and work quality is greaty improved. * The Chinese initiative throttle clutch linkage system is adopted to greatly improve the reliability of clutch system.

Type	Unit	XS183J
Operating weight	kg	18000
Load applied on front drum	kg	9000
Compacting width	mm	2300
Static linear load	N/cm	422
Vibration frequency(Low/High)	Hz	28
Nominal amplitude(High/Low)	mm	1.9/0.95
Exiting force(High/Low)	KN	320/160
Travel speed	km/h	2.54~10.51
Steering angle	°	±33
Swing angle	°	±11
Theoretical gradeability	%	50
Min. Outer turning radius	mm	6500
Engine model	Shangchai
Engine power	kw	115
Hydraulic oil tank capacity	L	170
Fuel tank capacity	L	310
