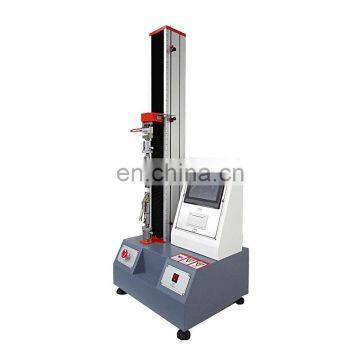

Small electronic single column pulling force tensile test machine
Application-Small electronic single column pulling force tensile test machine
The design of DZ-102 Small electronic single column pulling force tensile test machine integrates the control technology and shape design of advanced test equipment. The machine has beautiful appearance, convenient operation and reliable performance.This machine adopts ac servo control motor and ac digital servo control system as the drive, the arc synchronous belt and synchronous belt wheel deceleration system precision ball screw driven by gear after loading, complete sample a variety of mechanical properties test.
Features-Small electronic single column pulling force tensile test machine
Small electronic single column pulling force tensile test machine is free of pollution, low noise, high efficiency, and has a wide range of speed adjustment.
1. Adopt high precision, all-digital speed control system and precision speed reducer, drive the precision screw side to carry out the test, realize the large range adjustment of the test speed, and the test process is low in noise and smooth running.
2. Universal joint cross bolt structure, and has the function of swing Angle limit, on the one hand is advantageous for the specimen clamping, guarantee the test concentricity, on the other hand good to eliminate the influence of irregular sample of sensor.
3. Touch key operation mode, LCD display in real time.Display interface can display test method selection interface, test parameter selection interface, test operation and result display interface and curve display interface, convenient and quick.
4. The beam can be adjusted in a fast and slow way when the sample is clamped. It has the protection devices such as overcurrent, overpressure and overload.
5. Select the microcomputer interface, and the external microcomputer can realize the control of the test process and the storage and printing of the data.
Technical parameters-Small electronic single column pulling force tensile test machine
| Model | DZ-102 |
| Test precision | within ± 1% |
| Capacity | 2,5,10,20,50,100,200Kg |
| Degree of disintegration | 1/25,000 |
| Display | can display the test value, the maximum value via LED |
| Accuracy | 0.5% |
| Max.stroke | 1000mm (including fixture) |
| Sampling frequency | 200times/sec |
| Test speed range | 50~300mm/min(adjustable ) |
| Degree of disintegration | 1/25,000 |
| Motor | AC motor |
| Test precision | Within ±1% |
| Effective width | 150mm |
| Effective space | 650mm/800mm/1000mm |
Design standard
ASTM D903, GB/T2790/2791/2792, CNS11888, JIS K6854, PSTC7...etc.
Small electronic single column pulling force tensile test machine

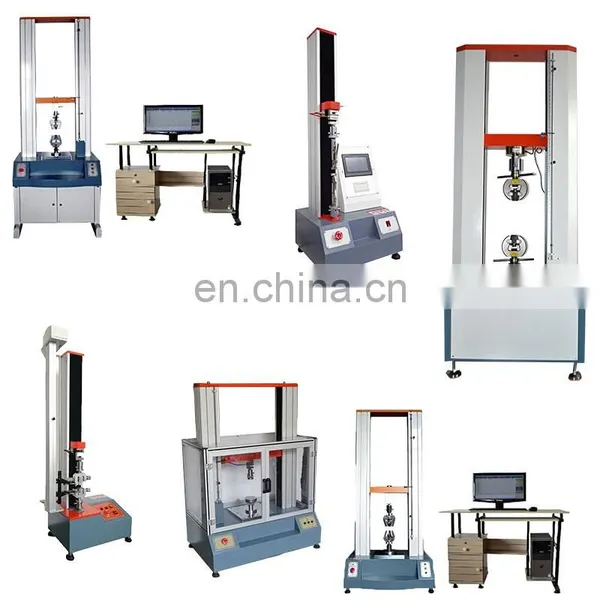

Universal tensiel tester(5T) Universal tensile tester(200kg) Mobile drop tester(1.5/2m) Wire elongation tester
Humidity climatic chamber Dust test chamber 339 Abarasion tester Moving die Rheometer
We have professional packing teams and shipping forwarder to pack and deliver your products!
Small electronic single column pulling force tensile test machine
Packing:
1. Out packing:Standard export wooden case.
2. Inner packing:With careful stretch film wrap product, hard wood board+ strong bandage to fix corners.
3. Checking teams: Specialized staff to inspect and classified your goods.
Shipping:
You can specify other shipping methods such as Airmail, FEDEX or DHL. We shall let you know about the shipping cost after receipt ofyour order. It's more preferable for you to provide us with your own FEDEX/DHL account number so that the delivery charge can be charged directly from your account.
1.Are your company a trading one or a factory ?
Factory + trade (integration),10 years focusing on test instruments field,3 years exporting experience.
OEM is also acceptable for us.
2.How to choose the most suitable products?
Our professional team will give you the best suggestion as long as you tell us what kind of test you
need to do and the required specification.
3.What’s the delivery term?
At most of time, we have stock in the factory. If there is no stock, normally, the delivery time is 15-20
working days after deposit receipt. If you are in urgent need, we can consider making special
arrangement for you.
4.Do you accept customization service?
Yes, of course, we can not only offer standard machines, but also customized machines according to
your request. Don’t hesitate to tell us your requirement, we will try our best to meet your needs.
5.Can we visit your factory before order?
Yes, we warmly welcome and sincerely invite you or your team to visit our factory, we will help to
arrange hotel and pick up you from airport.
6.Do you have customers of our country before?
Now our testing machines have been sold to more than 26 countries, like USA, Canada, Russia,UK,
Italy, Germany, European Union, India, Pakistan, Philippines, Singapore, Thailand and Vietnam,Iran,
Brazil and so on.
7.How about your warranty?
Generally, our warranty is one year. Within the warranty period, we can offer technique support and
part parts change, necessarily, our engineers may go to your place for better service.
8.How about the packing for machine, is it safely protected during transportation?
Our machine is packed by standard export wooden box, it won’t be damaged. We’ve delivered many
testing machines abroad by sea or by air without damage.
9.What is the order process?
Inquiry - quotation - communication - order confirming - deposit payment - production - testing and
debugging - balance payment - packing - delivery - customer receiving - after service.
10.How to install and use the product
The product is shipped with an operating instructions and video of English version.
