Home > Products > IEC test Probes > IEC60529 IEC61032 ip4x accessibility test 1.0mm test probe pin IP4X Test Pin
IEC60529 IEC61032 ip4x accessibility test 1.0mm test probe pin IP4X Test Pin
- 150 Piece / Pieces per Month
- shenzhen china
- T/T Credit Card
You May Like
Product Details
| Brand Name | BONAD | Model Number | BND-D |
Packed with Aluminum Foil box +carton box
Product Description
IEC60529 IEC61032 ip4x accessibility test 1.0mm test probe pin IP4X Test Pin
IEC60529 IEC61032 ip4x accessibility test 1.0mm Test Pin
Article NO.,BND-D
Basic Introduction:
1,According to: IEC61032:1997/IEC60529:2001 AND UL
2,P4X Test Probe D ( Test Probe D) is necessary appliance for household and similar electrical appliance of against electric shock protection test.
Technical parameters
1, Test Probe Length :100mm
2, Test Probe Diameter:1.0mm
3,Dam- sphere Diameter:35mm
4,Handle Diameter:10mm
5,Handle Length 100mm
6, According to IEC61032 figure 4 (the Test probe D), table 6 GB/T4208-2008 (the first characteristic digital 4/5/6)
Dynamometer:
BND-1150 type:10N-50N
BND-1175 type: 10N-75N
Application:
1, Standard test refers to the joint part can't touch the live parts or close to the dangerous parts, 30mm circular baffle can not be enter .
2,In the test requirement for preventing access to the hazardous parts, Test Probe D need to be with thrust 1±0.1N

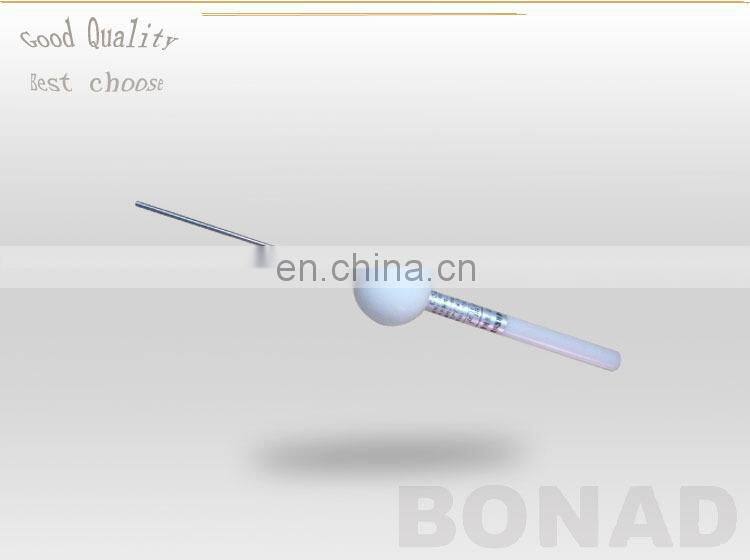

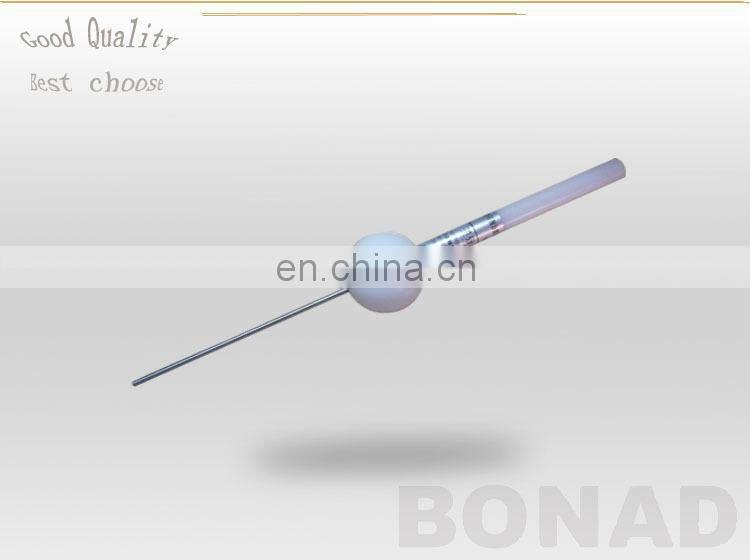

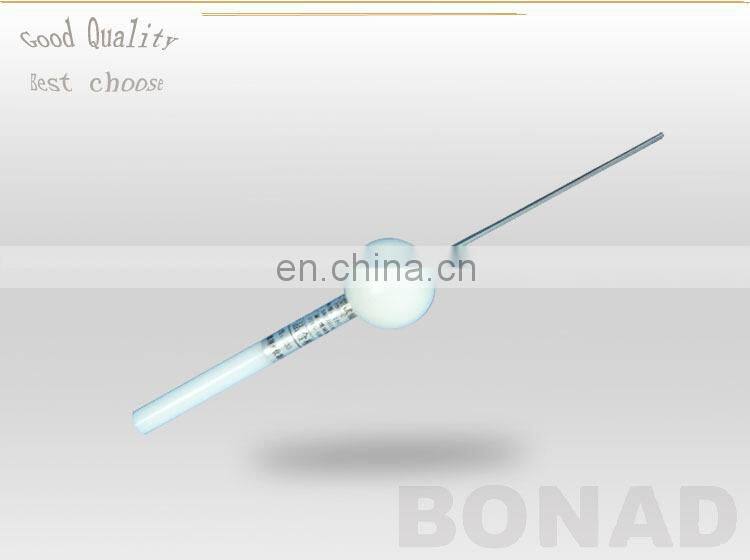

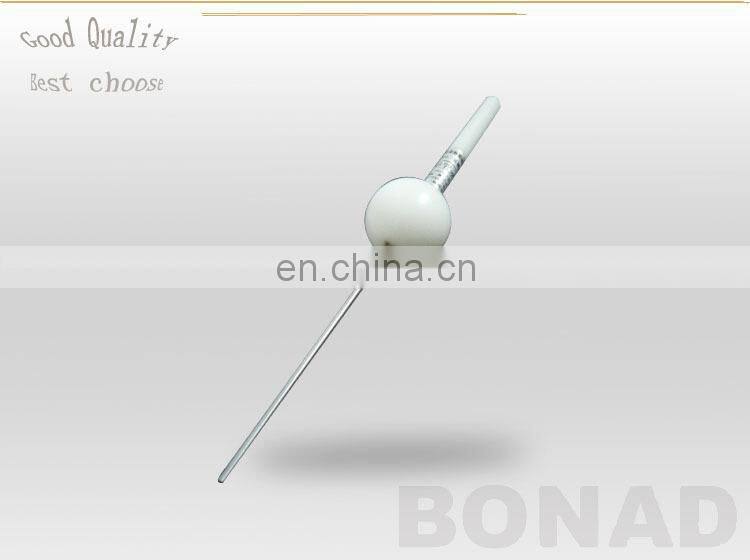

Produce Pictures:
