Multipara monitor /Multifunctional patient monitor

Package: 1 set Size and weight: 41 * 29 * 36cm, net weight 4.5kg, gross weight 6.5kg

vital signs monitor

1、 Application scope

1. Suitable for monitoring adult, child, and newborn patients.

2. Widely used in internal medicine, surgery, operating rooms, obstetrics and gynecology, and pediatrics, with an operating room model.

2、 Display

1. Screen size: No less than 12 inch color LED screen, with a high color resolution of 800 * 600, and 9-channel waveform display.

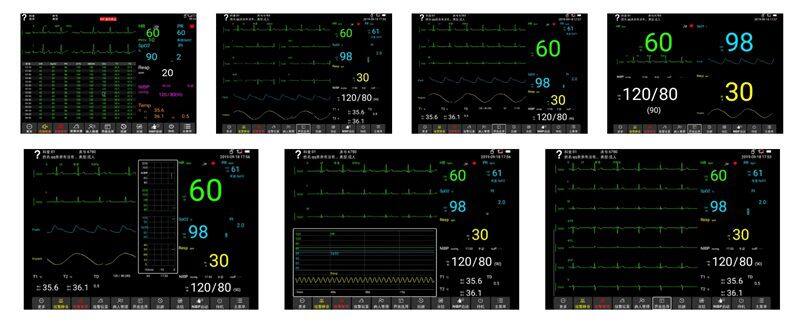

2. Interface selection: With at least 7 display interfaces, including standard interface, large font interface, respiratory oxygenation interface, NIBP review interface, full screen 7-lead interface, half screen 7-lead interface, dynamic short trend interface, etc.

3、 Parameters

1. Standard features: ECG, RESP, NIBP, SpO2, PI, PR, and dual channel body temperature (TEMP)

2. Heart rate range: 30bpm-300bmp.

3. Heart rate measurement accuracy: not greater than 1 bpm or ± 1%, whichever is greater.

4. The common mode suppression ratio of monitoring/surgical mode shall not be less than 110dB.

6. Electrocardiogram has five waveform gains, 2.5mm/mV, 5.0mm/mV, 10mm/mV, 20mm/mV, automatic.

7. Respiratory measurement range: 10-120brpm, measurement error is ± 2bpm or ± 2%, whichever is greater.

8. Blood pressure measurement range: systolic blood pressure: 40-270 mmHg; Diastolic blood pressure: 10-220 mmHg; Equipped with manual/automatic/continuous measurement modes.

9. Blood oxygen measurement range: 40% -100%, with an accuracy of 2% within the range of 70% -100%.

4、 System functions

1. Equipped with standby function, temporarily stopping all monitoring operations to save power consumption. Exiting this state allows for immediate monitoring. Featuring demonstration mode, privacy mode, and night mode.

2. Data Storage: Equipped with 1000 hour trend charts, 200 alarm events, 2000 sets of NIBP measurement data storage and review functions, 120 minute dynamic short trend, and 48 hour holographic waveform review.

3. It has three different levels of physiological and technical alarms: high, medium, and low, and provides prompt information.

4. Equipped with centralized alarm setting function, with adjustable parameter alarm levels.

5. Supports 3-channel recorders.

6. Equipped with wired networking, wireless networking, and power networking functions that do not require wiring, it can connect all beds in the same department with stable and reliable signals.

7. The whole machine is designed without a fan, reducing environmental noise interference.

8. Equipped with nurse call function and log export function.

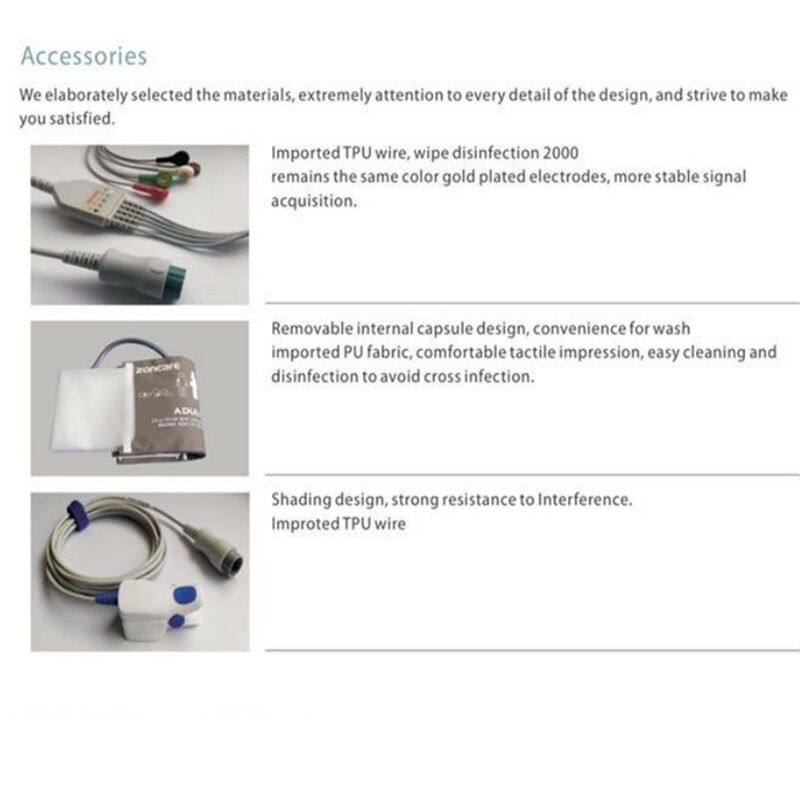

9. The ECG, blood pressure, and blood oxygen accessories are designed with high-end materials, and the lead wires are uniformly made of TPU material. The ECG electrodes are designed with gold plating.
