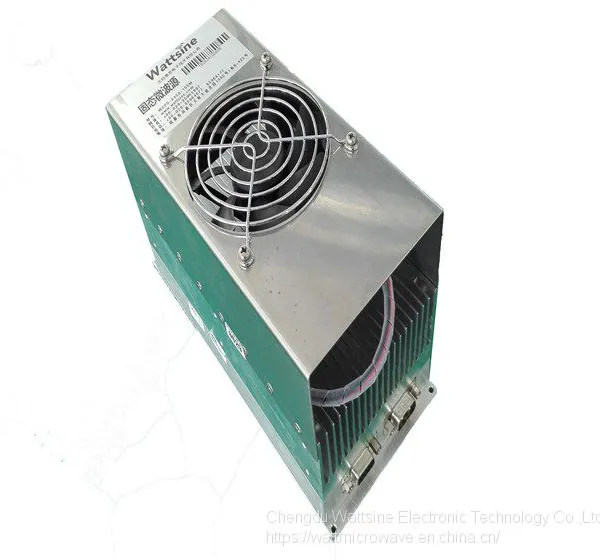

2450mhz-200w microwave amplifier module

WSPS-2450-200 Solid-state Microwave generator is exclusively designed for ISM applications. The module is designed with all solid-state microwave power devices. The maximum output power of the module is 200W and the power is adjustable. The module is designed with PLL phase-lock loop, ensuring high frequency stability. With built-in circulator and load, the module can be adapted to various load with different SWR. The module is also designed with comprehensive protection function, so that the users can observe and control the module during the operation.

Technical parameters Item Min. Typ. Max. Unit Frequency 2450 MHz Frequency Stability 50 ppm MW leakage 2 mW/cm² Power Stability 1 3 % Output Power 1 200 W Output Power Adjustment 1 W VSWR 1.2 Harmonic -40 dBc Stray -60 dBc Operation temperature 5 40 ℃ Overall efficiency 70 % Overall power 300 w Cooling way Forced Air

Pulse parameters(value-added function) Item Min. Typ. Max. Unit Rise time 500 nS Fall time 500 nS Pulse duration 10 1000 uS Duty cycle 5 90 % Note：pulse trigger way：external trigger，TTL level

Work mode CW Pulse CW and Pulse

Control way Remote communication control RS232 Analog voltage controlled

Working Condition Ambient temperature：0℃-40℃ Relative humidity：≤95%（+25℃no condensation） Atmosphere pressure：80kPa-106kPa

Function Control：work status and parameters setting，be available to view work status and set parameters ； Alarm：output power, SWR, current, temperature. Remote check alarm information； Protection：over-VSWR, over-temperature, over-input power、 over-current, over-voltage protection. SSPG will shut down automatically when under protection.

Interface definition Power input（Power）：DC-28V RF output：N-50-KFD Control interface (Operation)：DB9 Air-cooling: Built-in fan with DC-28V/0.5A
