Hot-Sale Industrial Window Ventilating Exhaust Fan for Basement Attic

FOB Price

USD $42 - $48 / Set

1 Set(Min.Order)

Supply Ability 1000 Set / Sets per Month
Port Shenzhen Yantian
Payment Terms:T/T L/C Credit Card PayPal Cash Escrow Other
Delivery Detail:7 days

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price

Product Details

Brand Name:	Dongguan Minxin Industrial Co., Ltd	Place of Origin:	China	Model Number:	400#
Type:	Ventilation

Product Description

Product Description

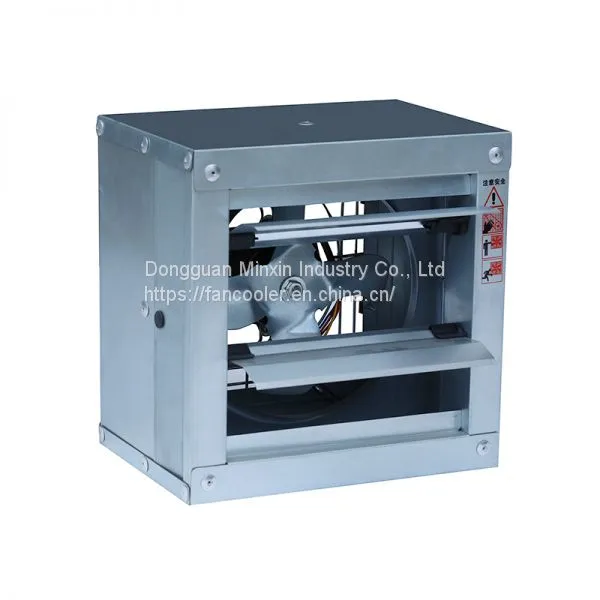

The small exhaust fan is of 400mm or 16inch size, it operates quietly, pulling air in and propel out for natural ventilation by direct-driven motor

Type	Standard	OEM

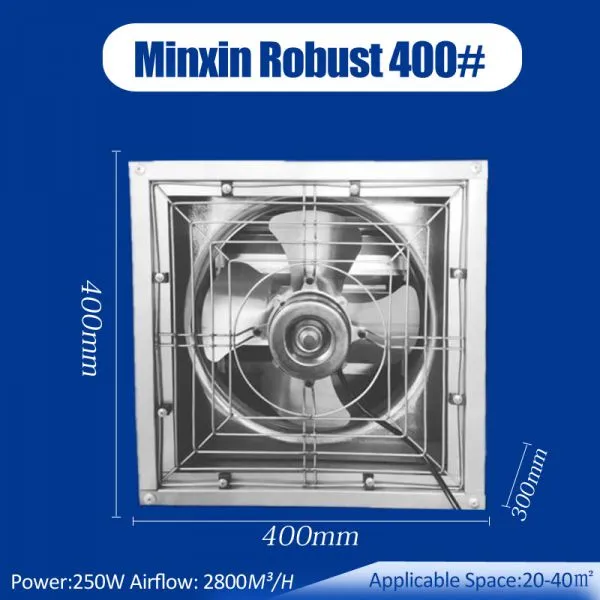

Fan Size	400x400x300mm/ 16” x 16” X12”	Any size
Fan Diameter(inch)	12	12
Fan Color	Silver	Painted or coating in any color
Fan Blade Material	1mm galvanized steel	1.1mm, 1.2mm, or thicker galvanized steel, or fiberglass, or stainless steel, as per customers’ requirements
Fan Frame Material	0.6mm galvanized steel	0.7mm, or higher thickness galvanized steel, fiberglass, or stainless steel

Property	Standard	OEM
Fan Speed	1400rpm	Slower or faster
Air Volume	42 m³/min (2500m³/h, 1500CFM)	Any volume
Wattage	250W	Customized motor (with more copper coil, and more sheet steel or silicone steel)
Voltage	380V(three phase)	Customized, can be 110V or 240V, or other
Noise	less than 55 dB	even less noise
Motor	Direct-Driven	Direct-drive
Louver	Yes, 0.35 ~ 1.5mm galvanized steel	Yes, 0.4mm galvanized steel or higher
Brand	Minxin Industrial	Private labeling
Certifications	CE，CCC	More certifications upon customers’ request, such as UL/CETL, SAA, KV-MARK, GS, L-MARK, SASO, etc.

Details Images

Exhaust Fan Shutter	90° Fully Open Fan Louver
Fan shutters can be fully closed to keep out the rain, dust, pest and light.	The fan louvers can be fully opened to intake the largest amount of fresh air.

Higher Blade Curved Braket higher airflow volumn

Ultra-thick galvanized steel or stainless steel fan blade

Rugged aluminum alloy pulley system for higher durability

One Piece Durable Automatic Bearing

Hign Efficiency Copper Motor

Durable and Heat-Resistant Motor

Size Information

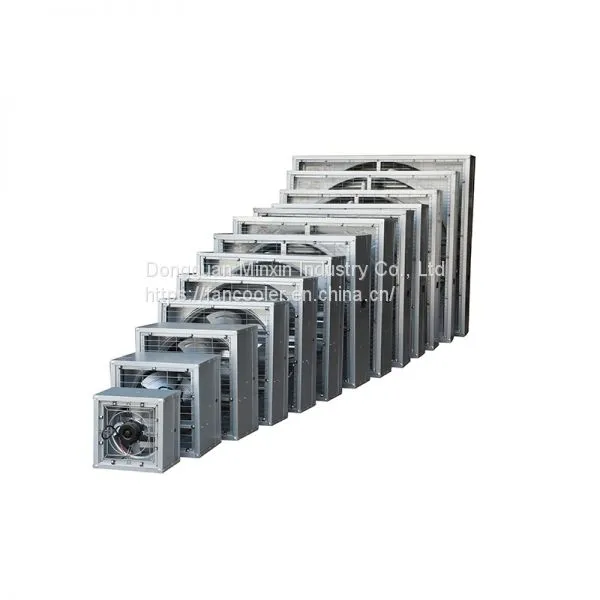

Specifications of Exhaust Fans of All Sizes

Model	Dimensions	Diameter(inch)	Weight(kg)	Air Flow	Power	Workable Areas	Fan Speed	Noise
300#	300x300x200mm/12” x 12”X7.9”	8	5	30 m³/min (2000m³/h, 1200CFM)	150W	5~20㎡	2200rpm	<50db
400#	400x400x300mm/16” x 16”X12”	12	9	42 m³/min (2500m³/h, 1500CFM)	250W	20~40㎡	1400rpm	<55db
500#	500x500x300mm/20” x 20”X12”	16	11	83 m³/min (5000m³/h, 3000CFM)	250W	25~50㎡	1400rpm	<55db
600#	600x60 0x300mm/ 24” x 24” X12”	20	18	133 m³/min (8000m³/h, 4700CFM)	250W	50~60㎡	960rpm	<55db
700#	700x70 0x300mm/ 28” x 28” X12”	24	22	166 m³/min (10000m³/h, 6000CFM)	250W	60~70㎡	960rpm	<60db
800#	800x800x300mm/32” x 32”X12”	26	28	216 m³/min (13000m³/h, 7650CFM)	250W	70~80㎡	960rpm	<60db
800#-Belt-Driven	800x800x350mm/32” x 32”X14”	26	30	367 m³/min (22000m³/h, 13000CFM)	370W	70~80㎡	450rpm	<60db
900#	900x900x350mm/36” x 36”X14”	31	35	450 m³/min (27000m³/h, 16000CFM)	370W	80~90㎡	450rpm	<55db
1000#	1000x100 0x350mm/ 39” x 39” X14”	31	38	500 m³/min (30000m³/h, 17650CFM)	550W	90~100㎡	450rpm	<60db
1060#	1060x106 0x350mm/ 42” x 42” X14”	39	42	533 m³/min (32000m³/h, 19000CFM)	550W	100~120㎡	450rpm	<60db
1100#	1100x110 0x350mm/ 43” x 43” X14”	39	45	566 m³/min (34000m³/h, 20000CFM)	550W	110~130㎡	450rpm	<60db
1220#	1220x122 0x350mm/ 48” x 48” X14”	44	55	616 m³/min (37000m³/h, 22000CFM)	750W	120~140㎡	450rpm	<60db
1380#	1380x138 0x350mm/ 54” x 54” X14”	50	65	742m³/min (44500m³/h, 26000CFM)	1100W	140~160㎡	450rpm	<65db
1530#	1530x153 0x400mm/ 60” x 60”X16”	56	75	928m³/min (55700m³/h, 32800CFM)	1500W	160~200㎡	450rpm	<70db

Packing&Shipping

The exhaust fans can either be shipped in unassebled way to save space and shipping cost, or shipping the assembled exhaust fans to save trouble and time.

Unassembled Exhaust Fan Parts Assembled Exhaust Fans

The unassembled fan parts can be shipped to customers for assembly, it will help to save shipping cost.

The assembled exhaust fans can be sent to customers for immediate installation.

After Sales Service

One Year Warranty, Lifetime Aftersale Service

We offer 1 year warranty on the motors and the entire fan, and we will provide free spare parts for any defective models within the warranty period.

Company Introduction

MINXIN INDUSTRIAL is well known for its most complete production line for industrial exhaust fans, evaporative air conditioners, and mobile air coolers.

Our Services & Strength

Minxin Industrial was founded in 2015, since then Minxin has been specialized in manufacturing industrial exhaust fans and
evaporative air coolers of all sizes, such as:
1. Minxin Belt drive ventilating exhaust fans
2. Minxin Direct drive ventilating exhaust fans
3. Yihoo Water-cooling evaporative air conditioner
4. Yihoo Mobile evaporative air cooler

Our Production Lines

Supporting 120 employees, our 20,000 square meter factory is top-notch, Minxin Industrial equipped itself with all the production equipment processes in house for better control of the quality and delivery time:

1. Steel Coil Sliding and Cutting line, Steel Pipe Cutting Line

2. Aluminum Die Cast Tooling & Casting

3. Plastic Molding & Injection Workshop

4. Metal Stamping & Laser Cutting

5. Motor Copper Coil Winding Line

6. Motor Assembly Workshop

7. Exhaust Fan Assembly Workshop

8. Water Air Cooler Assembly Workshop

Steel coil sliding and cutting line, steel pipe cutting line

Aluminum Die Cast Tooling & Casting

Plastic Molding & Injection workshop

Motor Copper Coil Winding Line

Motor Assembly Workshop

Stamping Workshop

Wire Guard Welding

Fan Parts CNC Machining

Laser Cutting
