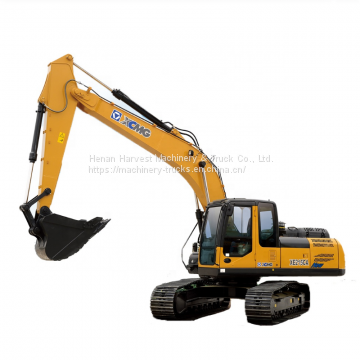

XCMG XE215C crawler excavator Chinese factory supplier 21ton Excavator

Bucket capacity

m³

0.8-10

Engine

Engine model

/

ISU BB-68G1TRP

Direct injection

/

√

4×Strokes

/

√

Water cooling

/

√

Turbocharging

/

√

Cylinders

/

6

Output power of engine

Kw/rpm

106.5/1950

Max.torque/engine

N.m/rpm

551/1600

Displacement

L

6.494

Mian pertormance

Travel speed

km/h

5.5/3.3

Slewing speed

r/min

13.3

Gradient capability

°

≤35°

Ground pressure

kPa

45.5

Digging capacity of tcuket

kN

138

Digging capacity of tcuket rod

kN

103

Max.traction

kN

184

Hydraulic system

Main pump

/

Tow plunger pumps

Rated flow of main pump

L/min

2×206

Pressure of main safety valve

Mpa

31.5/34.3

Pressure of traveling system

Mpa

34.3

Pressure of swing system

Mpa

28

Pressure of pilot system

Mpa

3.9

Oil volume

Fuel tank capacity

L

360

Hydraulic tank capacity

L

220

Engine oil volum

L

25

Apperance size

A Total length

mm

9525

B Total width

mm

2990

C Total heigth

mm

3000

D Width of rotary table

mm

2710

E Length of track

mm

4270

F Total width of chassis

mm

2990

G Width of track

mm

600

H Wheelbase of track

mm

3462

I Track gauge

mm

2390

J Counterweight ground clearance

mm

4050

K Min.ground clearance

mm

470

L Min.tail swing radius

mm

2750

Working scope

A Max.digging height

mm

9640

B Max.unloading height

mm

6800

C Max.digging depth

mm

6655

D Digging depth at the range of 8feets horizontally

mm

6470

E Max.vertical digging depth

mm

5695

F Max.digging radius

mm

9925

G Max.swing height

mm

3530

Standard configuration

Boom length

mm

5680

Length of bucket rod

mm

2910

Bucket capacity

m³

0.93

Optional counfiguration

Length of bucket rod

mm

2530

Bucket capacity

m³

1.0Earthmoving bucket

0.8Rock bucket
