Product Details

Brand Name:	MIA	Place of Origin:	China	Model Number:	MIA-AHE150N
Certification:	CE, ROHS	Voltage (V):	220	Power (W):	285
Installation:	Other, Ceiling Easy Installation

Product Description

Overview

Quick Details

Warranty:
More than 5 Years

After-sale Service:
Online Technical Support

Project Solution Capability:
Graphic Design

Place of Origin:
Jiangsu, China

Brand Name:
MIA

Model Number:
MIA-AHE150N

Air Flow:
1500CMH

Voltage:
220V

Power:
285W

Heat recovery Rate:
85%-88%

Noise:
44dB(A)

Tuyere Diameter:
200mm

Weight:
53.5kg

Pressure:
175Pa

Size:
1143*809*342mm

Casing Material:
SGCC

Supply Ability

Supply Ability:
8000 Set/Sets per Month

Packaging & Delivery

Packaging Details
Carton + Wooden box

Port
Shanghai port, Ningbo port, Shenzhen Port

Picture Example:

Lead Time :
Quantity(Sets) 1 - 10 >10
Est. Time(days) 10 To be negotiated

Product Details

Model	MIA-AHE150JDN/MIA-AHE150GL/MIA-AHE150N
Voltage	AC 220~240V
Power	298W/298W/285W
Supply Air Flow	1500CMH
Exhaust Air flow	1500CMH
External Static Pressure	175Pa
Efficiency	85%~88%
Noise (SPL@1m)	44dB(A)

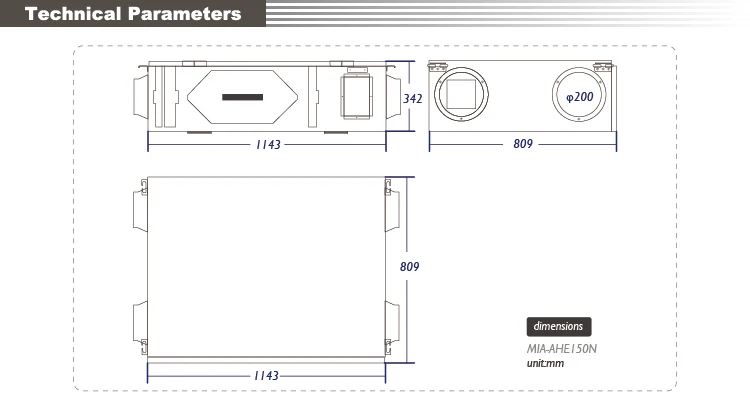

External Dimensions	1143809342mm
Φd	200mm
Weight	53.3kg

MIA-A900

Three Speed Control +temperature and humidity display +time setting +PM2.5 display +CO2 display +APP control

MIA-6G

Three Speed Control +temperature and humidity display +time setting
+PM2.5 display
+CO2 display
+APP control

MIA-ES900

Three Speed Control +temperature and hum display +time setting
+PM2.5 display
+APP control

Inside Setting

Energy Recovery Exchanger Core

The PSY high thermal conductivity of molecular material, developed by Japanese DR team, has high heat recovery efficiency. It can infiltrate water molecules in the process of heat exchange; with the washable material, also can avoid the problem of bacteria and molds production.

Early Effect + Activated Carbon

The filter with composite fiber,sprayed with activated carbon powder, can ilter dust particle efficiently and the wind resistance is very small. This washable filter can be used repeatedly, greatly reduces the total cost of consumables.

High Efficiency H13 Hepa Filter (Optional)

The filter element that we use is 3M HEPA, meeting the European standard-Hl3, and the PM2.5 removal rate can be up to 99.97%, this large dust holding capacity helps to save the total cost.

High-voltage Electrostatic Dust Collection (Optional)

The removal rate of PM2.5 is highly to 98%, so that can effectively kill the bacteria and prevent the infection. lt's washable, also can becleaned with brush, and will not increase the using cost.

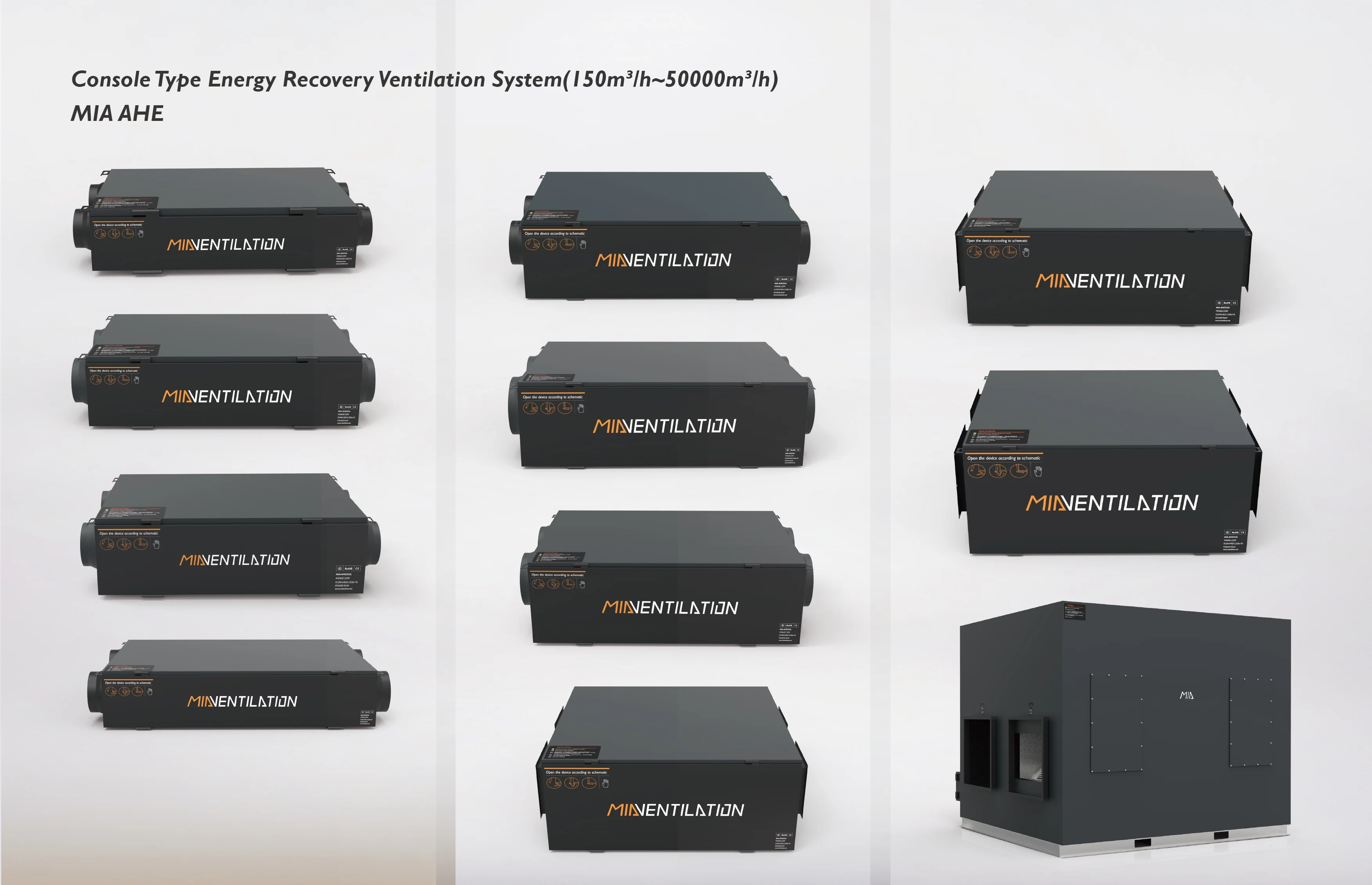

Product ranges

Model	Voltage	Power	Volume	Pressure	Efficiency	Noise	Diameter	Weight
MIA-AHE15N	220V	70W	150m3/h	115Pa	88%~96%	26dB(A)	120mm	19.5kg
MIA-AHE25N	220V	78W	250m3/h	132Pa	87%~95%	28dB(A)	150mm	26.5kg
MIA-AHE35N	220V	88W	350m3/h	140Pa	86%~94%	29dB(A)	150mm	31.5kg
MIA-AHE50N	220V	120W	500m3/h	160Pa	86%~94%	30dB(A)	200mm	45kg
MIA-AHE80N	220V	180W	800m3/h	160Pa	86%~91%	36dB(A)	200mm	52kg
MIA-AHE100N	220V	260W	1000m3/h	170Pa	86%~91%	36dB(A)	200mm	52kg
MIA-AHE130N	220V	265W	1300m3/h	170Pa	87%~91%	38dB(A)	200mm	53kg
MIA-AHE150N	220V	285W	1500m3/h	175Pa	85%~88%	44dB(A)	200mm	53.5kg
MIA-AHE170N	220V	310W	1700m3/h	180Pa	86%~88%	46dB(A)	250mm	63kg
MIA-AHE200N	220V	330W	2000m3/h	205Pa	85%~90%	48dB(A)	250mm	63kg

Selection Guide

In a room. area: S=65(m3), height: h=3(m), member: = 25 (people). calculated by the fresh air volume everyone needs,[the air volume everyone need: q=30(m3/h)]. so the total fresh air volume QI=n*q= 25*30=750(m3/h). If calculated by the fresh air changes rate, (the fresh air change rate P=4]. so the fresh air Q2=p*s*h=4*65*3= 780(m3/h);      Due to Q2>Ql. so here we take Q2 for the reference;      Combine with the products type, here we suggest MIA-AHE80N Energy Recovery Ventilation.

Select the diferent installation forms of air ventilation according to the characteristic of the bulding structure. Confirm the appropriate air volume according to the house' s use, area and containing people. Select the ventilation' s spedfication and amounts according to the confimed fesh air valume.
