Product Details
| Brand Name: | YUSHUNLI | Place of Origin: | China | Model Number: | EX-H |
Product Description

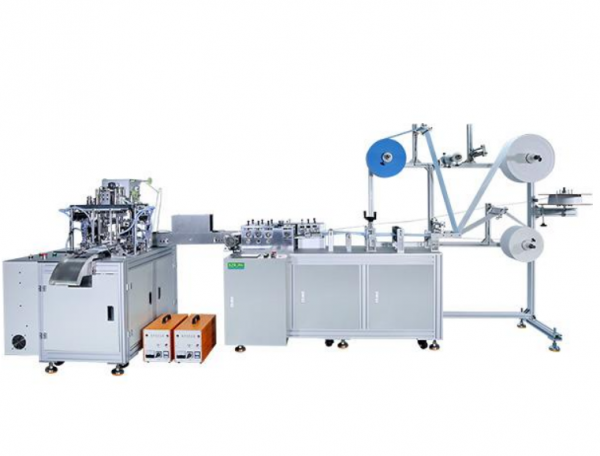

One Drag One Servo High Speed Plane Mask Machine Production Line
Description :

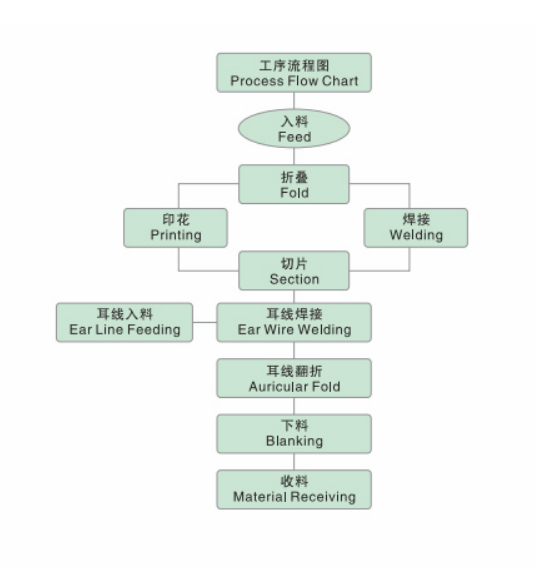

The machine is used for automatic forming of flat face mask:the whole roll of raw material is transported out through the assembly line through unwinding,roller driving,edge folding,edge wrapping,fixed length cutting,forming,sealing,cutting,ear welding and other processes.The whole process is fully automatic.The automatic flat mask production equipment has the characteristics of stable performance,high output,low defect rate and easy operation.
Machine Features:
♦ Full automatic servo production;
♦ Compatible with 2-4 layers of products;
♦ High maturity, high degree of automation;
♦ High efficiency of finished products,solid and beautiful ear band walding, strong tension,full function;
♦ The equipment operates stably and continuously for a long time.
Capacity Efficiency:
♦ Stable Production Efficiency 65~80 pieces/Min
♦ Stable Production Efficiency: 4000~4800Pieces of flat masks/Hour
Technical Parameters:
| Model | EX-H |
| Mask Size | 175*95 |
| Capacity | ＞4000PCS/H |
| Working Voltage | 220VAC±5,50HZ |
| Power | 3.5KW |
| Weight | 602kg |
| Air Source | 200L/MIN |
| Equipment Size | 3900*1500*2400 |
| Color | Computer white |
Raw Material :
| Name | Number | Outer Diameter*Inner Diameter |
| Cloth (melt blown,PP non-woven) | 3Volumes | 600*76mm |
| Bridge of nose | 1Volumes | 400*76mm |
| Ear band | 4Volumes | Width 3mm |

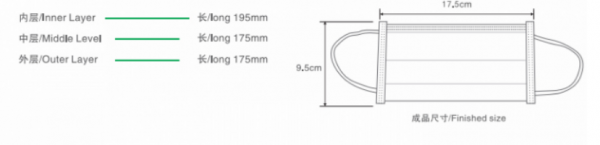

The recommended width information is as follow
