JRC JLR-4341 (DGPS 224) DGPS Receiver

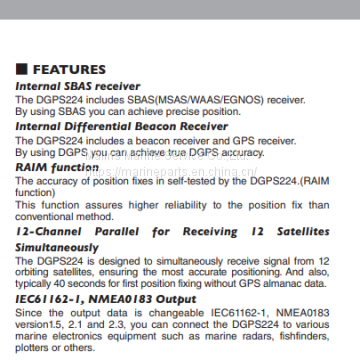

Features:

·         Internal Differential Beacon Receiver

·         Capable of SBAS (WAAS/EGNOS/MSAS) correction

·         RAIM function is available

·         12-Channel Parallel for simultaneous reception of 12 satellites

·         IEC61162-1, NMEA0183 Output

Internal SBAS receiver

The DGPS224 includes SBAS(MSAS/WAAS/EGNOS) receiver.
By using SBAS you can achieve precise position.

Internal Differential Beacon Receiver

The DGPS224 includes a beacon receiver and GPS receiver.
By using DGPS you can achieve true DGPS accuracy.

RAIM function

The accuracy of position fixes in self-tested by the DGPS224.(RAIM function)
This function assures higher reliability to the position fix than conventional method.

12-Channel Parallel for Receiving 12 Satellites Simultaneously

The DGPS224 is designed to simultaneously receive signal from 12 orbiting satellites, ensuring the most accurate positioning. And also, typically 40 seconds for first position fixing without GPS almanac data.

IEC61162-1, NMEA0183 Output

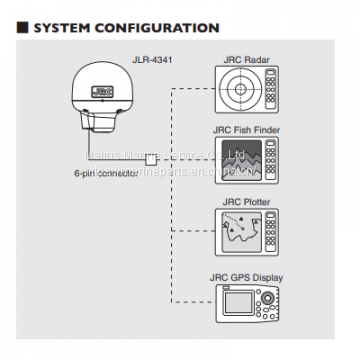

Since the output data is changeable IEC61162-1, NMEA0183 version1.5, 2.1 and 2.3, you can connect the DGPS224 to various marine electronics equipment such as marine radars, fishfinders, plotters or others.

Please send email to us for more details:
