Home > Products > RE Series > Crossed roller slewing rings made in china RE4510 with size 45X70X10mm

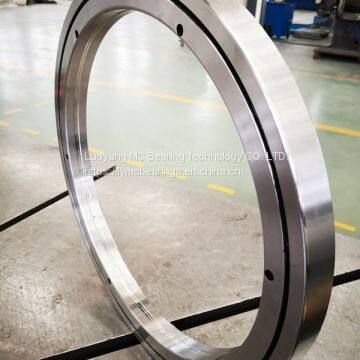

Crossed roller slewing rings made in china RE4510 with size 45X70X10mm
USD $20 - $50
/ Piece
1 Piece(Min.Order)
- 100 Piece / Pieces per Month
- Shanghai,Qingdao
- T/T Other
- 3 days
You May Like
-
Crossed roller slewing rings made in china RE3510 with size 35X60X10mm
-
Crossed roller slewing rings made in china RE8016 with size 80X120X16mm
-
Crossed roller slewing rings made in china RE11012 with size 110X135X12mm
-
Crossed roller slewing rings made in china RE10020 with size 100X150X20mm
-
Crossed roller slewing rings made in china RE3010 with size 30X55X10mm
-
Crossed roller slewing rings made in china RE4010 with size 40X65X10mm
Product Details
| Brand Name | LYMC | Place of Origin | China | |
| Model Number | RE 4510 | Number of Row | Single Row | |
| Seals Type | open | Precision Rating | P4,P5,P2 | |
| Outside Diameter | 45, 70 | Bore Size | , |
Product Description
Crossed Roller Bearing RE4510 with size 45X70X10mm information:
The outer ring diameter:70mm
The inner ring diameter:45mm
The thickness diameter:10mm
dynamic load rating C (Kn):8.62
Static load ratingCo(Kn):11.3
Weight:0.17kg
Seals type:double seals
Precision rating:P2 P4 P5
Material:Steel GCr15
Package:wooden box
Delivery Time: 3 days in stock
RE CROSS ROLLER BEARING SERIES FEATURE:
Since the mounting holes are provided, this model does not require a presser flange or housing .In addition because it has an integrated inner/outer ring structure and is equipped with washers ,its performance is minimally affected by the mounting procedure,ensuring stable rotation accuracy and torque.This model can be used for both inner-ring rotation and outer-ring rotation.
High quality cross roller bearing
With the cross roller bearing ,cylindrical roller are arranged crosswise ,with each roller perpendicular to the adjacent roller ,in a 90°groove ,separated from each other by a spacer retainer .this design allows just one bearing to receive loads in all directions including ,radial,axial,and moment loads. Since the cross-roller ring achieves high rigidity and the precision can reach up P5 P4 P2,despite the minimum possible dimensions of the inner and outer rings,it is optimal for applications such as joints and swiveling units of industrial robots,swiveling table of machining centers .precision rotary tables,medical equipment,measuring instruments and IC manufacturing machines.
If you interesting the type cross roller slewing bearing RE4510 with size 45X70X10mm,welcome inquiry me freely.
