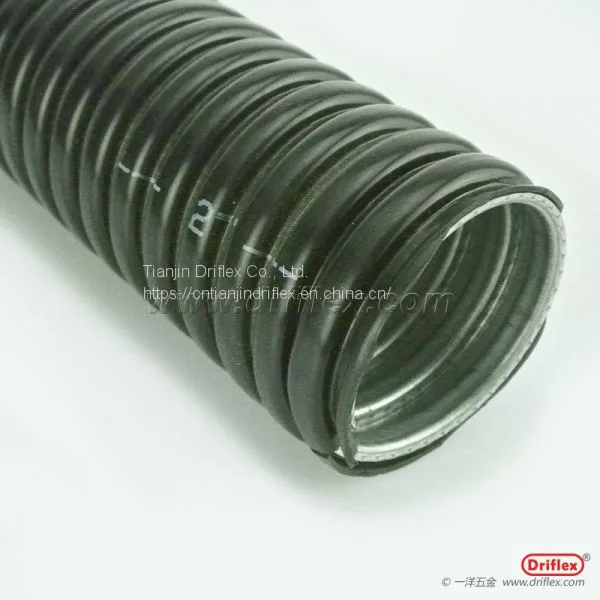

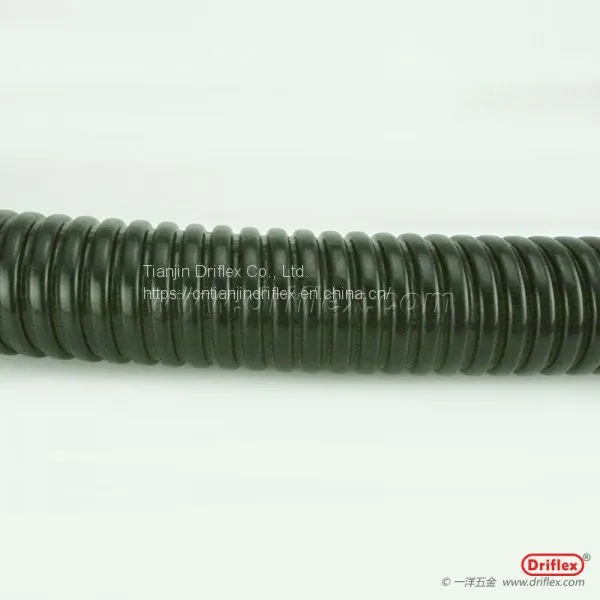

11/2 INCH LOW FIRE ZERO HALOGEN FLEXIBLE METAL CONDUIT

Name: 11/2 INCH LOW FIRE ZERO HALOGEN FLEXIBLE METAL CONDUIT
Brand: Driflex
Availability: InStock

FOB Price

USD $2.23 - $2.39 / Meter

200 Meters(Min.Order)

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price

Product Details

Brand Name:	Driflex	Place of Origin:	China	Model Number:	LFH-15S
Material:	Steel	Type:	Flexible

Features:

Galvanized steel core, Plastic jacketed.
Light weight style, excellant flexibility and low fire hazard low smoke.
Use for the place with poor ventilation or the environment needs more secure care or any narrow space for electrical wiring application.
Temperature range from -10^oC to +90^oC

Applications:

Specifications:

Part No	Nominal Size ISO (mm)	Nominal Size US (inches)	I.D. (mm)	O.D. (mm)	Min. Bend Radius (mm)	Length (M/coil)
LFH-10	16	3/8"	12.3 - 12.6	16.5 - 16.8	60	50
LFH-11	20	1/2"	15.7 - 16.0	20.5 - 20.8	85	50
LFH-12	25	3/4"	19.7 - 20.0	25.3 - 25.6	100	50
LFH-13	32	1"	25.3 - 25.8	30.7 - 31.2	120	50
LFH-14	40	1-1/4"	32.3 - 32.8	38.5- 39.0	150	25
LFH-15	50	1-1/2"	38.30 - 38.8	45.7 - 46.2	180	25
LFH-16	63	2"	50.0 - 50.5	58.8 - 59.3	220	20
LFH-17	75	2-1/2"	62.5 - 63.2	73.5 - 74.0	310	10
LFH-18	90	3"	73.0 - 73.7	84.5 - 85.2	350	10
LFH-19	100	4"	97.50 - 98.5	109.5 - 110.5	410	5
