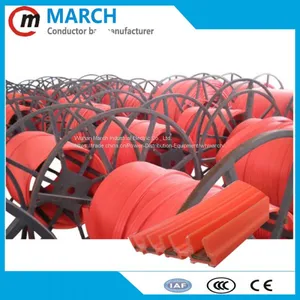

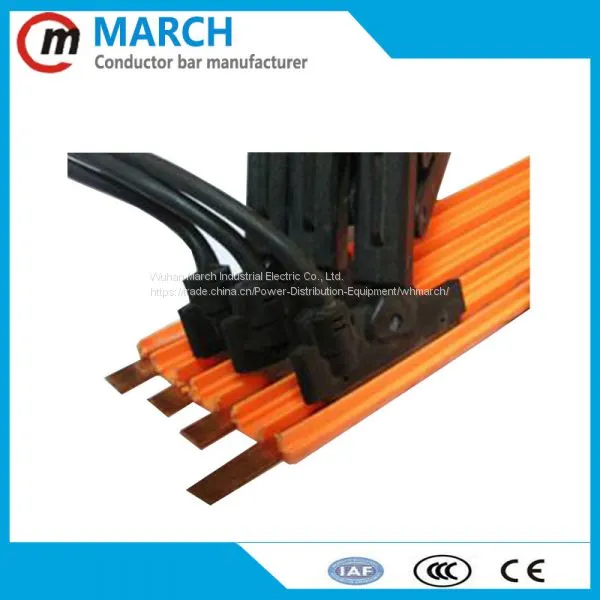

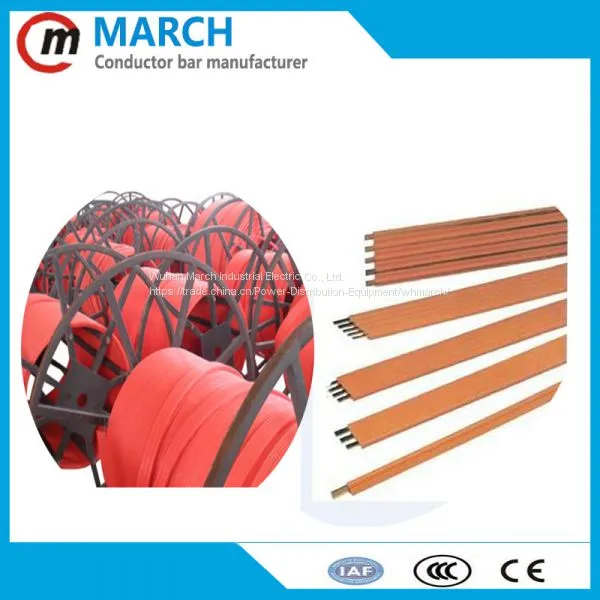

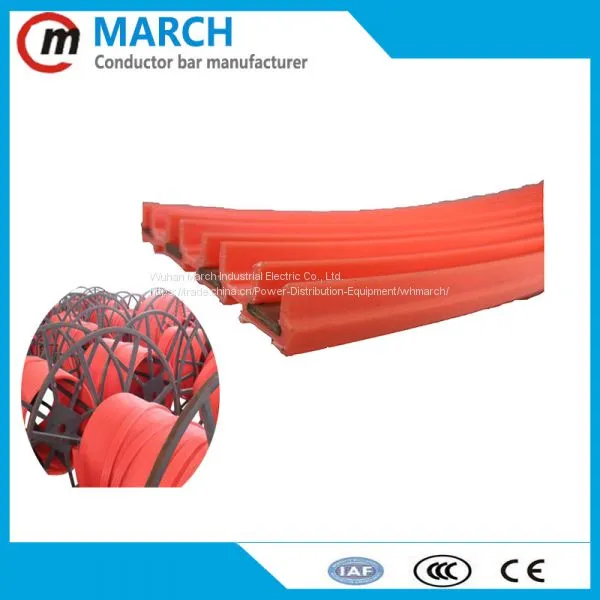

seamless safety power system cable system

Name: seamless safety power system cable system
Brand: march
Availability: InStock

FOB Price

USD $2.69 - $15.69 / Meter

100 Meters(Min.Order)

Supply Ability 10000 Meter / Meters per Month
Port Wuhan
Payment Terms:T/T L/C D/P D/A Credit Card Other Cash
Delivery Detail:7 days

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price

Product Details

Brand Name:

march

Place of Origin:

China

Model Number:

WJF

Product Description

seamless safety power system cable system

Feature:

1)Conductor is oxygen-free copper, perfect conductivity, pure quality, well-proportioned and bright color
2) Insulated material is PVC, adding the speciality of shock-resistance and ultraviolet ray-resistance fine physical property
3)The copper and plastics are connected closely, no problem of bad contact because of shaking
4)No joint, few parts, snap-in form, easy to install, saving 2/3 time of installation

Advantage:

1) safe, stable, no joint (expect for line feed)
2) small size ,easy to install ,economical
3) good insulation and impact fixed with PVC housing
4) suitable for curve rail electric hoist
5) PVC housing ,impact resistance , ultraviolet resistance
6) used in low frequency operation and good working condition

Technical Data:

4P Body(indoor only)

Type	Poles	Conductor cross section(mm2)	Max.Current (A)	Max.Current (A)	Order-No.
WJF-4-10/50A	4	4*10	50	35	224001
WJF-4-15/80A	4	315+110	80	35	224004
WJF-4-20/100A	4	320+110	100	35	224005
WJF-4-25/120A	4	325+112.5	120	35	224006
WJF-4-35/140A	4	335+115	140	33	224007

3P Body(indoor only)

Type	Poles	Conductor cross section (mm2)	Max. Current (A)	Order-No.
WJF-3-10/50A	3	3*10	50	223001
WJF-3-15/80A	3	3*15	80	223004
WJF-3-20/100A	3	3*20	100	223005
WJF-3-25/120A	3	3*25	120	223006
WJF-3-35/140A	3	3*35	140	223007

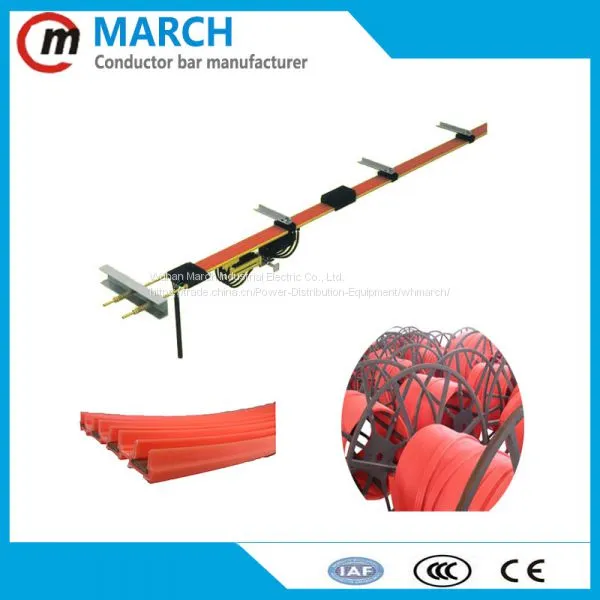

Installation layout & Accessories

Packaging

Conventional Packaging: wooden case or plywood case as your request

Trade Terms

• Payment terms: T/T, Western Union
• Production lead time: 7-15 days according to the order quantity
• Sample lead time: about 1-3 working days,it all depends
• MOQ: 10pcs, any sample order are welcome for testing our quality

Application

The flexible insulated conductor rail is suitable for machinery works ,small size steel factory and low power hoisting equipments (ambient temperature is<55℃)
