Imported High Quality Steel SKH-9 Three Sets Of Blades Shaft Multi-Blade PCB Depaneling Machine

Imported High Quality Steel SKH-9 YSVJ-650B Three Sets Of Blades Shaft Multi-Blade PCB Depaneling Machine

Product description:

YSVJ-650B Three-group multi-blade depaneling macgine can separte the whole board at one time, and can connect the pcb loader & unloader machine to realize unmanned operation. Simple and safe operation, saving many employees. The three sets of knife-axis cutting board method greatly reduces the cutting stress generated when the board is divided, so that the boarding effect is better, no deformation, and no warping.

Three-group multi-blade machine operation process :

Product introduction:

1,YSVJ-650B three-group multi- blades cutting machine, multiple sets of tools run at the same time, split the whole piece at one time, greatly improve production efficiency; multiple sets of tool design ensure that the split plate effect is not deformed, it is effective Control product quality.
2 ,The machine can connected to the pcb loader and unloader machine, can achieve full automation of the board, in the gradual rise of labor costs today, LED light strip board cutting machine to achieve automatic board can save a lot of labor for the enterprise cost.
3,This machine is mainly developed for the production of intermittent products in the LED lighting industry, in order to meet the demanding requirements of the deformation, to achieve the perfect board. This machine is also suitable for copper panels, COB panels and other panels.
4,Vacuum cleaner (optional );

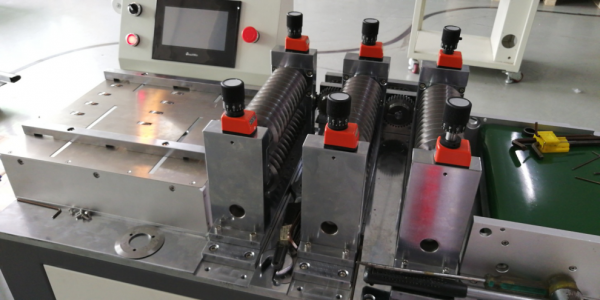

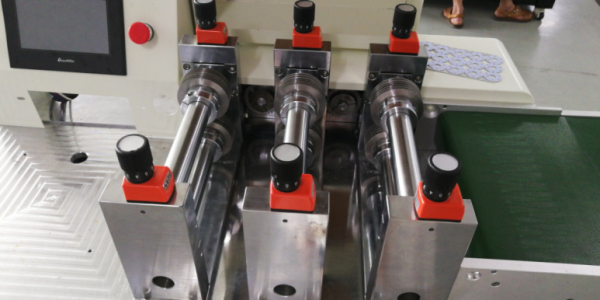

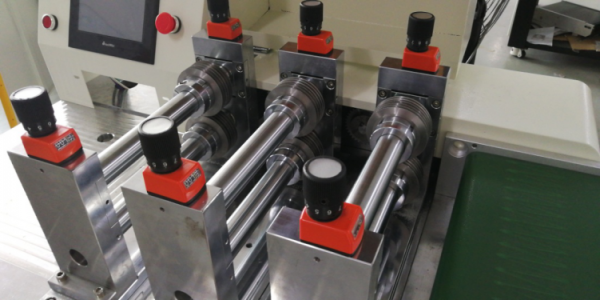

Main structure photo inside the machine :

Features:

1,High positioning accuracy.
2,The small cutting stress.
3,Open the door protection device with high safety performance.
4,Automatic feeding and cutting board, higher efficiency.
5,It can be connected to the pcb loader machine, the unloader machine, more labor-saving.

Blade introduction :

Features:

Blade material: imported high speed steel
The thickness of the blade is 3MM, and the thickness of the blade is 0.2mm;
The spacing width is customized to the width of the PCB.

Remarks: The blade has a service life of 100,000 times and can be repeatedly used for re-grinding. The blade can be turned 2-3 times depending on the situation.

1, Efficient sub-board, extremely labor-saving, daily output can reach more than 100,000 pcs;
2, It’s can connect the loader and unloader machines to achieve online automatic production; ；
3, Perfect control of the deformation of the sub-board, in line with copper plate or COB board with discontinuous products;
4, Simple training can master the operation method; the scale fine-tuning handle adjusts the cutting distance, and it is quick to get started. The ordinary staff can learn through simple training;
5, Safe operation, equipped with door opening protection device to ensure safe production;
6, Unique new blades, the durability is increased by 1.5-2 times;

Technical Parameters:
