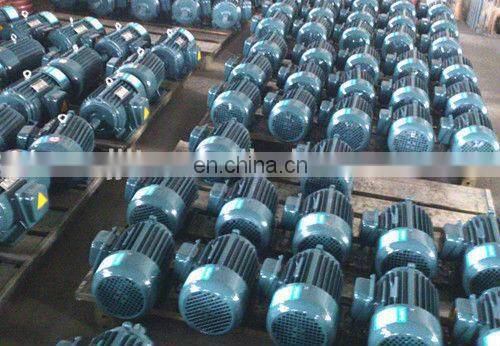

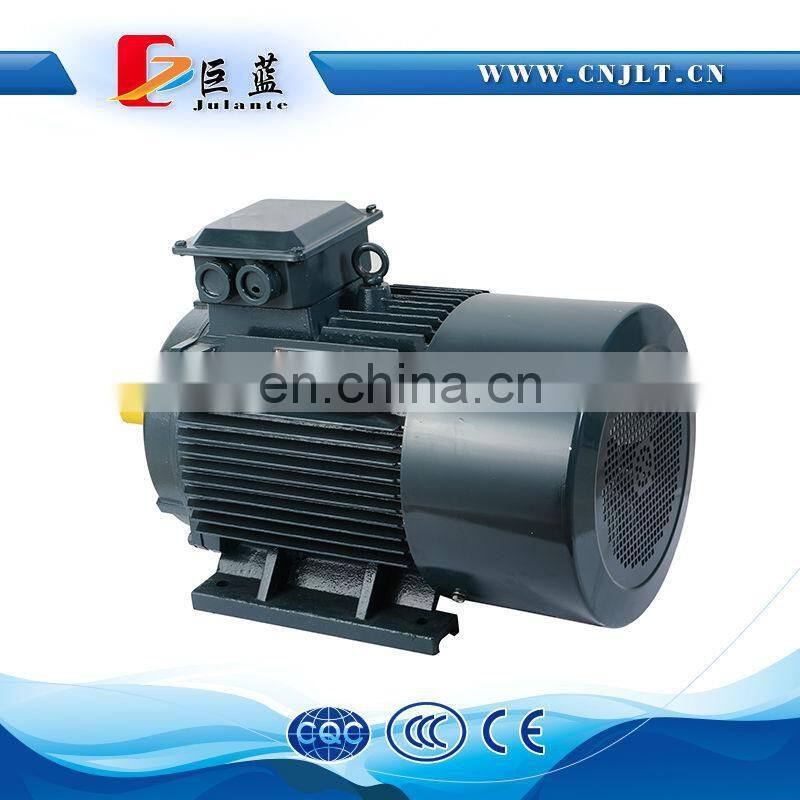

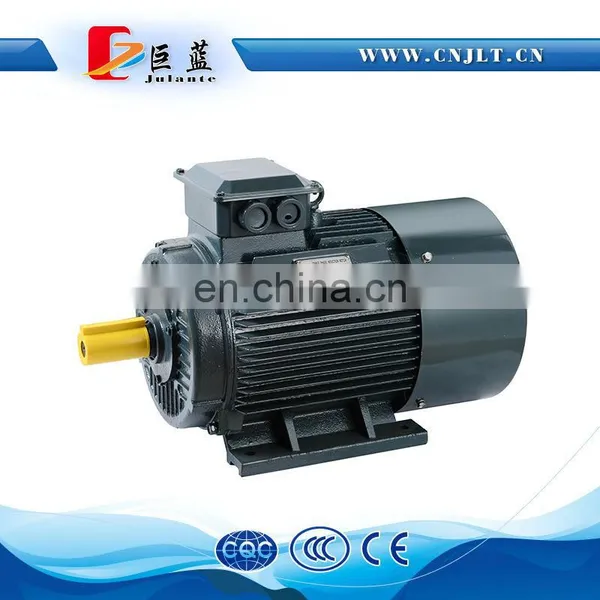

lightweight ac electric motor

lightweight ac electric motor

3) Rated voltage: 380v±5%
4) Frequency: 50Hz /60Hz
5) Protection class: IP44/IP54
6) Insulation class: B or F
7) Materials: cast iron(63-355), aluminum (FRAME 63-160)
8) EFF: EFF3, EFF2, EFF1
9) Poles: 2, 4, 6, 8,
10) Cooling method: IC411 (total-enclosed fan-cooled type)
11) Mounting types: IMB3, IMB5,IMB35
12) Operating mode: S1
13) Connection: "Y" type for 3kW and downwards, "D" type for 3kW and upwards
14) Ambient temperature: -15°C and 40°C
15)Altitude :not exceeding 1,000m above the sea level
16) Relative humidity: not higher than 90%
17) Special motors can be designed according to customers' requirements

Inner packing:

1) Frame 80-112: foam boxes
2) Frame 132-315: wooden boxes

Mounting ways:IMB3(foot mounting),IMB5(flange mounting),IMB35,IMB14.

wiring diagram of three phase electric motor

BENIFITS TO CLIENT:

• Reliable operation
• High efficiency
• Energy-saving
• Low noise
• Long life
• Slight vibration
• Try our best to meet customers' requirements, including voltage and frequency etc.
• It is newly designed in conformity with the relevant rules of IEC standards
• Special rotor balance for reduced vibration
• Warranty: 12 months from date of delivery.

OPERATION CONDITIONS:

• Duty: S1
• Frequency:                   50/60HZ
• Rated voltage:              380V±5%
• Protection class:           IP44/IP54
• Cooling method:           IC0141
• Ambient temperature:   -15°C≤0≤45°C
• Alititude should be lower than 1000 meters above sea level

China Julante Motors Factory Advantages.

• Prompt Quotation.
• Competitive Price
• Guaranteed Quality
• Timely Delivery.
• 100% Tested.
• Sincere and Professional Service.
• Outstanding Finishing Surface.
• Strictly and Perfect Management is  guaranteed for  Production.
• Specialized in Manufacturing and Supplying a wide range of Electric Motors since year 2002.
• Have Rich Experience and Strong ability to Develop New Products.
• Have Ability to Design the Products Based on Your Original Samples

Manufacturing process:

• Stamping of lamination
• Rotor die-casting
• Winding and inserting – both manual and semi-automatically
• Vacuum varnishing
• Machining shaft, housing, end shields, etc…
• Rotor balancing
• Painting – both wet paint and powder coating
• Motor assembly
• Packing
• Inspecting spare parts every processing
• 100% test after each process and final test before packi

Wound rotor,cooper winding,good quality fan and fan covers,all good motor spare parts

Feel free to contact us if you are interested in our electric motors.
