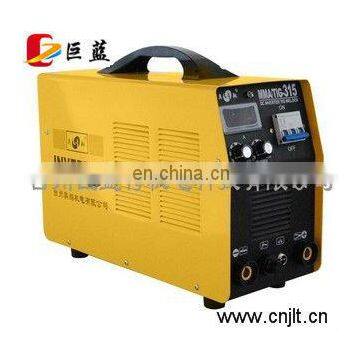

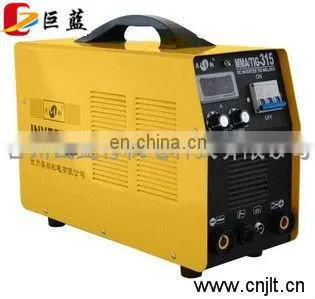

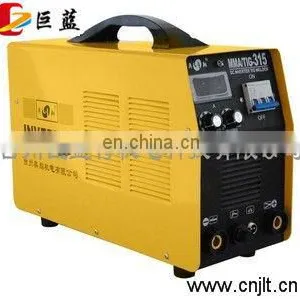

MMA/TIG-315 Inverter Welding Machines

Taizhou Julante Electromechanical Technology Co., Ltd.
MMA/TIG-315 Inverter Welding Machines thumbnail-1
MMA/TIG-315 Inverter Welding Machines thumbnail-2
MMA/TIG-315 Inverter Welding Machines thumbnail-3
MMA/TIG-315 Inverter Welding Machines thumbnail-4
MMA/TIG-315 Inverter Welding Machines thumbnail-5
MMA/TIG-315 Inverter Welding Machines thumbnail-6
MMA/TIG-315 Inverter Welding Machines photo-1
MMA/TIG-315 Inverter Welding Machines photo-2
MMA/TIG-315 Inverter Welding Machines photo-3
MMA/TIG-315 Inverter Welding Machines photo-4
MMA/TIG-315 Inverter Welding Machines photo-5
MMA/TIG-315 Inverter Welding Machines photo-6
US$ 50 - 150 MOQ: 10 Pieces
Key Specifications
Get Latest Price
Brand Name:
Julante
Place of Origin:
Zhejiang, China
Type:
Other
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo/Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Julante
Place of Origin Zhejiang, China
Type Other

MMA/TIG-315 inverter welding machines



Model :TIG-160/180/200/250/300/400/500



MAIN TECHNICAL PARAMETER

MODEL          ITEM

TIG-180

TIG-200

TIG-250

TIG-300

TIG-400

TIG-315

Input power voltage,Frequency (V,HZ)

AC220V (SINGLE PHASE) ±10%   50/60 HZ

AC380V (THREE PHASE)±10% 50/60 HZ

Rated input power capacity (KVA)

3.9

4.5

6.3

8.3

13

11

No-load voltage (V)

56

56

54

54

55

65

Output current adjustment range (A)

10-180

20-200

20-250

20-300

20-400

10-315

Rated output voltage (V)

17.2

18

20

22

26

30

Rated duty cycle (%)

60

60

60

60

60

60

No-load loss (W)

40

40

40

60

100

60

Efficiency (%)

85

85

85

85

85

85

Pover factor (COSφ)

0.93

0.93

0.93

0.93

0.93

0.93

Gas post-flow time (S)

0-2.5

0-5

0-5

0-10

0-12

0-15

Arc force adjustment range (A)

-

0-60

0-60

0-60

0-100

10-315

Welding thickness (MM)

0.3-5

0.5-12

0.5-12

0.5-14

0.5-20

0.5-25

Current of MMA

10-160

20-200

20-220

20-230

20-380

20-400

Weight (KG)

8

13

19

21

35

37

Measurement (MM)

371x155x295

371x155x295

480x205x355

480x205x355

560x335x420

520*265*490

Insulation class

F

F

F

F

F

IP22

Protection class

IP23

IP23

IP23

IP23

IP23

IP23



 Standard Accessory List



1.A set of welding torch.



2.A set of electrode holder with fast coupling device.



3.A set of earth clamp with fast coupling device.



4.Two meters of gas carring hose with two clips.



5.A piece of tungsten.





Characteristic



    1.Small measurement, portable, multi-purpose with TIG&MMA function.



    2.HF arc staring with little current.



    3.ARC FORCE can be adjustable, stronger welding penetration with stable current,high speed of dynamic-response.
