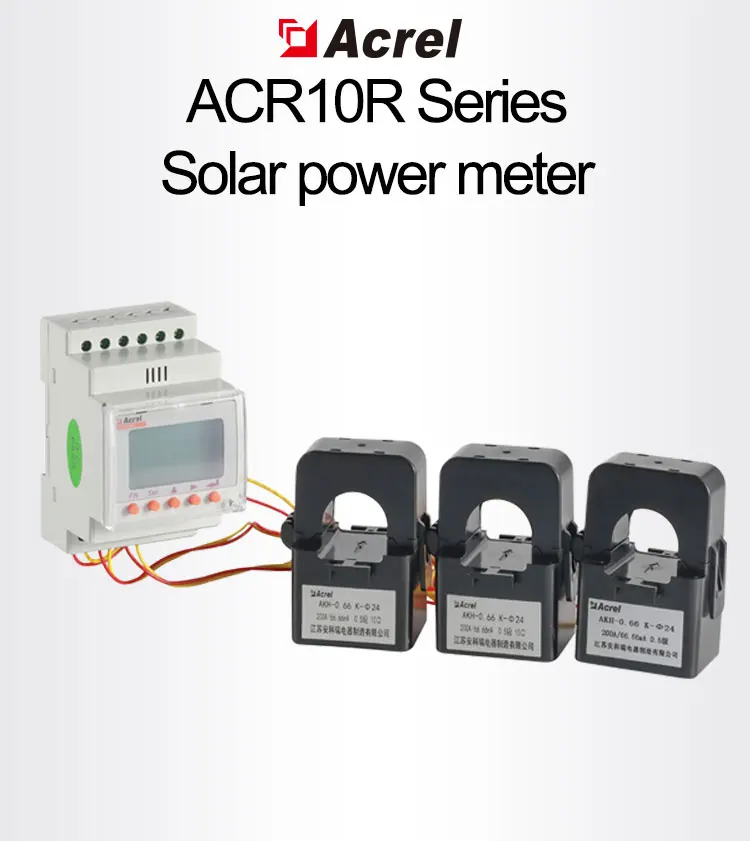

Acrel off Grid Solar Battery Power Meter ACR10R-D10TE

Jiangsu Acrel Electrical Manufacturing CO.,LTD Verified Business License
Acrel off Grid Solar Battery Power Meter ACR10R-D10TE thumbnail-1
Acrel off Grid Solar Battery Power Meter ACR10R-D10TE thumbnail-2
Acrel off Grid Solar Battery Power Meter ACR10R-D10TE thumbnail-3
Acrel off Grid Solar Battery Power Meter ACR10R-D10TE thumbnail-4
Acrel off Grid Solar Battery Power Meter ACR10R-D10TE thumbnail-5
Acrel off Grid Solar Battery Power Meter ACR10R-D10TE photo-1
Acrel off Grid Solar Battery Power Meter ACR10R-D10TE photo-2
Acrel off Grid Solar Battery Power Meter ACR10R-D10TE photo-3
Acrel off Grid Solar Battery Power Meter ACR10R-D10TE photo-4
Acrel off Grid Solar Battery Power Meter ACR10R-D10TE photo-5
US$ 56 - 56 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
Acrel
Model Number:
ACR10R-D10TE
Phase:
Single Phase
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Acrel
Model Number ACR10R-D10TE
Phase Single Phase
Output Voltage 3*220V/380V
Operating Temperature -10℃~+55℃
Dimensions 74mm*54mm*85mm
Accuracy Class 1 class
Measuring Energy Range 000000.00~999999.99kWh
General

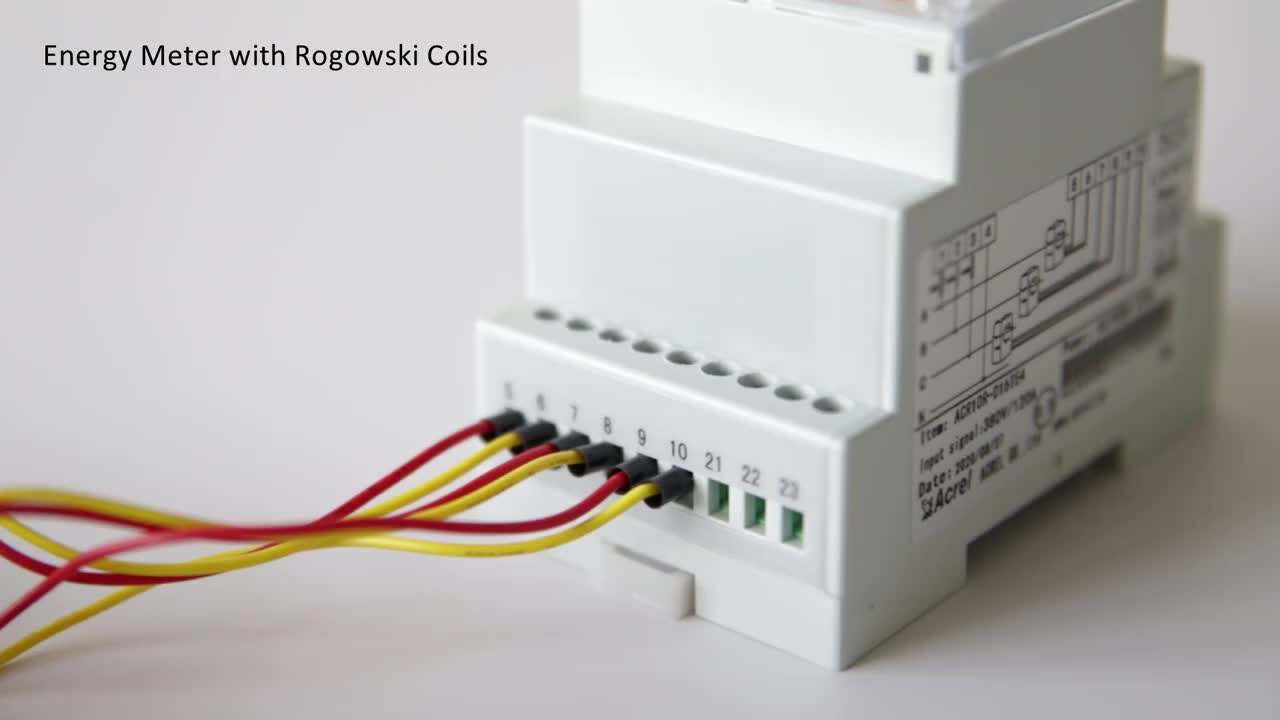

The guide-rail harmonic meter with external roche coil and open type mutual inductor is suitable for energy saving renovation projects in high energy consumption industries such as smelting,steel,electric welding,semiconductor,etc.
Function

Parameters

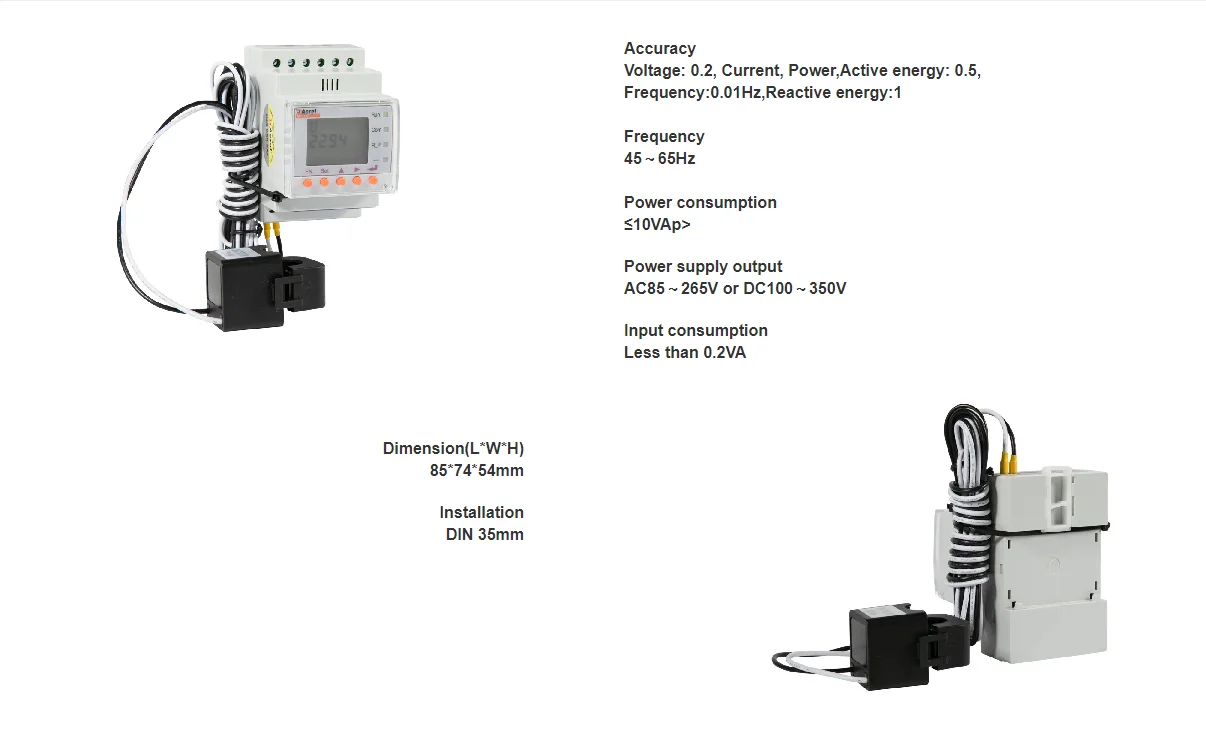

Technical parameters
Indicators
Input
Grid
Single-phase
Frequency
45～65Hz
Voltage
Rated voltage: AC 100V, 400V
Overload: 1.2 times the rated voltage(continuous); 2 times the rated voltage lasting for 1 second
Power consumption: less then 0.2VA
Current
Rated current: 10A，20A，40A，80A，120A，200A etc. (for details see product specifications)
Overload: 1.2 times the rated current(continuous);10 times the rated current lasting for 1 second
Power consumption: less then 0.2VA
Output
Communication
RS485 interface, Modbus-RTU
Display
LCD
Measurement precision
Voltage: 0.2 level, current, power Active energy: 0.5 level,0.01Hz frequency, Reactive energy: 1 level
Power supply
AC85～265V or DC100～350V; power consumption ≤10VA
Safety
Power frequency withstand voltage
AC2kV 1 min between power supply // current input//voltage input and communication
AC2kV 1 min between each pair of combinations among power supply, urrent input and voltage input.
Insulating resistor
Input,output terminal to housing >100MΩ
Environment
Working temperature: -10℃～+55℃;storage temperature: -20℃～+70℃
Relative humidity:5%～95%，non-condensing; altitude:≤2500m
Front panel

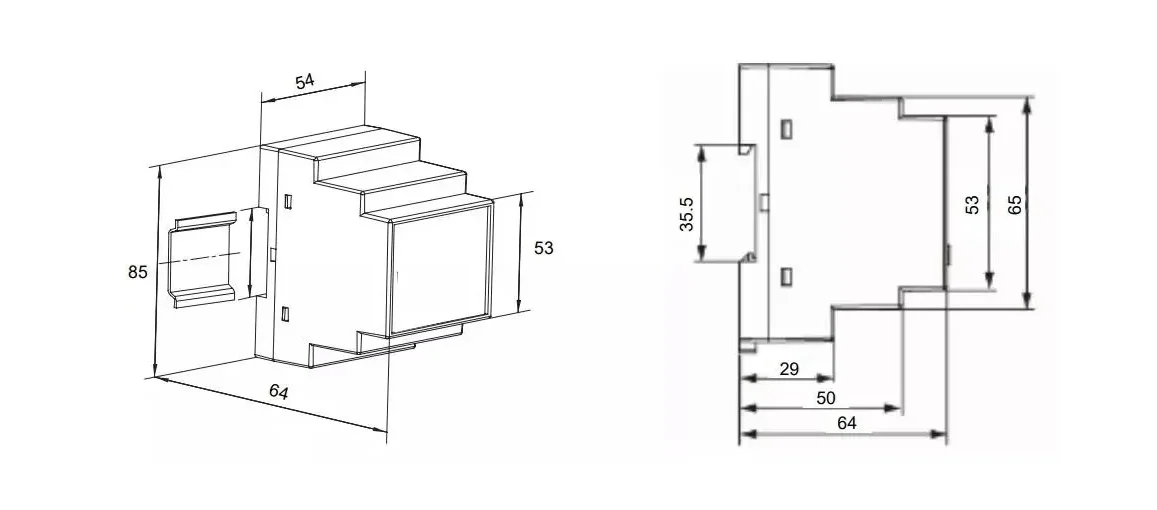

Dimension

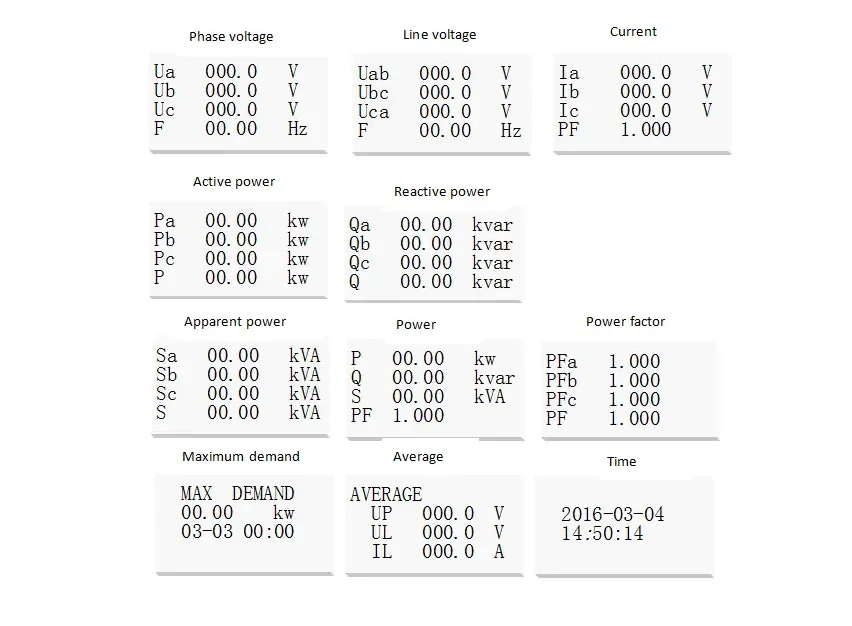

Display

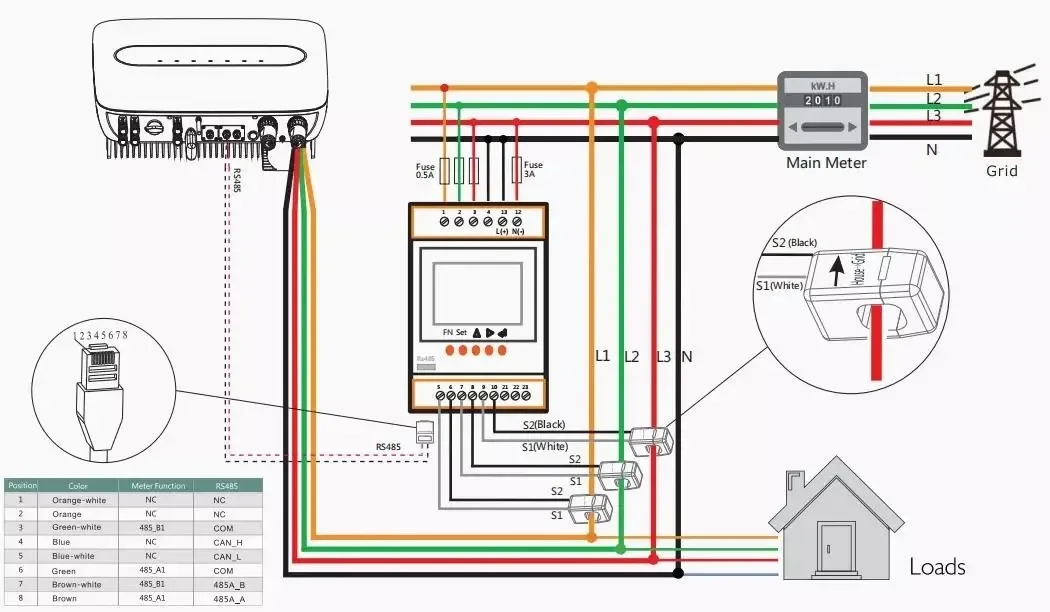

Wiring

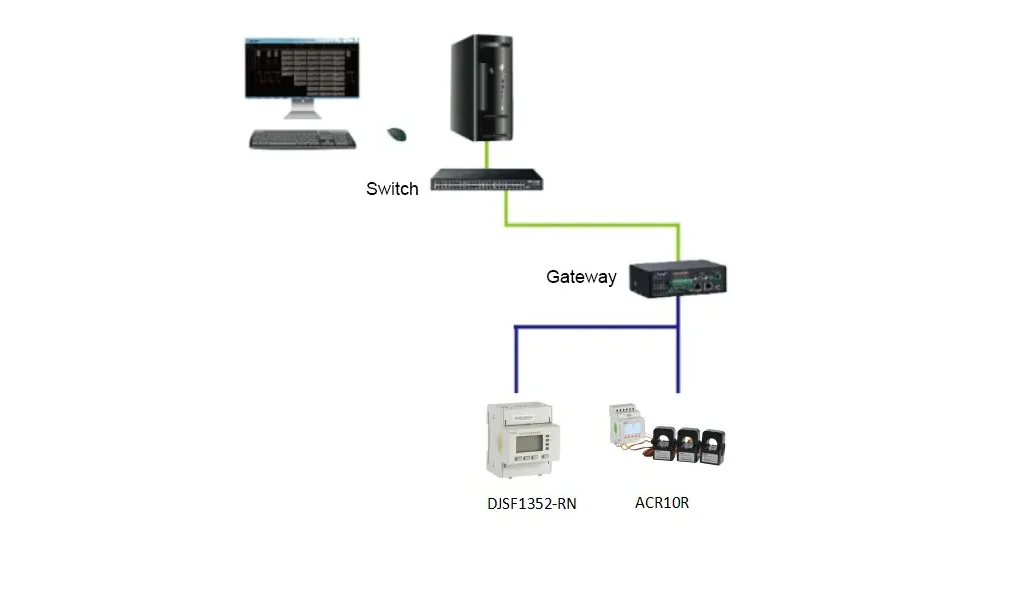

Network
