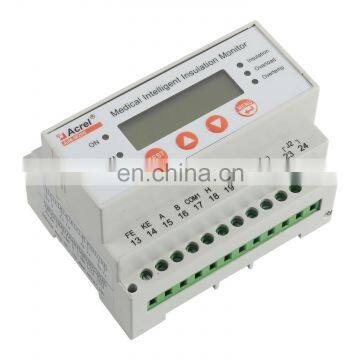

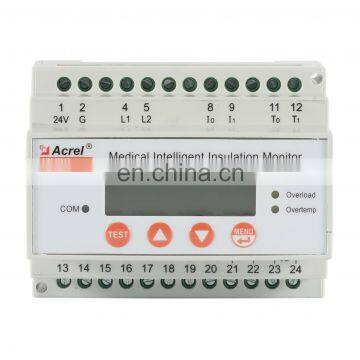

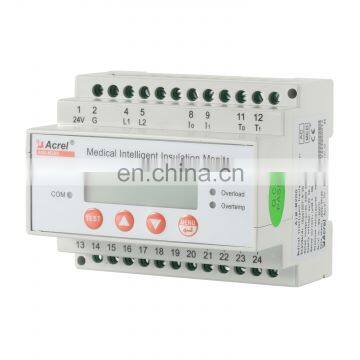

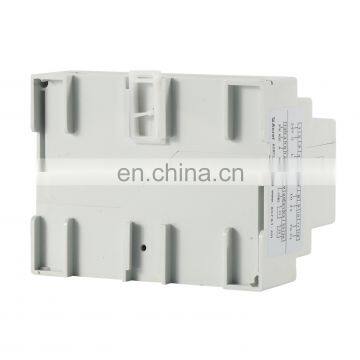

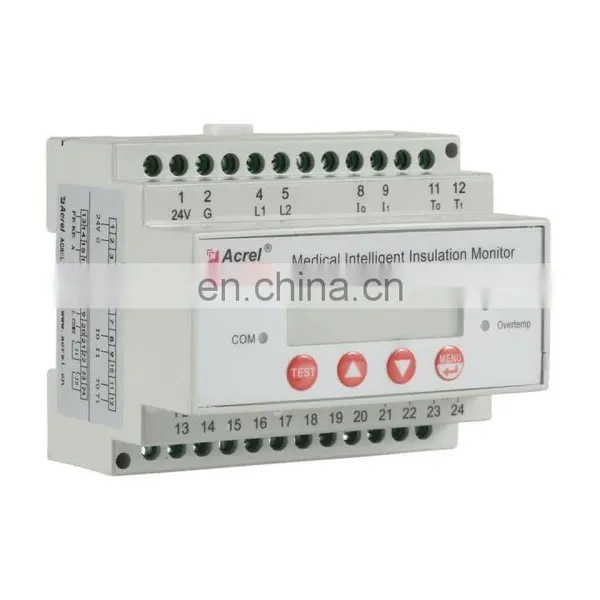

Acrel 300286 AIM-M200 Hospital IPS Isolated Power Supply Monitoring System Insulation Monitor
US$ 2,032.6 - 2,032.6
MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
Acrel
Place of Origin:
China
Model Number:
AIM-M200
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Acrel 300286 AIM-M200 Medical IT Systems AC Current Multifunctional Insulation RelayUS$ 2,032.6 - 2,032.6MOQ: 1 Piece -
Acrel 300286 AIM-M200 Insulation Monitoring Relay for Hospital IPS Monitoring SystemUS$ 2,032.6 - 2,032.6MOQ: 1 Piece
-
Acrel IP31 IT System Electric Power Distribution Isolation Cabinet GGF-I6.3G Used in CCUUS$ 8,740 - 8,740MOQ: 1 Piece
-
Acrel Hospital Isolated Power Supply 7 Pieces SetsUS$ 10000 - 10000MOQ: 1 Piece
-
ACREL 300286 AIL100-8 Insulation Fault Locator Used in Medical IT SystemUS$ 806.4 - 806.4MOQ: 1 Piece
Brand Name
Acrel
Place of Origin
China
Model Number
AIM-M200
Operating Temperature
-10~55℃
Dimensions
75*85*108mm
Display Type
Analogue and Digital
Accuracy Class
Class 5
Measuring Range
0-99999
Testing Voltage
DC 24V
Product Description
General
The AIM-M200 monitors the insulation resistance of medical IT system, At the same time, the load current and temperature of the IT system transformer is monitored. In combination with ASG100, AIL100 series insulation fault locators and the appropriate measuring
current transformers, the AIM-M200 is designed to support insulation fault location
current transformers, the AIM-M200 is designed to support insulation fault location
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
Feature
● Insulation monitoring for medical IT systems
● Load and temperature monitoring of isolation transformer
● Device disconnection monitoring
● LED indicators: On, Insulation, Overload, Overtemp
● Alarm relay output
● Test button
● Insulation fault location
● RS485 (MODBUS-RTU) + CAN (custom protocol
● Load and temperature monitoring of isolation transformer
● Device disconnection monitoring
● LED indicators: On, Insulation, Overload, Overtemp
● Alarm relay output
● Test button
● Insulation fault location
● RS485 (MODBUS-RTU) + CAN (custom protocol

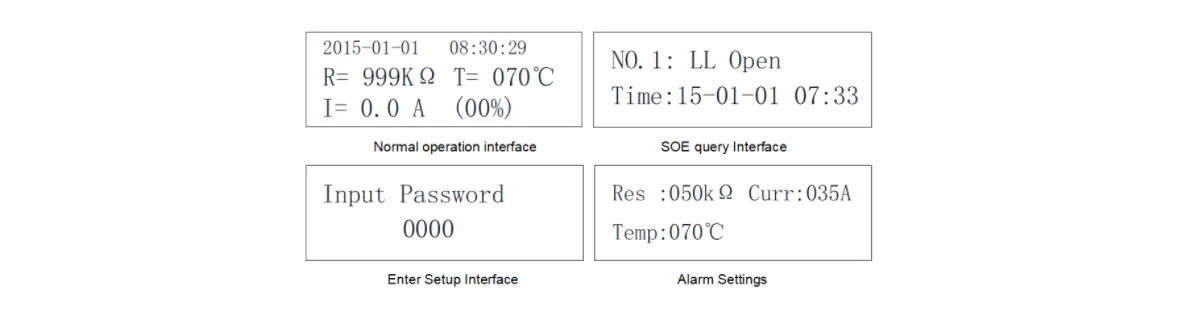

Display
Dimension
Wiring
Application
Techinical Parameter
Input voltage | DC 18…36V | ||
Power consumption | ≤3VA | ||
Resistance measuring range | 10…999kΩ | ||
Response value | 50…999kΩ | ||
Relative uncertainty | ±10% | ||
Response time | ≤3s | ||
Measuring voltage U | ≤12V | ||
Measuring current I | ≤50uA | ||
Load current monitoring Measuring Value | 2.1…50A | ||
Load current monitoring Alarm Value | 5…50A | ||
Load current monitoring Measuring accuracy | ±5% | ||
Certificate
