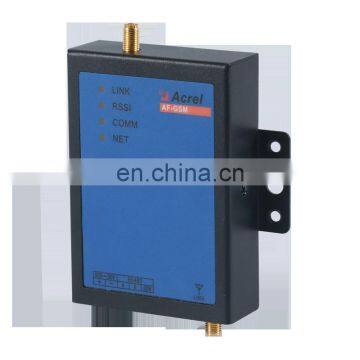

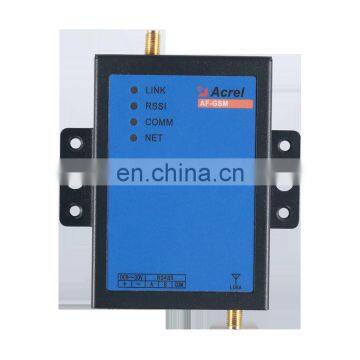

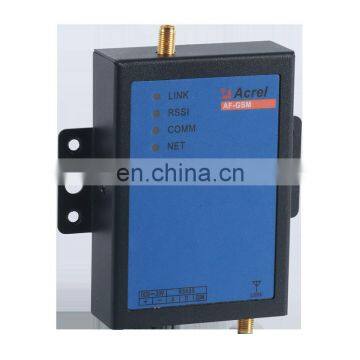

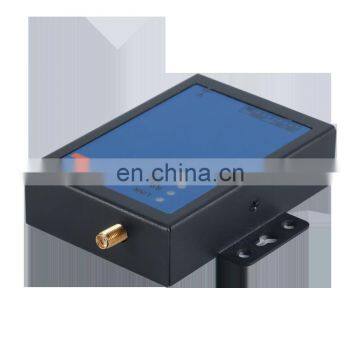

Acrel 300286.SZ AF-GSM300-HW868 Communication Smart Gataway Download Lora Rs485 Upload 4g
US$ 207.4 - 207.4
MOQ: 1 Piece
Key Specifications
Get Latest Price
Model Number:
AF-GSM300-HW868
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Acrel 300286.SZ AF-GSM300-HW868 Data Transmission Module/DTU for Networking and Could PlatformUS$ 207.4 - 207.4MOQ: 1 Piece -
Acrel 300286.SZ AF-GSM300-HW868 Intelligent Gateway With Lora 860-935MHz Download 4G MQTT UploadUS$ 207.4 - 207.4MOQ: 1 Piece
-
Acrel 300286.SZ DTU/data Transfer Unit AF-GSM300-HW868 for Networking and Cloud Platform Uopoad by 4g MQTTUS$ 207.4 - 207.4MOQ: 1 Piece
-
Acrel 300286.SZ Smart Gataway AF-GSM300-HW868 With Lora Lora 860~935MHz Download 4g MQTT UploadUS$ 207.4 - 207.4MOQ: 1 Piece
-
Acrel 300286.SZ AF-GSM300-HW868 Wireless Data Transfer Gateway Download Lora Upload 4g MQTTUS$ 207.4 - 207.4MOQ: 1 Piece
Model Number
AF-GSM300-HW868
Product Description

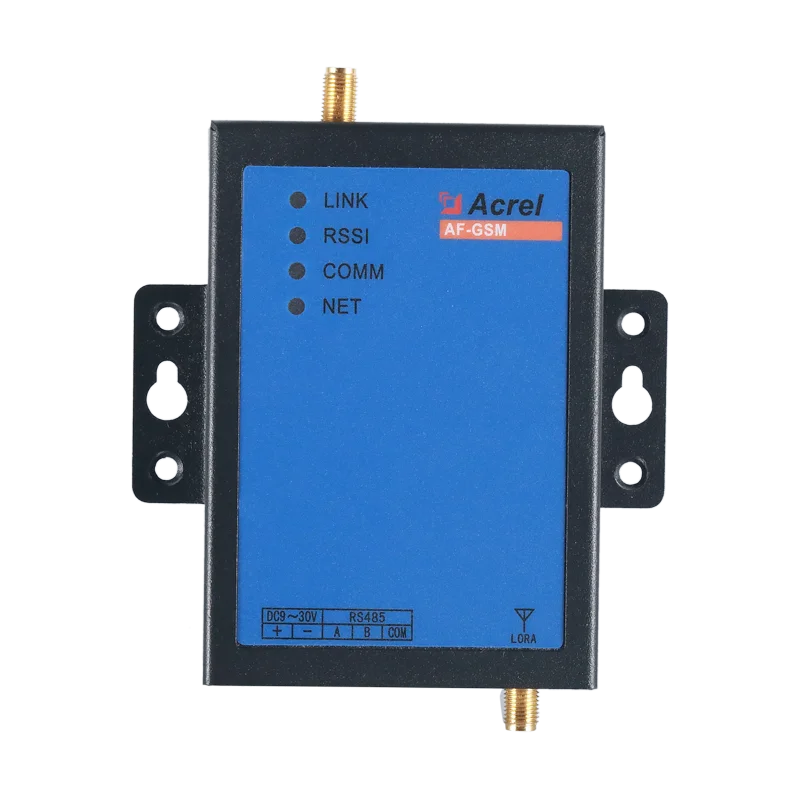

AF-GSM300-HW868 Data Transfer Unit/Smart Gateway
AF-GSM300-HW868 Data Transfer Unit/Smart Gateway
General
Smart gateway connection with lora/RS485, 4g energy meter
AF-GSM300-HW868 dowload is lora and rs485 communication , need to be used with AEW100 energy meters, upload is 4G,follow MQTT protocol,specially desinged for overseas market,can be easily connected to RTU,PLC,computer or other equipment.
AF-GSM300-HW868 dowload is lora and rs485 communication , need to be used with AEW100 energy meters, upload is 4G,follow MQTT protocol,specially desinged for overseas market,can be easily connected to RTU,PLC,computer or other equipment.
Technical Parameters
Parameters | Model | ||
AF-GSM300-CE | AF-GSM300-HW868 | ||
Download | LORA 470~510MHz | Lora 860~935MHz ,RS485 communication | |
Uplink | Ethernet modbus tcp | 4G MQTT | |
frequency band | LTE-FDD B1 B2 B3 B4 B5 B7 B8 B12 B13 B18 B19 B20 B25 B26 B28 LTE-TDD B38 B39 B40 B41 UMTS B1 B2 B4 B5 B6 B8 B19 GSM B2 B3 B5 B8 LORA 860~935MHz | LTE-FDD B1 B2 B3 B4 B5 B7 B8 B12 B13 B18 B19 B20 B25 B26 B28 LTE-TDD B38 B39 B40 B41 UMTS B1 B2 B4 B5 B6 B8 B19 GSM B2 B3 B5 B8 LORA 860~935MHz | |
Transmission rate | LTE-FDD Downstream rate up to 150Mbps Uplink rate up to 50Mbps LTE-TDD Downstream rate up to 130Mbps Uplink rate up to 35Mbps CDMA Downstream rate up to 3.1Mbps Uplink rate up to 1.8Mbps GSM Downstream rate up to 107Kbps Uplink rate up to 85.6Kbps | LTE-FDD Downstream rate up to 150Mbps Uplink rate up to 50Mbps LTE-TDD Downstream rate up to 130Mbps Uplink rate up to 35Mbps CDMA Downstream rate up to 3.1Mbps Uplink rate up to 1.8Mbps GSM Downstream rate up to 107Kbps Uplink rate up to 85.6Kbps | |
SIM card voltage | 3V，1.8V | ||
Power consumption | Static power consumption: ≤1W, transient power consumption: ≤3W | ||
Baud rate | 4800bps,9600bps,19200bps,38400bps(default 9600bps) | ||

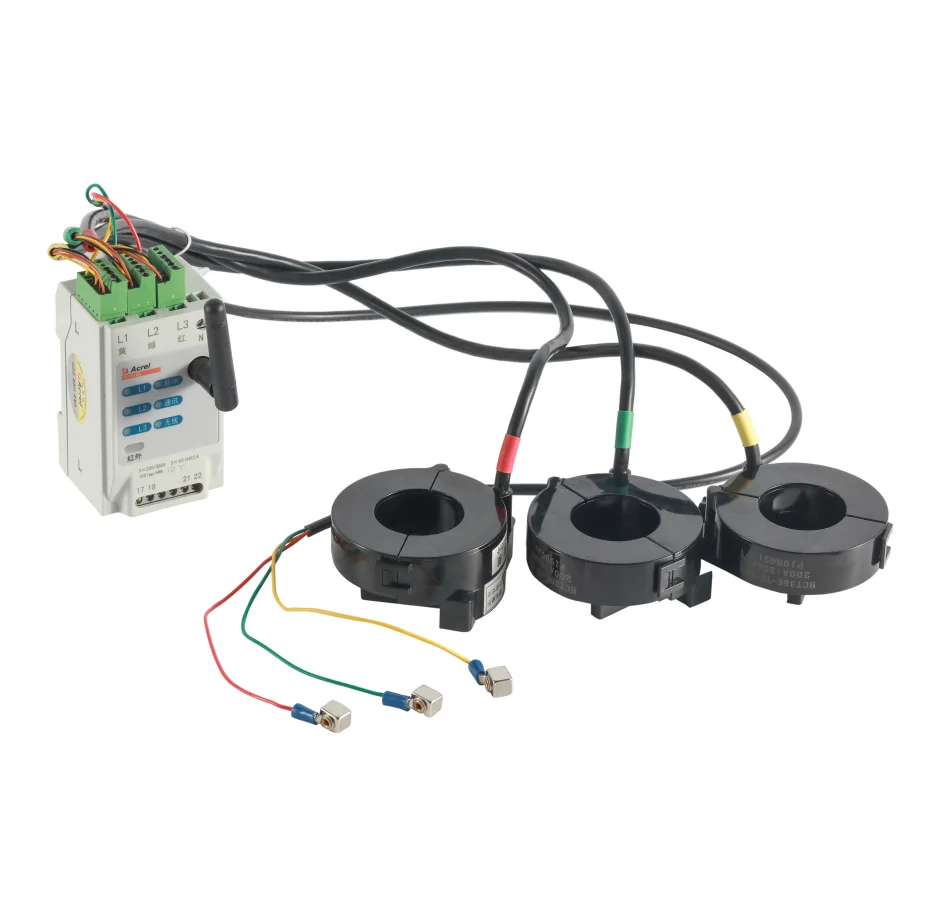

AF-GSM300-HW868 need to use with AEW100 series meters

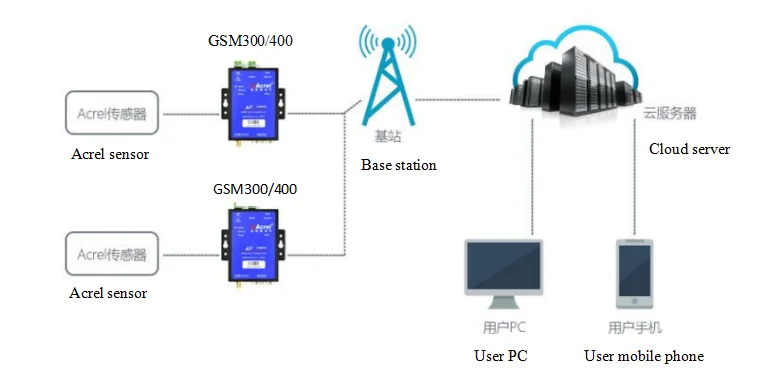

Typical connection
