Acrel ADW200-D16-4S multi branch circuit power meter for 3g electricity usage monitor

Name: Acrel ADW200-D16-4S multi branch circuit power meter for 3g electricity usage monitor
Brand: Acrel
Availability: InStock

FOB Price

USD $291 - $291 / Set

1 Set(Min.Order)

Supply Ability 1000 Set / Sets per Month
Payment Terms:T/T Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price

Product Details

Brand Name:	Acrel	Place of Origin:	Jiangsu, China	Model Number:	ADW200
Phase:	Three Phase	Output Voltage:	380V	Operating Temperature:	-20℃~+55℃

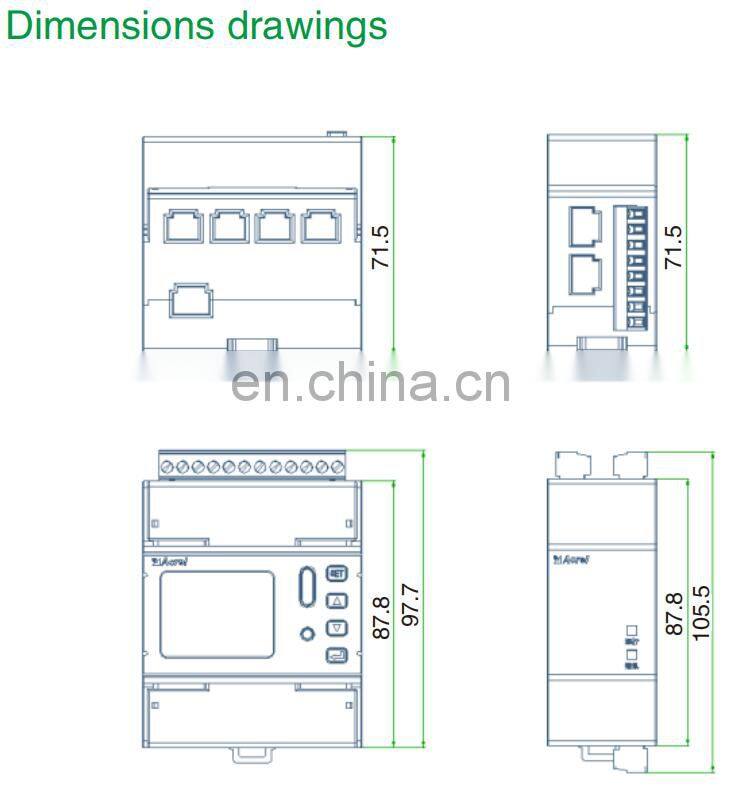

Dimensions:	88*54mm	Display Type:	Analog Only	Accuracy Class:	Class 1
Measuring Energy Range:	0-99999KWH

Product Description

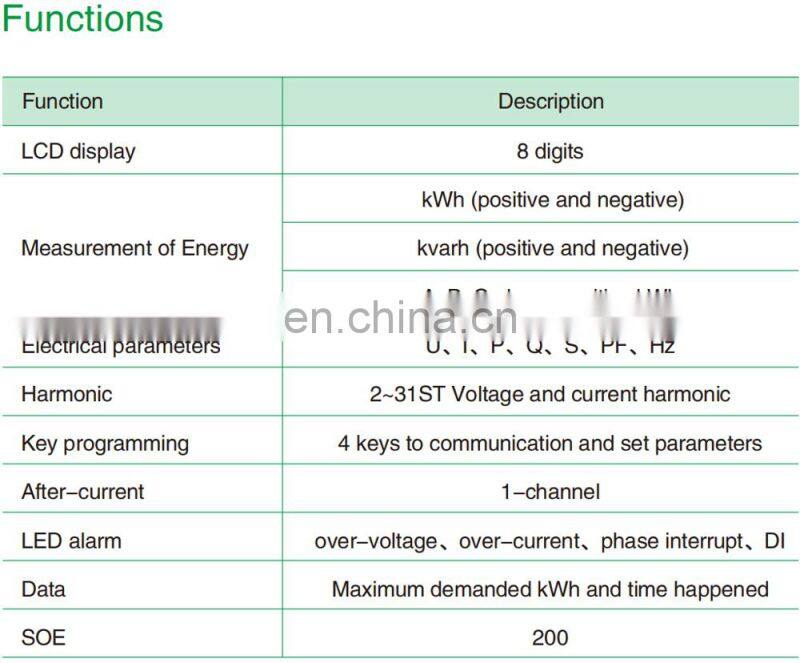

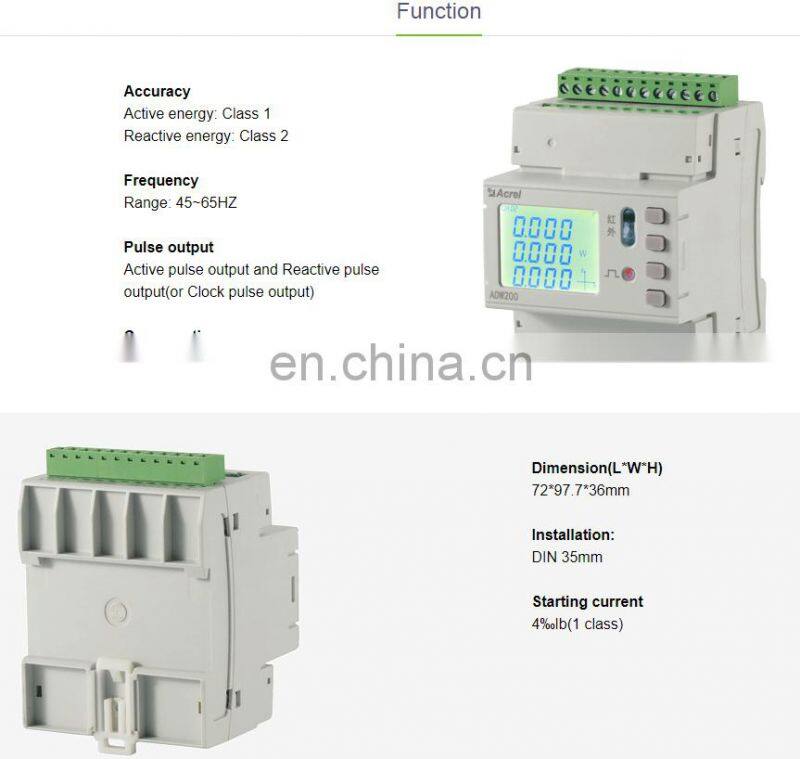

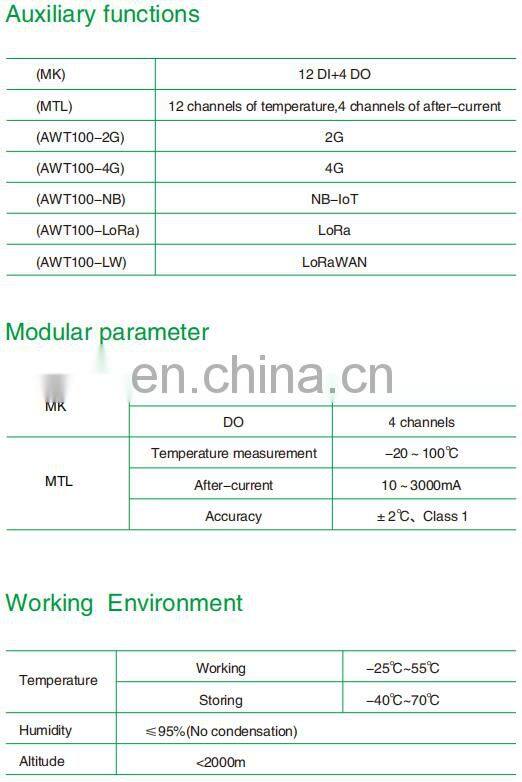

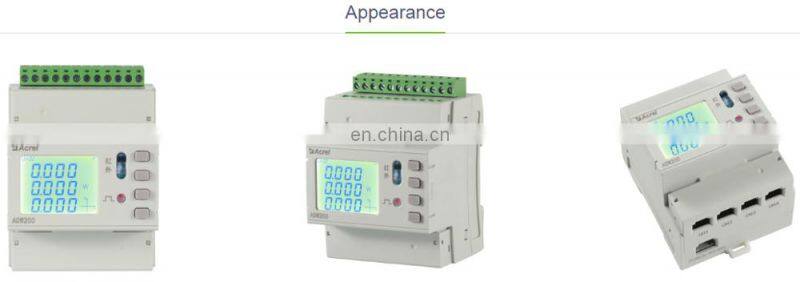

ADW200 Multi Circuit energy Meter

ADW200 series multi-loop power meter is mainly used for the measurement of all electric parameters of three-phase circuit. Colleagues can select the current input of the maximum four circuits.

Multi Circuit energy Meter

Company Information

Our Services

FAQ

Common errors check and solve

1 The meter do not light after powered, or one path of voltage indicator do not light.

Suggestion: Please turn the screw to ensure that the meter needle has been punctured and contacted with the cable inner
conductor cable.

2 Meter's wireless communication failure

Suggestion: Please connect RS485 interface on the meter and USB convert to 485 serial port to read the parameters, and
confirm whether the parameters are the same as the upper terminal wireless configuration (channel and spread spectrum
factor). If different, please modify the meter's wireless parameters and retest the master terminal after the same, and if
the same, it may be the meter and master terminal are in a relative long distance. It is too far to communicate or the scene
is seriously disturbed. We can try to use the external antenna at the same time, or consider the newly added wireless
master terminals, and then test it.
