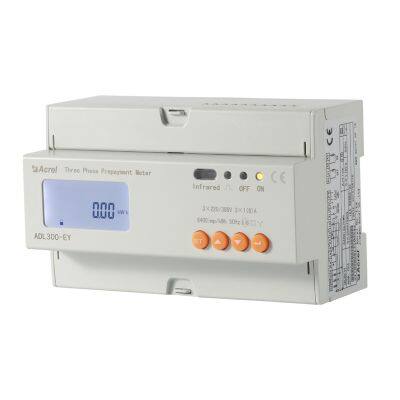

Acrel ADL300-EY three phase smart prepaid energy meter/Din Rail for Intelligent communities CE

Name: Acrel ADL300-EY three phase smart prepaid energy meter/Din Rail for Intelligent communities CE
Brand: Acrel
Availability: InStock

FOB Price

USD $84 - $84 / Piece

1 Piece(Min.Order)

Supply Ability 1000 Piece / Pieces per Month
Port Shanghai
Payment Terms:T/T Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price

Product Details

Brand Name:	Acrel	Place of Origin:	China	Model Number:	ADL300-EYRF-249c
Phase:	Three Phase	Output Voltage:	220V	Operating Temperature:	-25℃~55℃

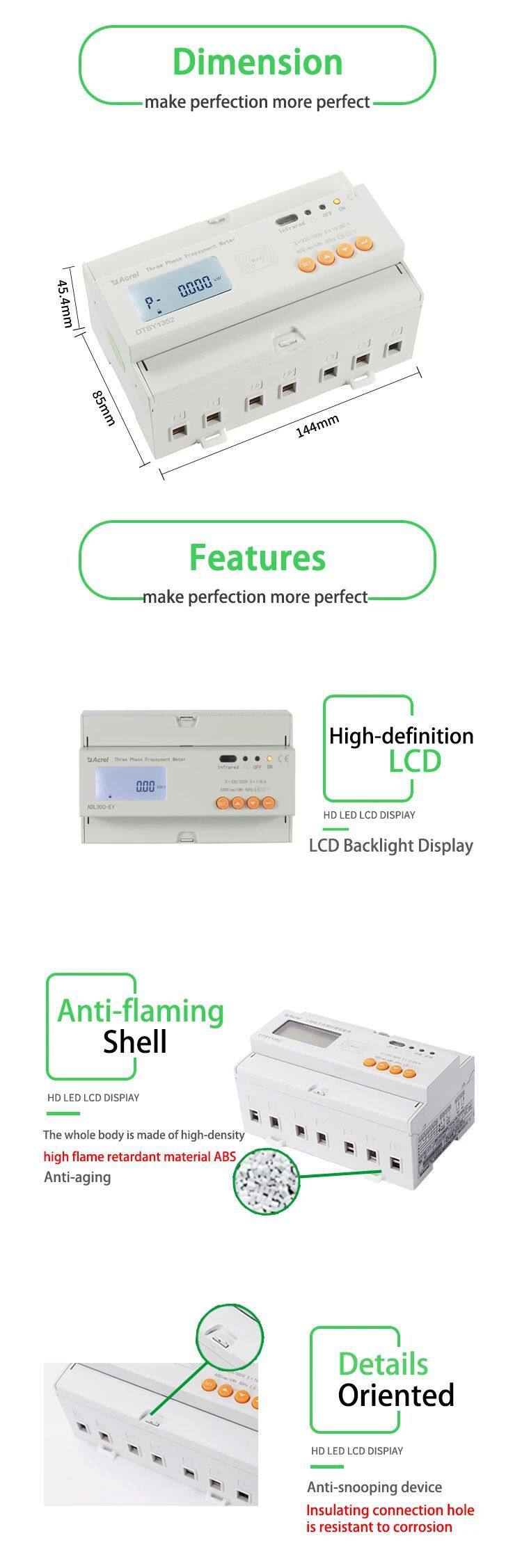

Dimensions:	144mm88 mm70mm	Display Type:	Digital Only	Accuracy Class:	1 class
Measuring Energy Range:	000000.00~999999.99kWh

Product Description

General

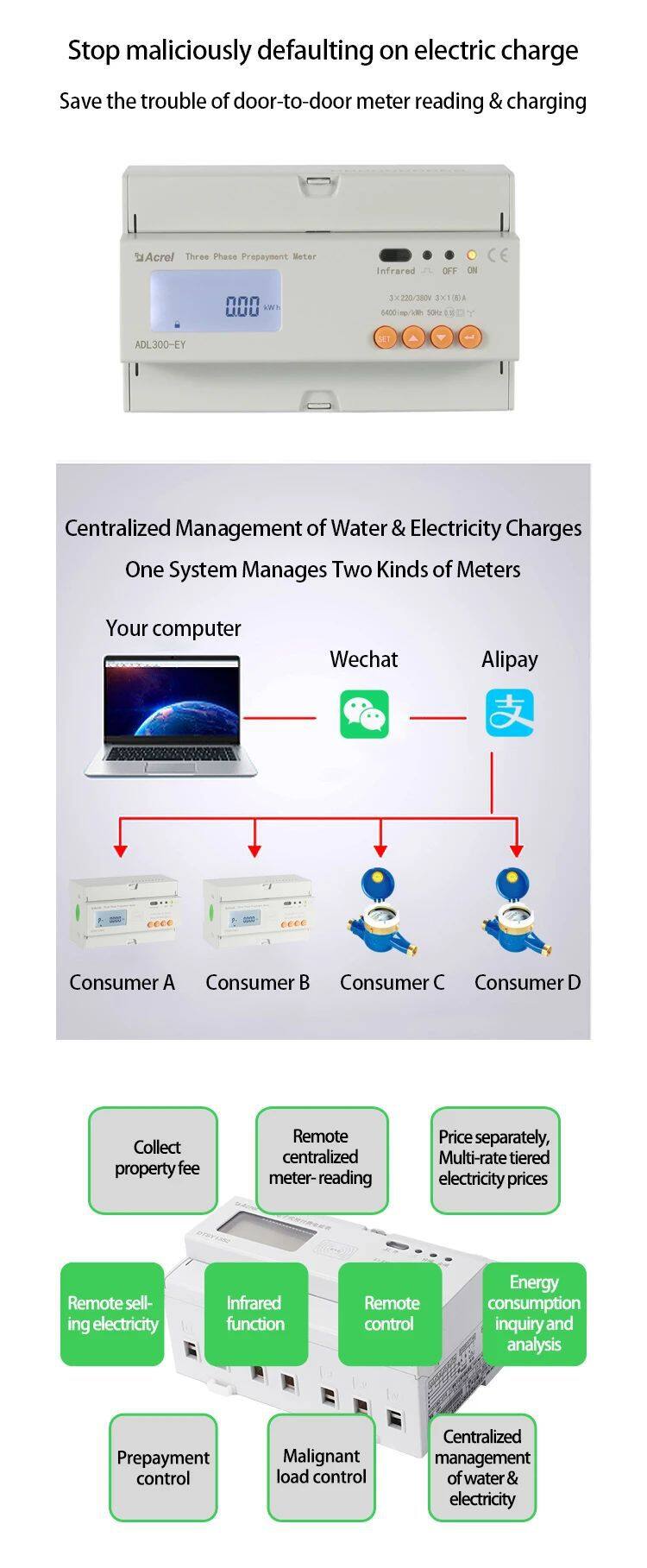

ADL300-EY three phase pre-paid meters with intro-control are used for calculating the active energy respectively on the frequencymof 50/60 Hz. The built-in magnetic of meter can keep the relay on and off .It also supports remote recharge, load controlling and RS485 communication etc. meet the related technical requirements of electronic power meter in the IEC62053-21, IEC62053-22 standards.

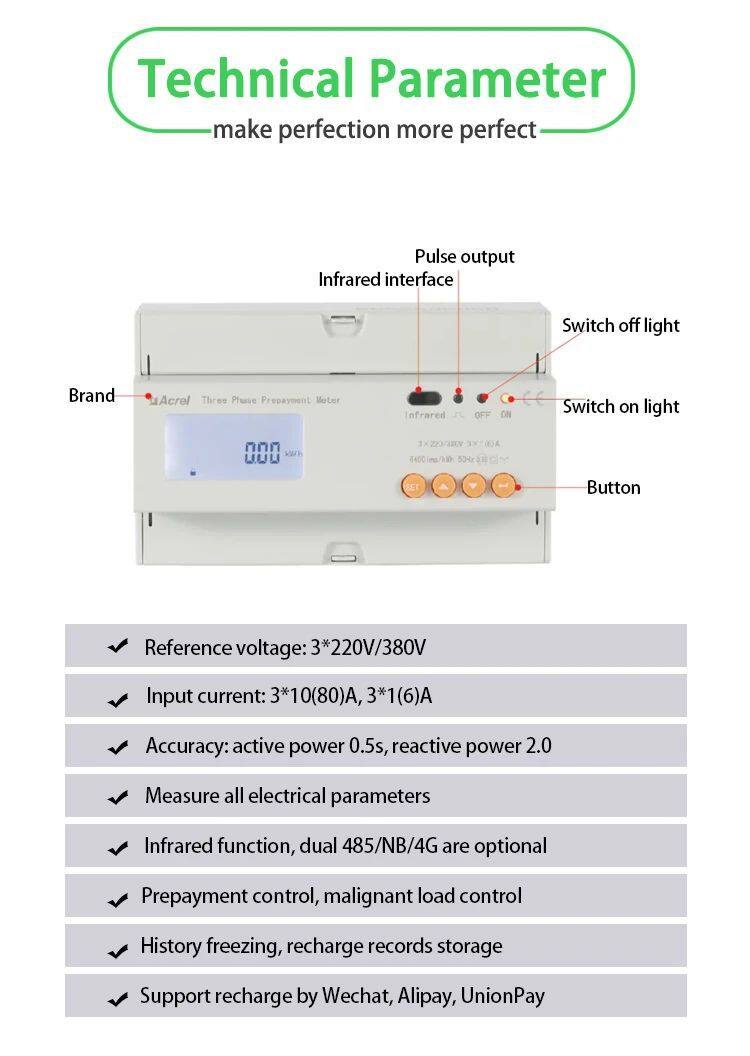

Prarmeters

Technical parameters		ADL300-EY
Voltage	Nominal voltage	3*220/380V
	Nominal frequency	50/60Hz
	Consumption	＜4VA(Each phase)
Current	Maximum current	6A,80A
	Starting current	Connect directly:0.04A,connect via CT:0.002A
	Consumption	＜4VA(Maximum current)
Measurement performance	Accuracy	Class 0.5s
Clock	Accuracy	Error ≤0.5
Active pulse	Width	80ms±20ms
	Constant	6400imp/kWh
Communication	Interface	RS485
	Protocol	MODBUS-RTU
Temperature range	Operating	-25℃ ～55℃
	Storage	-40℃ ～70℃
Humidity		≤95%（No condensation）
Altitude		≤2000m
