Dense insulated busway

Compact insulated Busduct Trunking System(BTS)

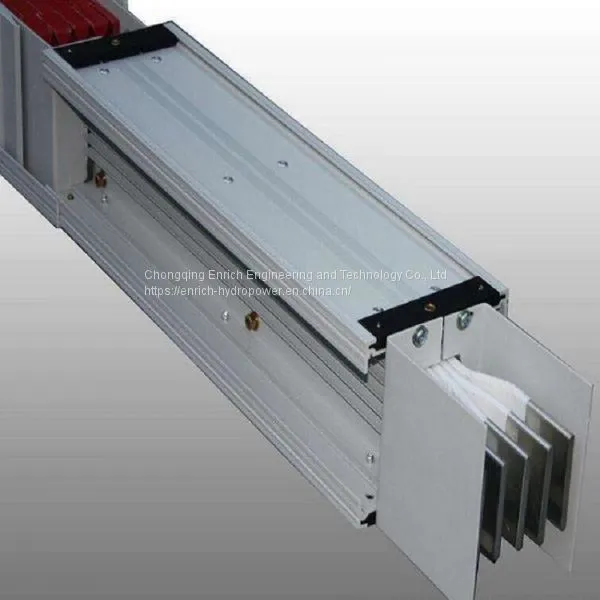

Compact insulated Busbar trunking

As a new type of power distribution conductor, compact insulated busbars have emerged. Compared with traditional cables, it fully reflects its superiority in high-current transmission. At the same time, due to the use of new processes and technologies, the contact resistance and temperature rise at the ends of the busway and at the junctions of the branch ports is significantly reduced, and high-quality insulation materials are used in the busduct, thereby improving the safety and reliability of the busbar and making the entire system more complete& reliable.

Features

With the emergence of modern engineering facilities and equipment, the power consumption across industries has increased rapidly, especially the emergence of many high-rise buildings and large workshops. The traditional cables used as power transmission lines can no longer meet the requirements in high-current transmission systems. The parallel of multiple cables brings a lot of inconvenience to the on-site installation and construction connection.

Compact insulated busway has strong heat dissipation ability, flexible wiring, strong resistance to dynamic and thermal stability, and it is a new generation of environmentally friendly products. It is suitable for auxiliary equipment for power supply and distribution in industrial and mining, enterprises and institutions, and high-rise buildings, especially for the renovation of workshops and old enterprises.

The characteristics of the busduct: small size, short design and construction cycle, large capacity, convenient assembly and disassembly, non-combustion, safety and reliability, and long service life. Busduct products are suitable for three-phase four-wire power supply and distribution system engineering with AC 50Hz, rated voltage 380V, and rated current 250A-4000A.

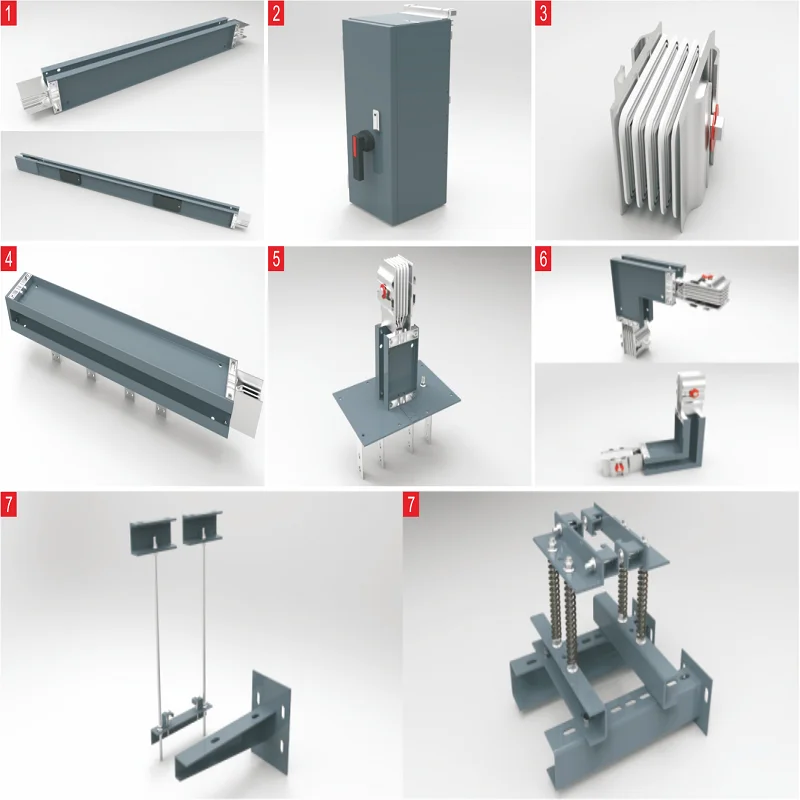

Functional unit

1.Feed-in straight line segment

2.Plug-in straight line segment

3.Connector

4.Double head moment shear bolt

5.Elbow (L type vertical elbow, L type horizontal elbow, Z type vertical double elbow, combined elbow, T type vertical elbow, T type horizontal elbow)

6.Expansion unit

7.Starting end bus

8.Starting end box

9.Terminal cover

10.Wall-through flange

11.Starting box panel and hole

12.Expansion bus

13.Commutation bus

14.Plug-in box (plug-in box with circuit breaker, plug-in box with fuse)

15.Installation accessories (vertical mounting platen and vertical mounting beam, horizontal mounting platen and horizontal mounting beam, middle fixing bracket, spring bracket)

Types

1.Copper conductor compact insulated busway

2.Aluminum conductor densely insulated bus duct

3.Economical copper-aluminum mixed conductor intensive insulated bus bar

4.Copper conductor energy-saving compact insulated bus duct

5.Fire-proof compact insulated busway

Copper conductor compact insulated busway

The load area of the conductor is large, similar to the load area of the traditional air type. The conductor is made of T2 high-quality copper, so the system resistance is low, the temperature rise is low, and the electrical loss is small.

Aluminum conductor densely insulated bus duct

The conductor is made of high-quality electrical aluminum conductor, and the cost is lower than that of the copper bus bar, and the weight of the bus duct is lighter, which is convenient for transportation and installation.

Economical copper-aluminum mixed conductor intensive insulated bus bar

The phase line uses copper bars, and the neutral and grounding lines use aluminum bars. While meeting the performance requirements, it has effectively reduced costs.

Copper conductor energy-saving compact insulated bus duct

The conductor is made of T2 high-quality copper. The conductor is thin and wide. It makes full use of the characteristics of the skin effect of the conductor. Due to the wide heat dissipation area of the conductor, the smaller current-carrying area of the conductor achieves the effect of greater current carrying capacity.

Fire-proof compact insulated busway

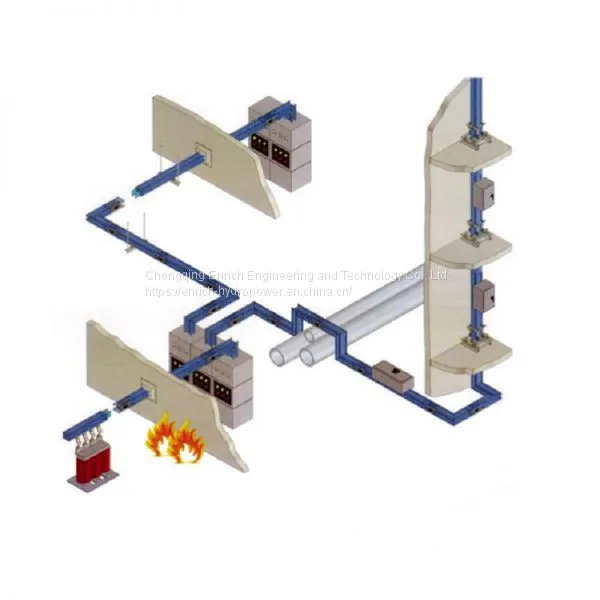

A product with fire-fighting performance, which solves the problem that traditional bus ducts cannot be used in a fire-fighting environment. Special materials and special processes make the product fully meet the verification of flame propagation prevention and the verification of fire baffles in building structures.

Others

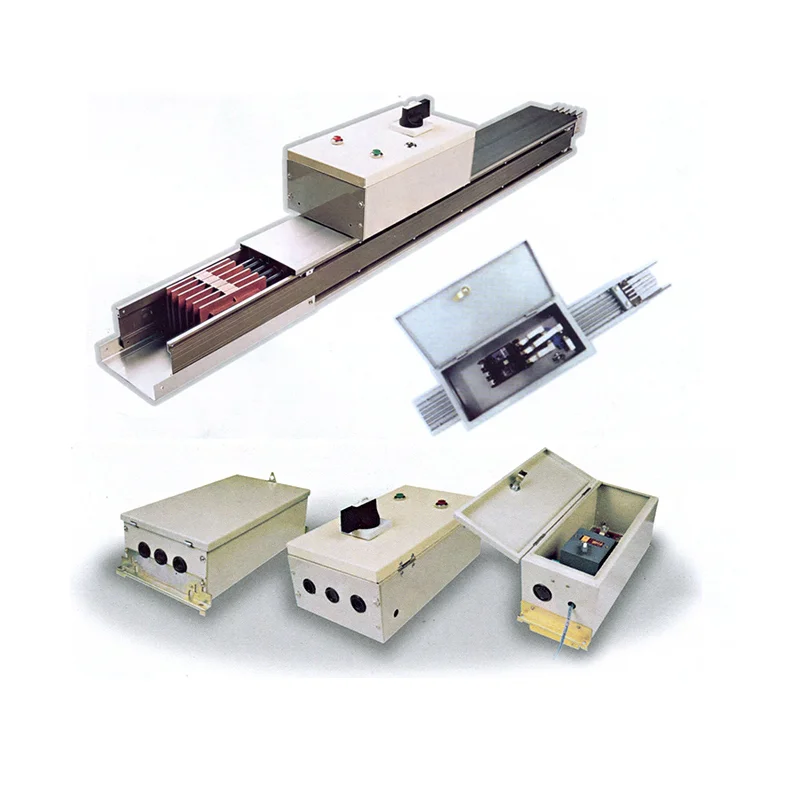

Air type insulation Busbar

Air type busbar is suitable for AC three-phase four-wire, three-phase five-wire power supply and distribution system, with frequency 50-60Hz, rated voltage 660V and rated working current 250-6000A. The conductive bar is supported in the housing with an insulating pad and insulated by air. The distance between phases is 50mm. It is suitable for buildings, factories, subways and other conventional power lighting places.

The air-type busway shell adopts high-quality high-strength cold-rolled steel to be cold-rolled into a corrugated structure at one time, which not only has a beautiful appearance, but also greatly enhances the mechanical strength of the busway and the dynamic and thermal stability of the system. It can completely solve the problem of large-span installation at the construction site.

The air-type busway socket is designed with a safety protective baffle. Only when the protective baffle is pulled out, the plug-in box can be accessed, effectively preventing the entry of dust and foreign matter at the socket to improve the protection of the busway and prevent misoperation, which has greatly improved the safety of the bus.

The enclosure protection grade is IP66. According to system requirements, plug-in ports can be set at any position on the busway, which is fast to install, convenient to tap, and safe to use.

The following information needs to be indicated on the building installation drawing and the busbar direction drawing:

1.Busway model, rated current, rated voltage

2.Power supply connection of busway

3.Plug-in or feed-in

4.Surface treatment methods and colors of bus ducts and accessories

5.The power supply and degree of protection

6.Component name, model, specification and quantity in the plug-in box

7.Busway installation method, installation position and restricted size of all accessories
