Home > Products > Ddsy / dtsy series prepayment table > Acrel dtsy / ddsy1352 series prepayment meter

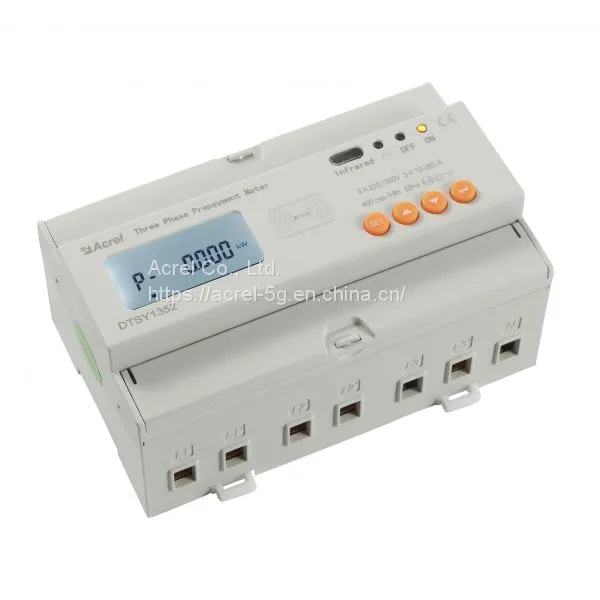

Acrel dtsy / ddsy1352 series prepayment meter
45.6 - 60
/ Piece
1 Piece(Min.Order)
- 80000 Piece / Pieces per Month
- Shanghai
- T/T
- 7 days
You May Like
-
Parameter detection of AC rel ankerui pz72l-di DC ammeter DC panel solar power generation base station
-
Full measurement of common parameters in acrel120el network power instrument real time electric monitoring system
-
Acrel apm800 series high end network power instrument real time demand monthly extreme Ethernet interface
-
Acrel Installation of infrared communication guide rail for AC three-phase itemized metering ammeter of acrel dtsd1352
-
LCD real time monitoring data of acrel djsf1352-rn electronic DC watt hour meter
-
Acrel Adf400l series multi user watt hour meter
Product Details
| Brand Name: | Acrel | Place of Origin: | China | Model Number: | DTSY1352 |
| Phase: | Single Phase | Output Voltage: | 380V | Operating Temperature: | -25℃~+65℃ |
| Dimensions: | Guideway type | Display Type: | Other | Accuracy Class: | 0.5 |
| Measuring Energy Range: | 0.5 |
Product Description
Product introduction
Ddsy1352 single-phase internal control prepayment watt hour meter and dtsy1352 three-phase internal control prepayment watt hour meter are respectively used to measure single-phase and three-phase AC active energy with rated frequency of 50 Hz. They have the functions of prepayment, load control and RS485 communication, and their performance indexes meet the technical requirements of national standards iec62053-21 and iec62053-22.

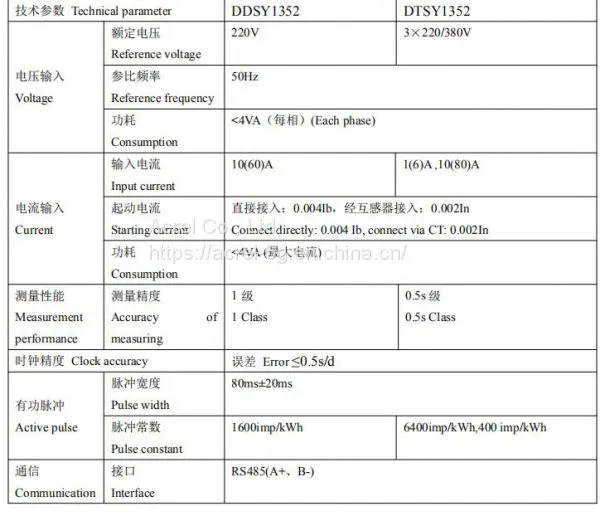

technical parameter
