Snya Industry 304 Stainless Steel Double Basket Mesh Cartridge Liquid Water Filter Strainer Purifier Purification Filtration Machine System two water filtration systems for technical water supply for hydropower plant
USD $1000 - $6000
/ Set
1 Set(Min.Order)
- 5000 Set / Sets per Month
- Chongqing
- T/T
- 30 days
You May Like
-
Hkw-P Completely fully Automatic Horizontal Water Filter Strainer Purifier Purification Machine for technical cooling water supply for hydroelectric power plant HPP HEPP SHPP SHEPP
-
DLS ZLSH Vertical Completely Fully Automatic Filtration Drainage Sewage Cleaning Water Filter for technical cooling water supply treatment for Hydropower hydroelecric power Plant HPP HEPP SHPP SHEPP
-
High Voltage HV Outdoor Switchyard Switching Point Switching Station Substation Hydroelectric Power Station Hydro Electric Power Plant HPP HEPP SHPP SHEPP Solar Power Plant
-
Kyn61 Xgn Indoor AC High Voltage HV Air Insulated Metal Clad Metal Closed Ring Network Electrical Switchgear Solid Insulated vcb Electrical Switchgear Power Control Cabinet Armored Type Movable AC Metal-Enclosed Gas Insulated Electrical Metal-Clad Switchg
-
Hydropower Hydroelectric Power Plant Automation Control System Protection and Monitoring System Relay Protection Cabinet Cubicle HPP HEPP SHPP SHEPP
-
Solar hydropower Variable Programmable Switching Switch Mode AC DC Power Supply Source Supplies System Online Modular UPS Uninterrupted Uninterruptible Power Supply for Computer Data Center Telecom
Product Details
| Brand Name: | Enrich | Place of Origin: | China | Model Number: | SNYa |
| Type: | Other, Snya Type Double Basket Water Filter | After-sales Service Provided: | Overseas service center available | Warranty: | 1 year |
| Condition: | New | Medium Material: | Other, 304 Stainless Steel Double Basket Mesh Cartridge |
Product Description

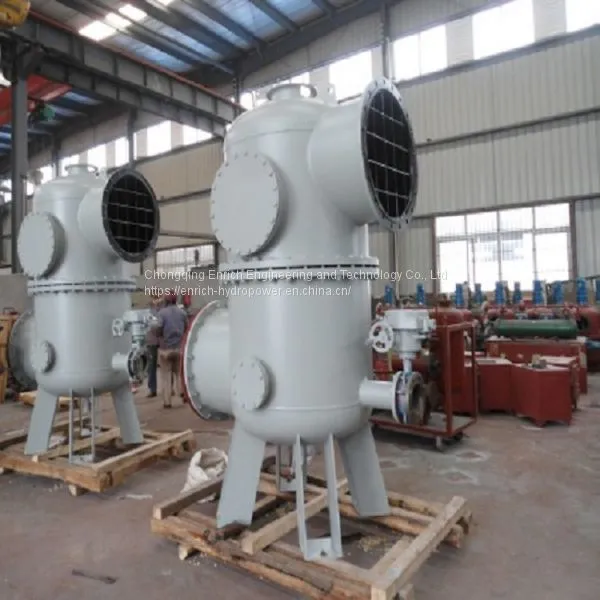

SNYa type double basket water filter
SNYa double basket water filter is designed as a whole by combining two sets of water filtration systems. When one set of filtration systems works, the other set does not work. The filter mesh/strainer/filter element can be removed and cleaned through the access hole/overhaul hole provided on the filtration system. Which set water filter works, it can be switched by a three-way valve or four sets of stop valves on the inlet and outlet, which is convenient and quick.
SNYa water filter is suitable for various quality water filtration in power plants, power stations and other industrial and mining enterprises. It has large flow capacity and it is easy to clean. It is mainly suitable for filtering water at the inlet of pumps and also for filtering water in various water pipelines.

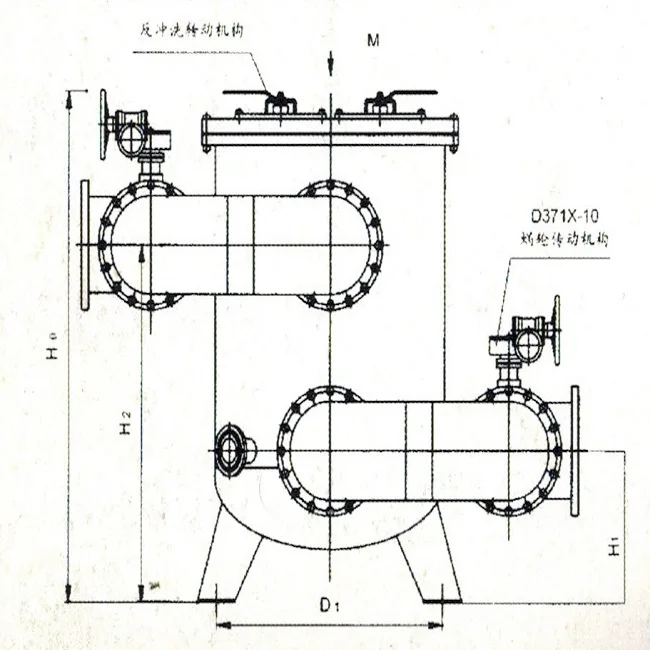

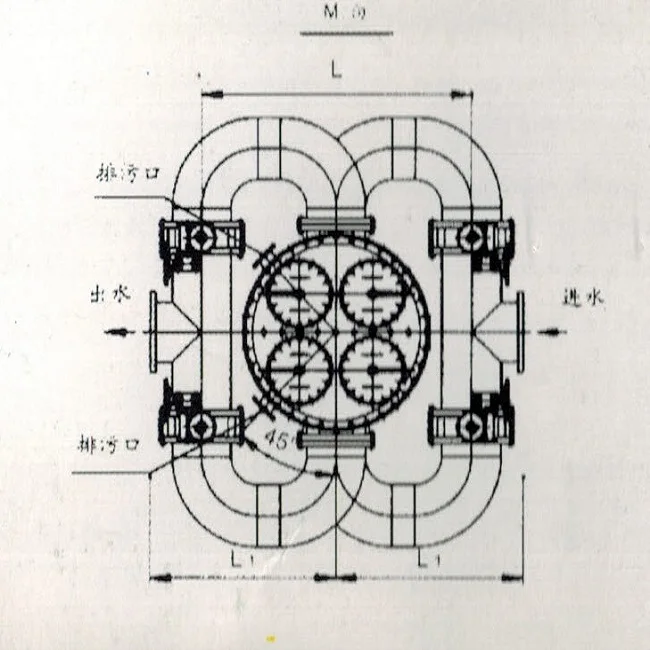

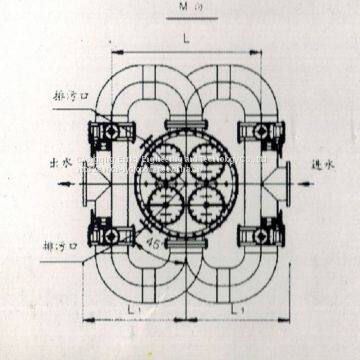

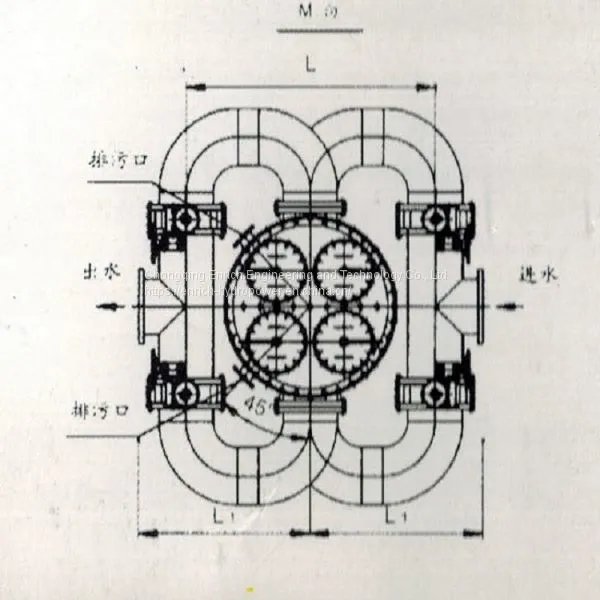

Technical parameters
Model/ specification |
Flow m3/h |
Inlet& outlet diameter |
Pressure MPa | H0 | H1 | H2 | D1 | L | L1 |
SNYa-50 | 22 | DN50/65 | 0.6,1.0,1.6 | 815 | 310 | 535 | 450 | 755 | 490 |
SNYa-80 | 54 | DN80 | 955 | 320 | 655 | 500 | 900 | 595 | |
SNYa-100 | 85 | DN100 | 1020 | 335 | 690 | 550 | 960 | 635 | |
SNYa-125 | 115 | DN125 | 1180 | 380 | 810 | 600 | 1060 | 750 | |
SNYa-150 | 192 | DN150 | 1300 | 420 | 850 | 600 | 1100 | 790 | |
SNYa-200 | 315 | DN200 | 1450 | 450 | 920 | 800 | 1200 | 880 | |
SNYa-250 | 480 | DN250 | 1540 | 498 | 1035 | 850 | 1250 | 920 | |
SNYa-400 | 1150 | DN400 | 2160 | 650 | 1540 | 1250 | 1950 | 1350 |
