Vacuum Dispersing and Emulsifying Machine Electric Heating Water and Oil Mixing Equipment for Cosmetic Cream

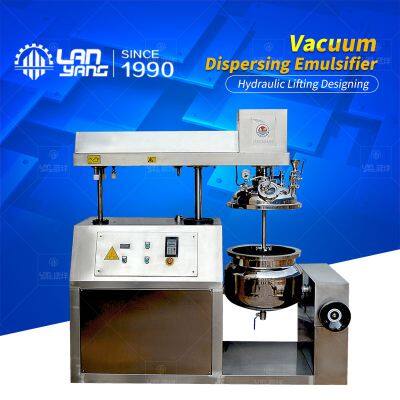

Vacuum Emulsifier

I.     Intended purpose and scope of application

1.    Intended purpose

The vacuum emulsifier is a piece of key production equipment for medium and high-grade cosmetics improved on advanced foreign equipment.

The vacuum emulsifier has quick homogenization, heating, cooling and vacuum degasification functions, features excellent homogenization and emulsification effects (particle size up to 2-3um), sanitary production conditions, high heating efficiency, reliable electric control, stable operation, easy operation and maintenance, and low labor intensity. It is ideal for the production of cosmetic creams, pastes and lotions and high-viscosity materials, such as drugs, foods and fine chemicals.

2.    Scope of application

(1)  Daily chemical and cosmetic industry: skin creams, shaving creams, paste shampoos, toothpastes, cold creams, sun creams, cleansers, nutrition lotions, detergents, shampoos, etc.

(2)  Pharmaceutical industry: latexes, emulsions, ointments, oral syrups, etc.

(3)  Food industry: thick pastes, cheese, oral liquids, infant foods, chocolates, sugar cooks, etc.

(4)  Chemical industry: latexes, pastes, saponified products, paints, coatings, resins, adhesives, detergents, etc.

II.    Key technical parameters

1.    Emulsifier

(1)  Working volume: 100L, 200L, 300L, 500L, 600L, 800L, 1000L, 2000L.

(2)   Heating, cooling: Heat the pan jacket with 0.25Mpa steam or electrically; supply water for cooling.

(3)  Material temperature:<100℃

(4)  Vacuity: negative pressure –0.07Mp (gauge); during agitation, a negative pressure shall be present in the pan

(5)  Agitator: step-less variable frequency speed regulation within 0-60rpm

(6)  Homogenizer: step-less variable frequency speed regulation within 0-2800rpm

2.    Dissolving pan

(1)  Working volume: 70L, 100L, 150L, 200L, 300L, 400L, 500L, 600L, 700L, 800L, 1000L, etc

(2)  Heating: Heat the pan jacket with 0.25Mpa steam or electrically.

(3)  Agitator: using a vertical high shear homogenizing emulsifier or by ordinary means

(4)  Power: 0.55-11kw
