Shimpo Nidec 750w ac servo motor planetary gear box speed reducer VRSF-9D-750-GV

Shimpo Nidec 750w ac servo motor planetary gear box speed reducer VRSF-9D-750-GV

Specifications:

1.this gear box is made by shimpo nidec factory which is whole new and original

2. planetary gear box is perfectly suitable for all kinds of servo motors  especially in  for elevator and other industrial machine like CNC machine, cutting machine

3.except 9:1gear ratio, many others we also can supply

4. Beside shimpo nidec, we also can supply other brands like harmonic drive, Delta, Teco, Yaskawa, siemens, inovance and Estun

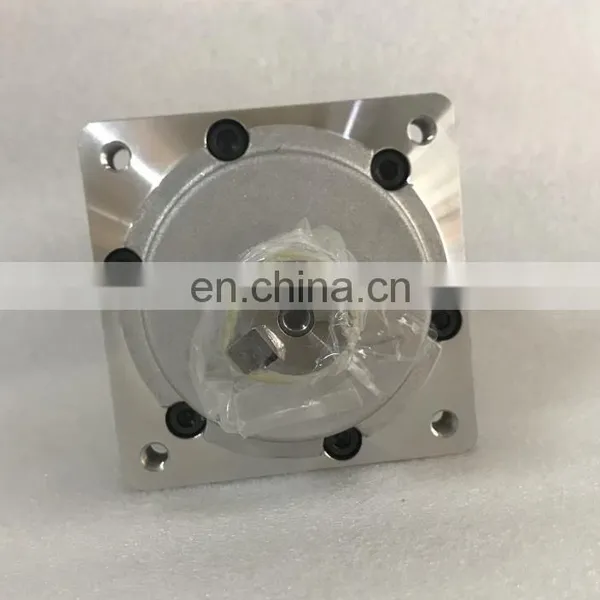

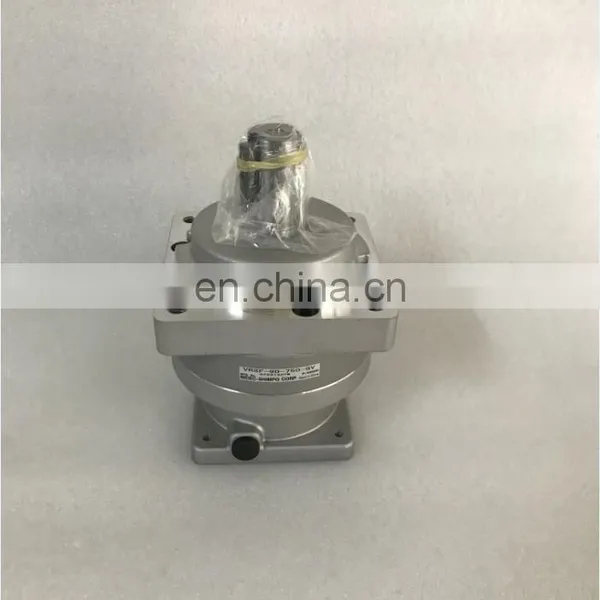

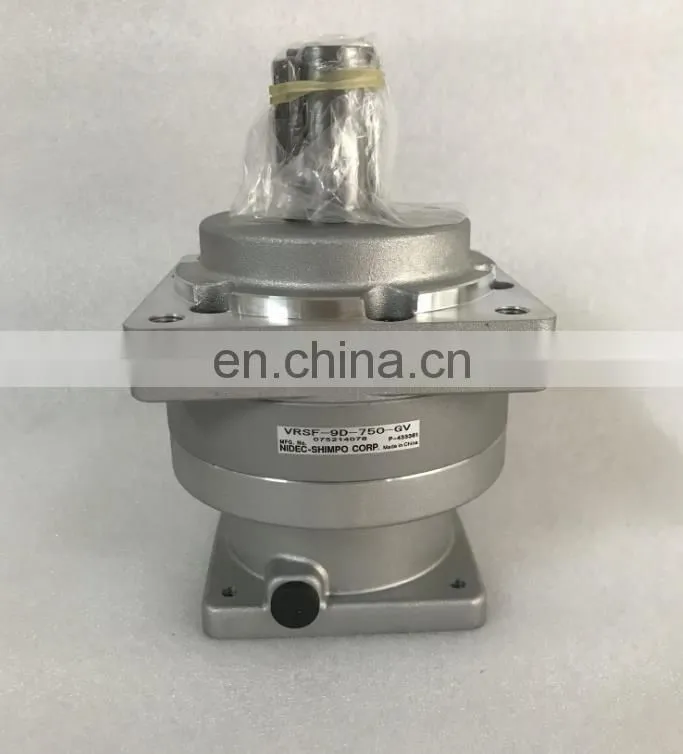

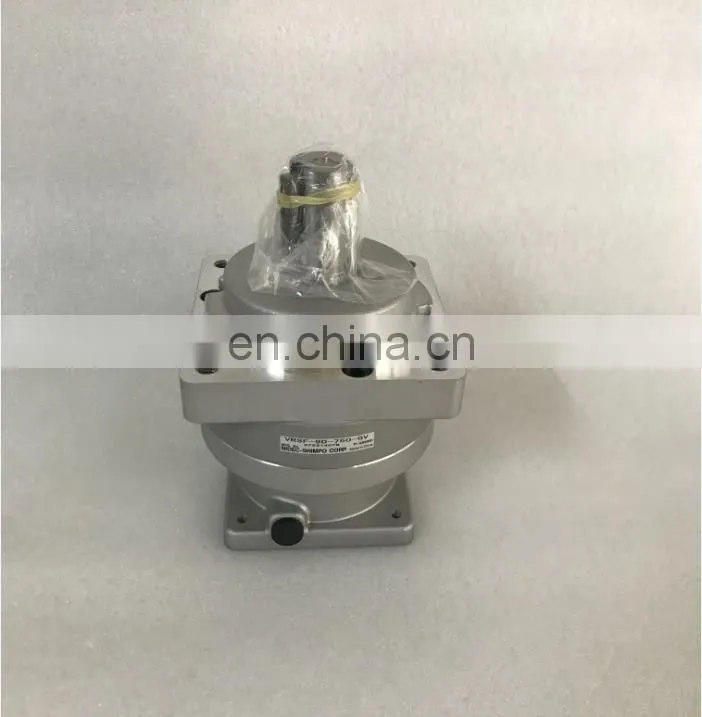

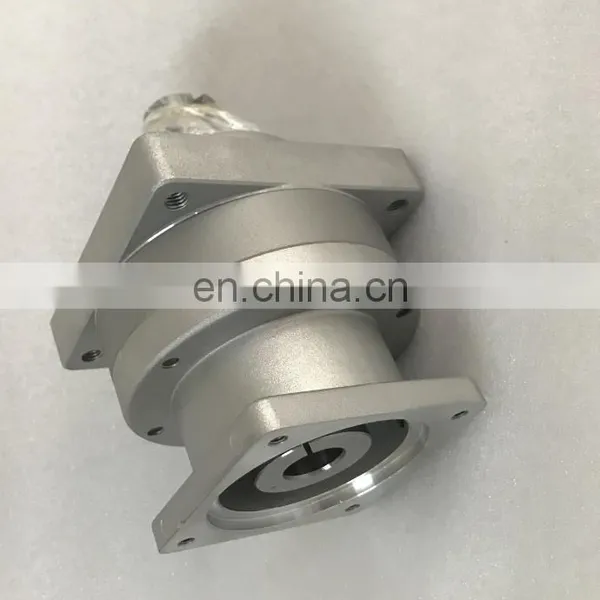

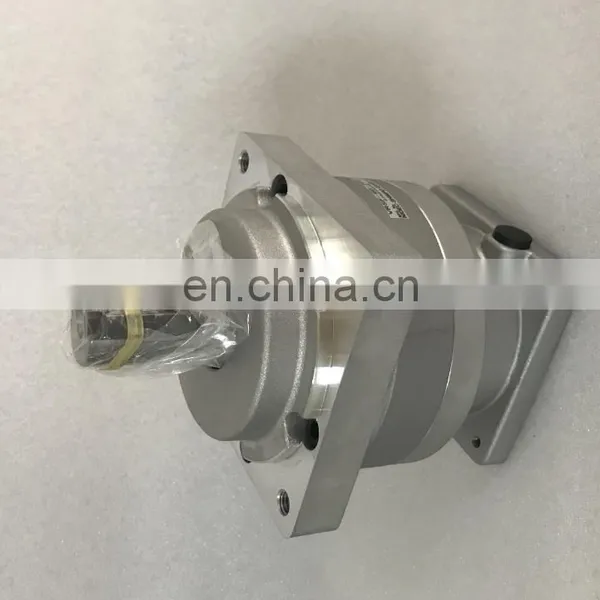

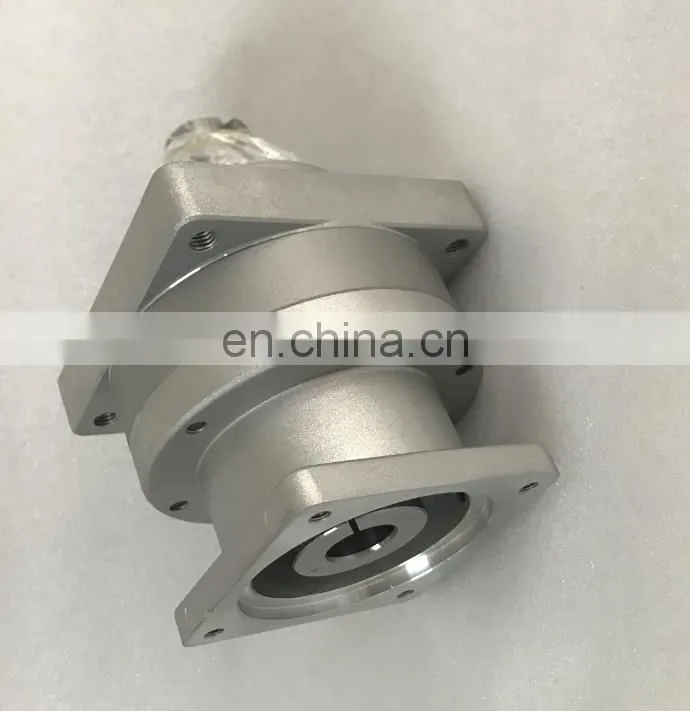

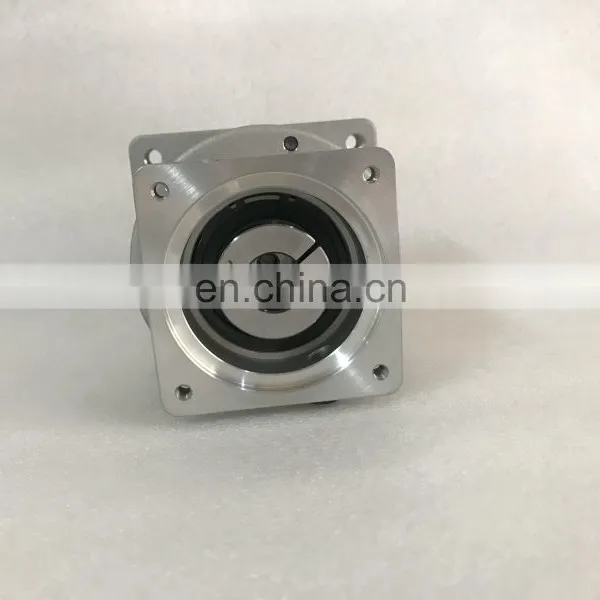

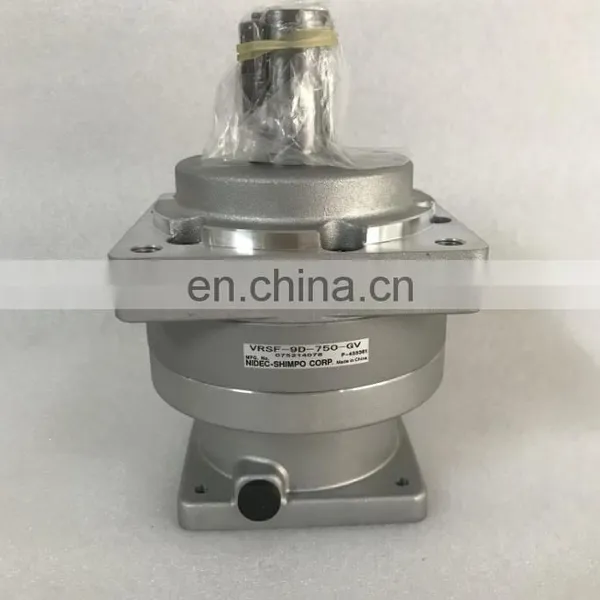

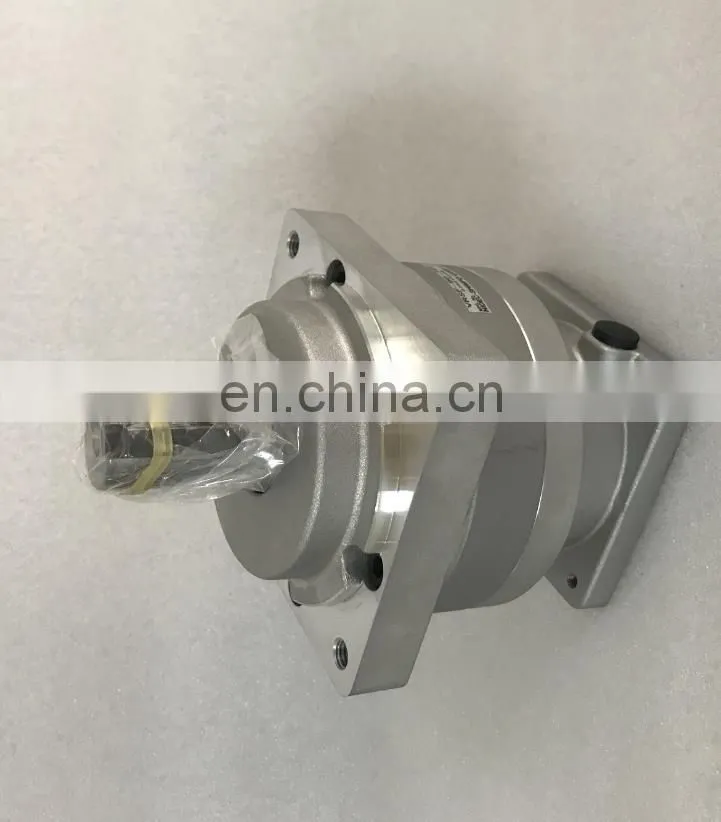

Detailed pictures:

Application of Servo Drive:

 Planetary Gearbox for Stepper Motor & Servo Motor:

1) Series: PLE, PLF, PLS, WPL, WPLF
2) Gearbox outline dimension: 40, 57, 60, 70, 80, 86, 90, 110, 115, 120, 130, 142, 160, 190mm
3) Reduction ratio:

                             1 Stage: 3:1, 4:1, 5:1, 8:1, 10:1

                             2 Stage: 9:1, 12:1, 16:1, 15:1, 20:1, 25:1, 32:1, 40:1, 64:1, 100:1

                             3 Stage: 60:1, 80:1, 100:1, 120:1, 160:1, 200:1, 256:1, 320:1, 512:1, 1000:1
4) Lubrication: Lifetime lubrication

5) Output type: Round and Square
6) Input speed: 3000- 8000rpm
7) Life: 30, 000 hours
8) Backiash: Stage 1: <3 (arcmin)
                    Stage 2: <6 (arcmin)
                    Stage 3: <8 (arcmin)
9) Operating temperature: -25C to +90C

Our New invent heavy-duty double support structure, carrying capacity & overload capacity has been doubled.

It's easy to install and same size with the mainstream of Taiwan, could directly replace PHT/VGM high-end planetary reducer.
