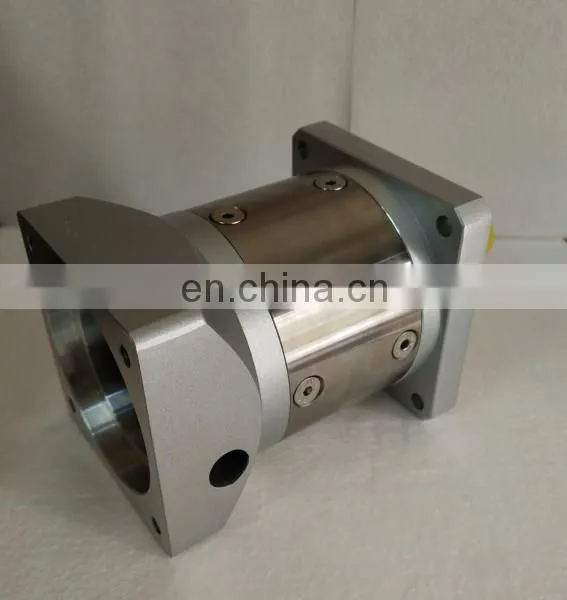

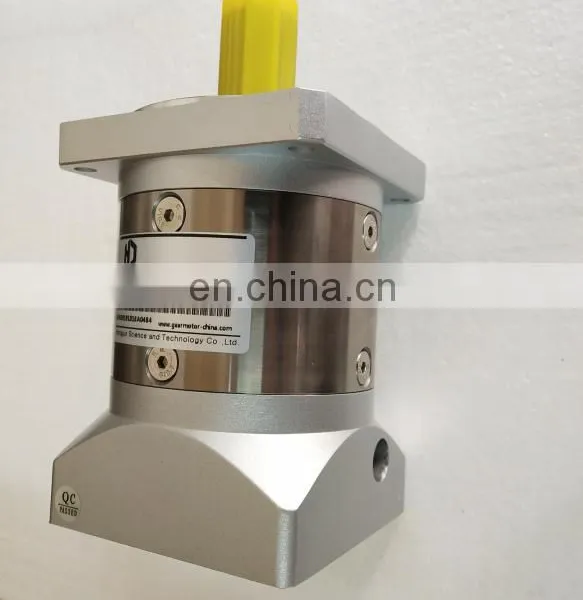

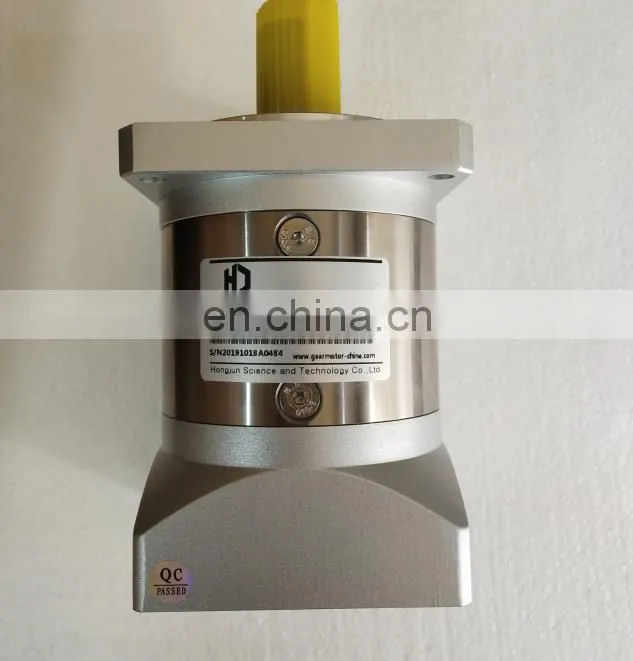

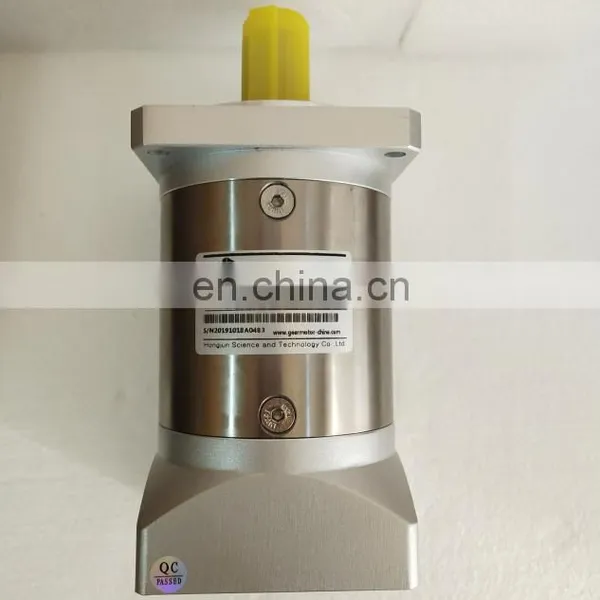

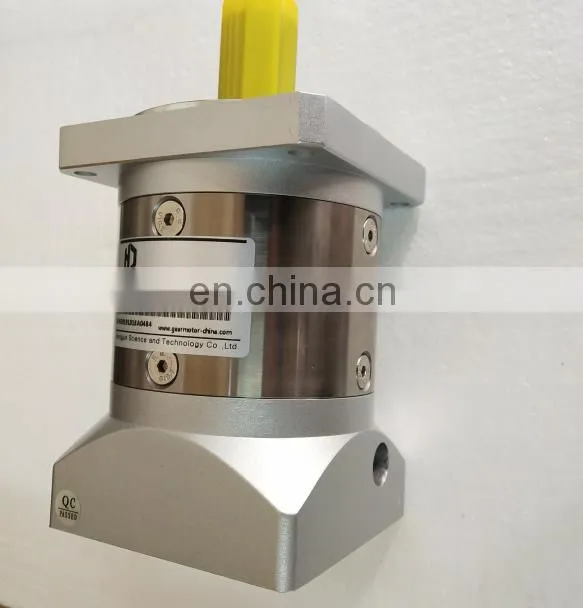

High Precision Planetary Gear Box 80mm PLF 80 10:1 Speed Reduction
- 1000 Piece / Pieces per Month
- T/T Credit Card
You May Like
-
Second Stage Planetary Gear Box Speed Reducer Nema23 60mm Stepper Motor 80:1 Ratio
-
Hongjun Planetary Gear Box PLX 142 Second Stage Speed Reducing For Servo Motor
-
Nema 34 gear ratio 100 Torque 120N.m 90 degree planetary gearbox for servo motor
-
Planetary Gearbox Servo Motor Speed Reducer PLF 120 35:1 Ratio Second Stage
-
Planetary Gear Box High Torque Second Stage PLE 80MM 16:1 Gear Ratio
-
Planetary Gear Box Stepper Motor Second Stage Speed Reducer PLF90 28:1
Product Details
Brand Name | Hongjun | Place of Origin | Sichuan, China | |
Output Speed | 150rpm | Input Speed | 3000rpm | |
Output Torque | High torque | Gearing Arrangement | Planetary |
Product Description

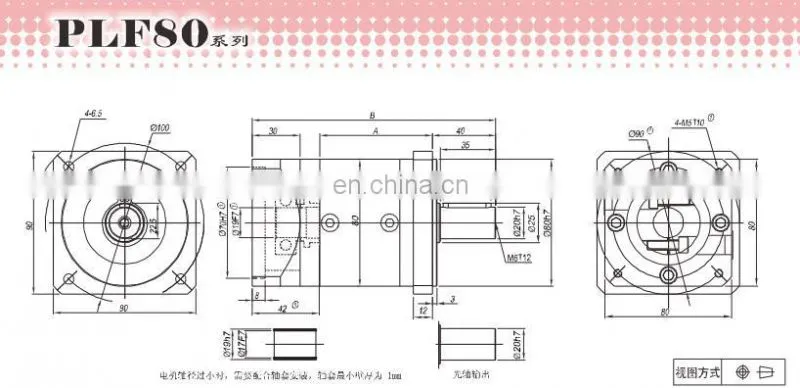

High Precision Planetary Gear Box 80mm PLF 80 10:1 Speed Reduction
Series | PLE, PLF, PLS, PLX, WPLE, WPLF | ||
Gearbox outline size (mm) | 40, 60, 80, 90, 142, 160, 190, 242 | ||
Stage | Single stage | Two stage | Three stage |
Ratio | 3:1, 4:1, 5:1, 7:1, 8:1, 10:1 | 12:1, 16:1, 20:1, 25:1, 28:1, 35:1, 40:1, 50:1, 70:1 | 64:1, 80:1, 100:1, 125:1, 140:1, 175:1, 200:1, 250:1, 350:1, 400:1, 500:1, 700:1, 1000:1 |
Rated input speed (rpm) | 3500 | 3500 | 3500 |
Max input speed (rpm) | 6000 | 6000 | 6000 |
Efficiency (%) | 96 | 94 | 90 |
Lowest backlash (arcmin) | 3 | 6 | 8 |
Noise (dB) | ≤62 | ≤62 | ≤62 |
Life (h) | 30000 | ||
Lubrication | Lifetime lubrication | ||
Level of protection | IP65 |
As one of the most professional planetary gearbox manufacture in China, Hongjun Science and Technology Co. Ltd. has been specializing in this field for over 10 year. Our factory, which has very proven technique of producing planetary gear box, has pretty strong research and development ability. Since our decades of hardworking, nowadays we have developed long term business relationship with many customers from all over the world. In Europe, our reducers are widely used to replace famous brand precision planetary gearbox, such as NEUGART, to build new cnc machines, machinery arms and robots, because of our good quality and price.
3 stages ratio 60:1 / 80:1 planetary gearbox
Generally, our small planetary gearbox are packaged with carton, big one will be packaged with wooden case. All reducers will be protected with soft material inside the box. We can also accept customized packaging method.
Samples planetary reducer will be shipped in 5 days. Bulk order lead time is up to the quantity.
About the shipping method, we support DHL, TNT, FedEx, EMS, UPS door to door, and also by sea, by air.
1. On receiving Inquiries or any other messages from customers, we promise to reply in several hours. We're on line for customers for a very long time every day;
2. We supply our customers not only standard planetary gearbox, but also customized reducers;
3. After receiving payment, we'll arrange production at once. When production has been finished, goods will be shipped with well and proper packaging soon.
4. We promise to give all our customers perfect after-sales services.
any question, please contact Cathy Wang
wechat/whatsapp:+8617348068636
