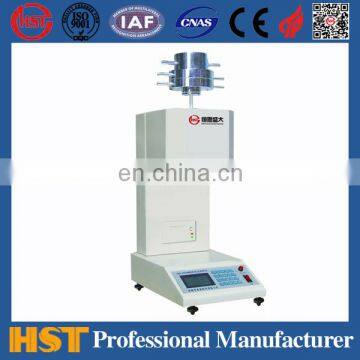

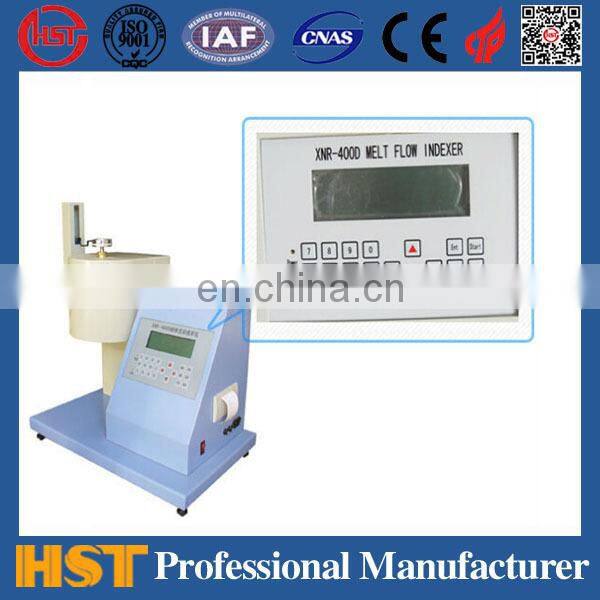

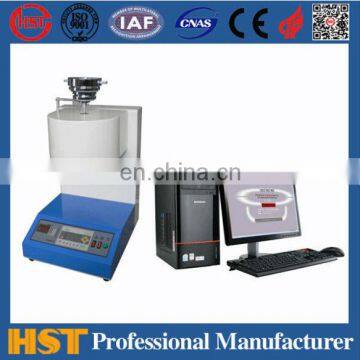

XNR-400D Hot Sale Melting Point Testing Machine for Plastic Testing Equipment
Melting Point Testing Machine
Application
XNR-400D Melt Flow Index Tester is accordance to ISO1133; GB3682 2000, ASTM D1238. It's suitable to
measure melt flow character of PP, PE, POM, ABS plastics and plastic productions, widely used in factories,
products quality testing station, scientific and research institutes, and concerned industries
Main Specification
Extrusion discharging part:
Diameter of discharging outlet: Φ2.095±0.005mm
Length of discharging outlet: 8.000±0.025mm
Diameter of charging barrel: Φ9.550±0.025mm
Length of charging barrel: 152±0.1mm
Diameter of piston rod head: Φ9.475±0.015mm
Length of piston rod head: 6.350±0.100mm
Standard load of test (eight class)
Grade 1: 0.325kg=(piston rod + scale pan+ lagging + No.1 weight=3.187N
Grade 2: 1.200 kg=(0.325+ No.2 weight 0.875)=11.77 N
Grade 3: 2.160 kg=(0.325+ No.3 weight 1.835)=21.18 N
Grade 4: 3.800 kg=(0.325+No.4 weight 3.475)=37.26 N
Grade 5: 5.000 kg=(0.325+ No.5 weight 4.675)=49.03 N
Grade 6: 10.000 kg=(0.325+No.5 weight 4.675+No.6 weight 5.000)=98.07 N
Grade 7: 12.500 kg=(0.325+No.5 weight 4.675+No.6 weight 5.000+ No.7 weight 2.500)=122.58 N
Grade 8: 21.600 kg=(0.325+No.2 weight 0.875+No.3 weight 1.835+No.4 weight 3.475+No.5 weight 4.675+No.6 weight 5.000+No.7 weight 2.500+No.8 weight 2.915)=211.82 N
A. Relative error of test load≤0.1%
B.Range of temperature: Room temperature50---450°C.
C. Accuracy of constant temperature:±0.1°C
D. Power supply:220V±10%,50Hz
E. Working environment: The temperature is 10°C—40°C, relative humidity is 30%—80%, no corrosive medium around,no strong air convection,no shake,no disturb from magnetic field
F. Resolution:0.1°C
G. Overall dimension (L x W x H)(mm):510×370×600
H. Host weight: 25kgs weights: 21.6kgs
Configuration
Host-----------------------------------------------------------------------------------------------1 pc
Weight--------------------------------------------------------------------------------------------8 pc
Water level------------------------------------------------------------------------------------- 1 pc
Mouth mold-------------------------------------------------------------------------------------1 pc
Mouth mold clean rod-----------------------------------------------------------------------1 pc
Chargingbarrel--------------------------------------------------------------------------------1 pc
Loading rod------------------------------------------------------------------------------------1 pc
Hopper (stainless steel)--------------------------------------------------------------------1 pc
Sampling plate--------------------------------------------------------------------------------1 pc
Instruction, packing list, quality certificate---------------------------------------------1 set
Plastic Melt Flow Index Tester
Melting Point Testing Machine
1. What about your delivery time?
A: We have skilled workers and professional work division for assembly and checkout. Usually, our delivery time is 7~14days.
2. What about the transportation?
A: We have stable forwarding agent for Air transportation and Sea transportation. And also express delivery of TNT, DHL.
3. What about your packaging?
A: Digital material universal testing machine packed with export standard wooden box.
Melting Point Testing Machine
After-sales service commitment
Warranty
The testing machine is guaranteed for a year by Jinan Kason Testing Co., LTD and has whole-life service
(including machinery, clamps, hardware, software).
Training
1. We will provide you the operation video about how to install and operate the equipment. We also sincerely
welcome every customer to visit and learn the equipment operation.
2. We can arrange engineer to train the operation of equipment to customer’s company when you need.
Maintenance services
Consultation services. We answer your question timely via the telephone or email.
Our exquisite technology, excellent quality, competitive price, good service and you give us the concern and
support, there will be enjoyable and long-term friendly cooperation.
