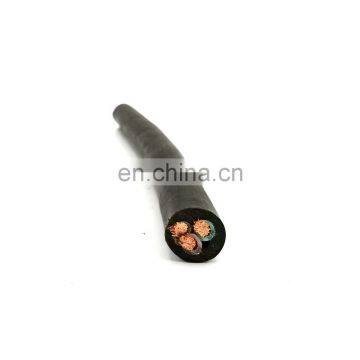

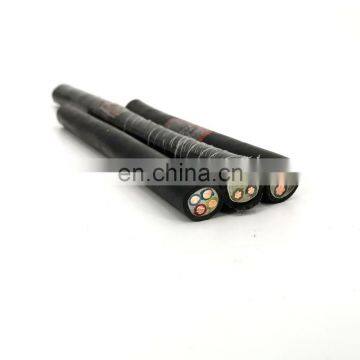

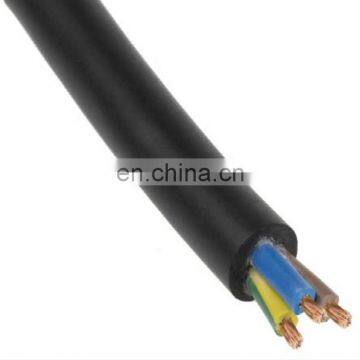

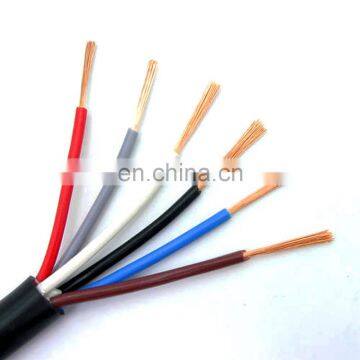

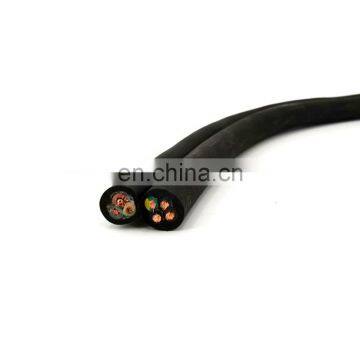

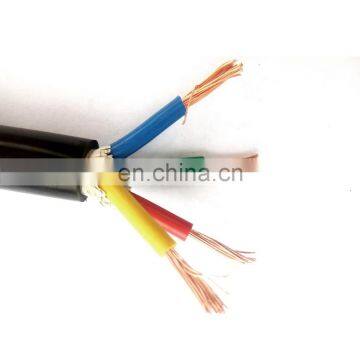

copper cable with flexible plastic covering wire
USD $0.1 - $9.9
/ Meter
100 Meters(Min.Order)
- 1000 Kilometer / Kilometers per Month
- QINGDAO SHANGHAI
- T/T Credit Card
You May Like
-
h07v u nya cable single core pvc insulated solid wire electric cable
-
solid copper 2.5mm 4mm 6mm 10mm 16mm green yellow ground wire
-
2x0.75mm twisted pair cable manufacturers
-
60227 IEC 53 RVV BVR 25mm Flexible DC Electrical Cable 55mm 15mm 4mm 6mm Stranded CU Electric Wire
-
pure bare copper wire 99.99% copper conductor wire
-
india Electrical wires
Product Details
Brand Name: | RMJT | Place of Origin: | Henan, China | Model Number: | RV H05V-K H07V-K |
Type: | Insulated | Insulation Material: | PVC | ||
Conductor Material: | Copper |
Product Description

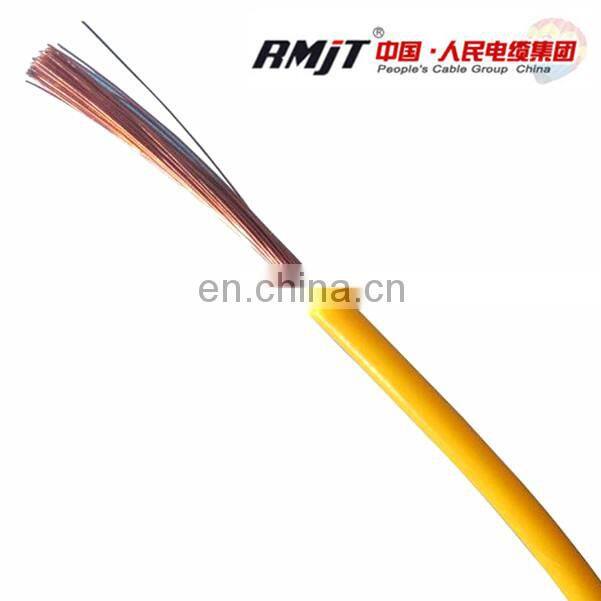

copper cable with flexible plastic wire covering
Product Description
Specifications
- 1.HO7V-K wire
- 2 Single core
- 3 1.5--120 MM2
- 4 IEC60227,BS6004,GB/T 5023,JB/T 8734
1. Reference Standard:
The product is manufactured according to the stand of GB12706 or IEC,BS,upon request.
Applications:
The product is suitable for power installation fixed wiring or flexible connection for electrical appliances with rated voltage up to and including 450/750V respectively
2. Description:
Rated voltage: 300/500V 450 / 750v Conductor: BS 6360 Class 5,stranded, annealed copper wire Insulation: BS 7655TII PVC Compound Insulation Color: Red, Yellow, blue, black, green, white, purple, grey, orange, pink Operating temperature: 0 to 70 degrees C Min bending radius: 6xoverall insulated diameter Standard: BS 6004 Code: H05V-K, H07V-K | |||||
Nominal cross-sectional area mm2 | Conductor (No./mm) | Approx. Dia. of cable (mm) | Mass of wire (Kg/km) | Conductor DC resistance at 20°C (Ω/km) | Conductor DC resistance at 70°C (Ω/km) |
H05V-K | |||||
0.5 | 16/0.2 | 2.5 | 9.5 | 39 | 0.014 |
0.75 | 24/0.2 | 2.7 | 13.1 | 26 | 0.013 |
1 | 32/0.2 | 2.8 | 16 | 19.5 | 0.011 |
H07V-K | |||||
1.5 | 30/0.25 | 3.4 | 21.3 | 13.3 | 0.01 |
2.5 | 49/0.25 | 4.1 | 32.5 | 7.98 | 0.009 |
4 | 56/0.3 | 4.8 | 49.6 | 4.95 | 0.007 |
6 | 84/0.3 | 5.3 | 69.3 | 3.3 | 0.006 |
10 | 84/0.4 | 6.8 | 117.8 | 1.91 | 0.0056 |
16 | 126/0.4 | 8.1 | 171.2 | 1.21 | 0.0046 |
25 | 196/0.4 | 10.2 | 268.8 | 0.78 | 0.0044 |
35 | 276/0.4 | 11.7 | 359.2 | 0.554 | 0.0038 |
50 | 396/0.4 | 13.9 | 505.3 | 0.386 | 0.0037 |
70 | 360/0.5 | 16 | 720.5 | 0.272 | 0.0032 |
