BS6004 stranded copper conductor PVC insulated electrical wire housing wire

FOB Price

USD $0.1 - $20 / Meter

100 Meters(Min.Order)

Supply Ability 1000000 Meter / Meters per Month
Port QINGDAO SHANGHAI
Payment Terms:T/T Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price

Product Details

Brand Name:	RMJT	Place of Origin:	Henan, China	Model Number:	RV H05V-K H07V-K
Type:	Insulated	Insulation Material:	PVC
Conductor Material:	Copper	Conductor Type:	Stranded

Product Description

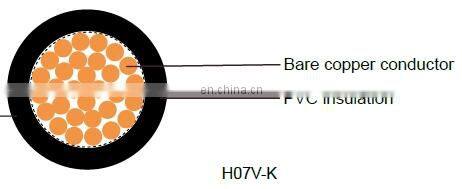

BS 6004 H05V-K H07V-K stranded copper conductor PVC insulated electrical house wire

Conductor

Class 5 flexible plain copper conductor to
BS EN 60228:2005 (previously BS6360)

Insulation
PVC (Polyvinyl Chloride) Type TI 1 to BS7655

Insulation Colour
Black, Blue, Green/Yellow, Red, Yellow, White, Violet, Brown, Grey, Orange, Pink

Voltage Rating
H05V-K 300/500V, H07V-K 450/750V

Temperature Rating
0°C to +70°C

Minimum Bending Radius
6 x overall diameter

Applications of stranded copper conductor PVC insulated electrical house wire:

H05V-K H07V-K copper conductor PVC insulated electrical wire designed for use in the switch control, relay and instrumentation panels of power switchgear and for purposes such as internal connectors in rectifier equipment, motor starters and controllers.

Specifications of H05V-K H07V-K stranded copper conductor PVC insulated electrical house wire:

Nominal cross-sectional area mm2	Conductor (No./mm)	Approx. Dia. of cable (mm)	Mass of wire (Kg/km)	Conductor DC resistance at 20°C (Ω/km)	Conductor DC resistance at 70°C (Ω/km)
H05V-K
0.5	16/0.2	2.5	9.5	39	0.014
0.75	24/0.2	2.7	13.1	26	0.013
1	32/0.2	2.8	16	19.5	0.011
H07V-K
1.5	30/0.25	3.4	21.3	13.3	0.01
2.5	49/0.25	4.1	32.5	7.98	0.009
4	56/0.3	4.8	49.6	4.95	0.007
6	84/0.3	5.3	69.3	3.3	0.006
10	84/0.4	6.8	117.8	1.91	0.0056
16	126/0.4	8.1	171.2	1.21	0.0046
25	196/0.4	10.2	268.8	0.78	0.0044
35	276/0.4	11.7	359.2	0.554	0.0038
50	396/0.4	13.9	505.3	0.386	0.0037
70	360/0.5	16	720.5	0.272	0.0032
