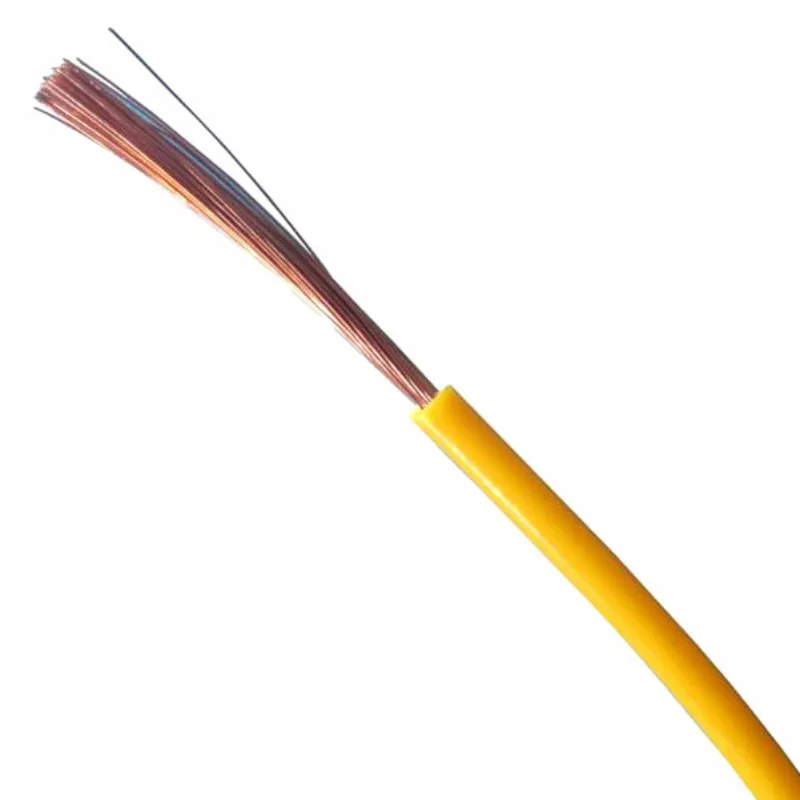

Single core 1.5 / 2.5mm copper pvc insulation wiring electrical cable

FOB Price

USD $0.33 - $1.73 / Meter

100 Meters(Min.Order)

Supply Ability 2147483647 Meter / Meters per Month
Port Qingdao Shanghai
Payment Terms:T/T Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price

Product Details

Brand Name:	RMjT	Place of Origin:	Henan, China	Model Number:	PVC Coated Wire
Type:	Insulated	Insulation Material:	PVC
Conductor Material:	Copper

Product Description

Single core 1.5 / 2.5mm copper pvc insulation wiring electrical cable

The electrical wire generally consist of a conductive core, an insulating layer, and a protective layer. The core can be divided into four types: hard, soft, mobile and extra soft. There are four types of cores: single core, two core, three core and four core. The insulating layer is generally made of rubber, plastic, and the like. It is widely used in various instruments, telecommunications equipment, power lines and lighting lines with AC voltage below 500V and DC voltage below 1,000V.

Product Structure

The wire and cable are composed of a conductor, an insulation layer, and a protective layer.

Conductor

The conductor is the conductive part of the wire and cable, which is used to transport electrical energy and is the main part of the wire and cable.

Insulation

Insulation layer is to electrically isolate the conductor from the ground and conductors of different phases from each other to ensure the transmission of electrical energy. It is an indispensable part of the wire and cable structure.

The protective layer
The function of the protective layer is to protect the wires and cables from the invasion of foreign impurities and moisture, and to prevent external power from directly damaging the power cables.

No.	Type	Description
1	60227 IEC 01(BV)	Single core rigid conductor unsheathed cable for general purposes(H07V-U or H07V-R)
2	60227 IEC 02(RV)	Single core flexible conductor unsheathed cable for general purposes(H07V-K)
3	60227 IEC 05(BV)	Single core 70℃ solid conductor unsheathed cable for internal wiring(H05V-U or H05V-R)
4	60227 IEC 06(RV)	Single core 70℃ flexible conductor unsheathed cable for internal wiring(H05V-K)
5	60227 IEC 07(BV-90)	Single core 90℃ solid conductor unsheathed cable for internal wiring(H07V-U or H07V-R)
6	60227 IEC 08(RV-90)	Single core 90℃ flexible conductor unsheathed cable for internal wiring(H07V-K)
7	60227 IEC 10(BVV)	Light PVC sheathed cable(NYY or NYM)
8	60227 IEC 42(RVB)	Flat unsheathed flexible wire
9	60227 IEC 52(RVVB, RVV)	Light PVC sheathed flexible copper wire (H03VV-F,H03VVH2-F)
10	60227 IEC 53(RVVB, RVV)	Common PVC sheathed flexible copper wire (H05VV-F,H05VVH2-F)
11	BV	Copper conductor PVC insulated wire(H07V-U or H07V-R)
12	BLV	Aluminum conductor PVC insulated wire
13	BVR	Copper conductor PVC insulated flexible cable(H07V-R)
14	BVV	Copper conductor PVC insulated sheathed circular cable(NYY or NYM)
15	BLVV	Aluminum conductor PVC insulated and sheathed round cable
16	BVVB	Copper conductor PVC insulated and sheathed flat cable
17	BLVVB	Aluminum conductor PVC insulated sheathed flat cable
18	NMD	Copper conductor PVC/Nylon Insulated PVC Jacked flat cable
19	RVS	Twisted copper conductor PVC insulated flexible cable for conection
20	AVP	Copper conductor PVC insulated wire with shield for installation
21	RVP	Copper conductor PVC insulated flexible wire with shield
22	RVVP	Copper conductor PVC insulated, shielded, PVC sheathed flexible cable
......

Specification for BV BLV electrical wire cable

Nominal sectional area mm2	Conductor No/Dia. Mm	Nominal Insulated thick mm	Max overall Dia. Mm	Condcutor Resistance at 20			Min insulated resistance at 70MΩ/km	Weight Kg/km
Nominal sectional area mm2	Conductor No/Dia. Mm	Nominal Insulated thick mm	Max overall Dia. Mm				Min insulated resistance at 70MΩ/km		Cu	Al	Cu	Al
1.5	1/1.38	0.7	3.3	12.1	-	0.011	19.2	-
1.5	7/0.52	0.7	3.5	12.1	-	0.01	20.6	-
2.5	1/1.78	0.8	3.9	7.41	11.8	0.01	30.8	15
4	1/2.25	0.8	4.4	4.61	7.39	0.0085	45.5	21
6	1/2.76	0.8	4.9	3.08	4.91	0.007	65	29
10	7/1.35	1	7	1.83	3.08	0.0065	110	52
16	7/1.70	1	8	1.15	1.91	0.005	170	70
25	7/2.14	1.2	10	0.727	1.2	0.005	270	110
35	7/2.52	1.2	11.5	0.524	0.868	0.004	364	150
50	19/1.78	1.4	13	0.387	0.641	0.0045	500	200
70	19/2.14	1.4	15	0.268	0.443	0.0035	688	269
95	19/2.52	1.6	17.5	0.193	0.32	0.0035	953	360
120	37/2.03	1.6	19	0.153	0.253	0.0032	1168	449
150	37/2.25	1.8	21	0.124	0.206	0.0032	1466	551
185	37/2.52	2	32.5	0.099	0.164	0.0032	1808	668

Attention: We can provide more information than above data, if needed.The above are just some examples.

People's Cable Group Co., Ltd.

People's Cable Group Co., Ltd. Was founded in 2007, with good transport facilities which adjacent to the 310 national highway-Lian Huo highway. Our company had 2 factories(Zhitian factory and Zhulin factory), occupies total area of more than 300,000 square meters, with building area 230,000 square meters. The real capital assets more than 10 million USD, with 630 staff members, 65 of which are professional and technical experts.

Our mainly products as follow:

1.PVC insulated electric wire whatever copper conductor,aluminum conductor,CCA(copper clad
aluminum),CCS(copper clad steel).
2.PVC insulated power cable and xlpe insulated power cable with or without armor upto 35kv.
3.Rubber cable like welding cable, mining cable, control cable and so on.
4.Aerial bundled cable(ABC cable) up to 10kv, like Duplex ABC cable, Triplex ABC cable, Quadruplex ABC cable and so on.
5.Bare conductor like AAC, AAAC, ACSR, AACSR, ACAR, ACSR/AW, aluminum clad steel wire, galvanized steel wire and so on.

Our clients

Our certification

FAQ

Q1: When can I get the price?
We usually quote within 6 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in
your email so that we will regard your inquiry priority.
Q2: How can I get a sample to check your quality?
After price confirmation, you can require for samples to check our quality. Sample is free, but the freight charge should be paid.
Q3: How long can I expect to get the sample?
After you pay the freight charge and send us confirmed files, the samples will be ready for delivery in 3-7 days.
The samples will be sent to you via express and arrive in 3~5 days.
Q4: What about the lead time for mass production?
Honestly, it depends on the order quantity and the season you place the order.The best record we keep is delivering 10 kilometers cable within a week. Generally speaking, we suggest that you start inquiry two months before the date you would like to get the products at your country.
