High speed ZD MOTOR 32mm,20W/25W,24V Brushless DC Planetary Gear motor for fan

Name: High speed ZD MOTOR 32mm,20W/25W,24V Brushless DC Planetary Gear motor for fan
Brand: ZD MOTOR
Availability: InStock

FOB Price

USD $45 - $55 / Piece

1 Piece(Min.Order)

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price

Product Details

Brand Name:	ZD MOTOR	Place of Origin:	China	Model Number:	Z32BLDPN2420-40S/32PN_K
Type:	Gear Motor	Certification:	CCC, CE, ROHS, UL, CCC, CE, ROHS, UL	Torque:	0.16-4 N.M
Usage:	Boat, Car, Electric Bicycle, Fan, Home Appliance	Construction:	Permanent Magnet	Efficiency:	IE 2
Protect Feature:	Waterproof	Continuous Current(A):	1.3 A	Speed(RPM):	13- 1081 rpm
Commutation:	Brushless

MOTOR SPECIFICATION:

CONSTRUCTION:	BRUSH / BRUSHLESS
MOTOR OUTSIDE DIAMETER:	32mm / 42mm / 52mm / 62mm / 72mm / 82mm / 105 mm / 120mm
PLANETARY GEARBOX DIAMETER:	32mm / 42mm / 52mm / 62mm / 72mm / 82mm / 105 mm / 120mm
	Conventional products:62mm motor match with 62mm gearbox. Customized product: 62mm motor match with 52mm gearbox, 72mm motor match with 120mm gearbox( example)
VOLTAGE:	12 V / 24 V / 48 V
RATED POWER (watts):	20 / 25 / 40 / 60 / 90 / 120 / 150 / 180 / 200 / 300 ......750(MAX)
RATED SPEED(rpm):	450/540/750/1000/1500/2000/2500/3000 (can be customized)
PROTECTION GRADE:	IP 20 / IP 44 / IP 55 / IP 65 (According to customer request)
GEAR RATIO:	One Stage	Two stage	Three Stage
	3.65/5.36/6.55/8.63	13.53/18.92/24.65/28.05/33.92/44.69/58.22	67.08......392.98(can be customized)
	High speed	Medium speed	Low speed
	Output Torque Range:0.16 N.m---300 N.m ( can be customized)
SHAFT:	Diameter range:6 mm-32mm , keyway type / D-cut type / Bare type ( can be customized)
Accessories:	Encoder/ brake / connector

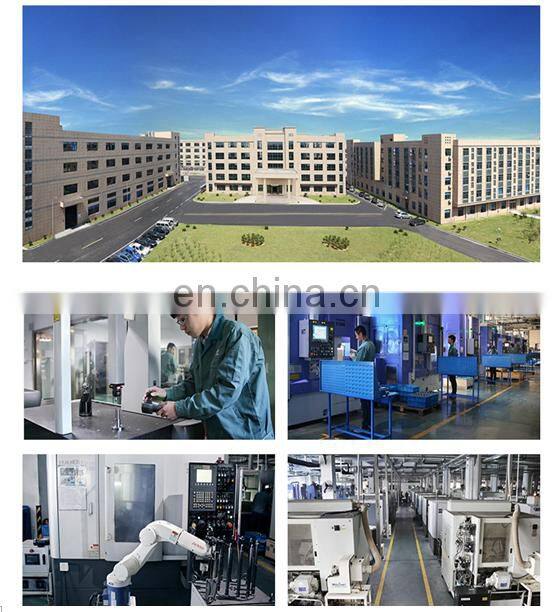

Company information:

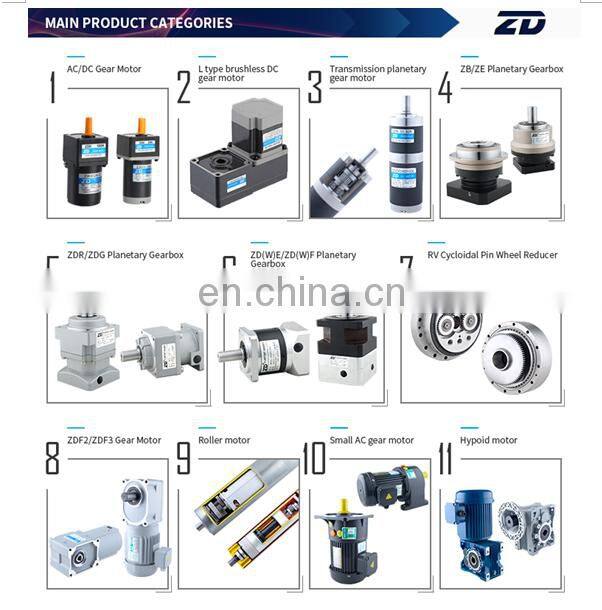

Product Categories
