10w Laser Cutter Sheet Metal Stencil Laser Depaneling Machine Smt Cutting Equipment

Name: 10w Laser Cutter Sheet Metal Stencil Laser Depaneling Machine Smt Cutting Equipment
Brand: YUSHUNLI
Availability: InStock

FOB Price

USD $10000 - $80000 / Set

1 Set(Min.Order)

Supply Ability 100 Set / Sets per Month
Port shenzhen
Payment Terms:T/T L/C D/P D/A Credit Card PayPal Other Cash Escrow

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price

Product Details

Brand Name:

YUSHUNLI

Place of Origin:

China

Model Number:

YS-SL6060

Product Description

1680*1500*1630mm300mm/S 1200KG 10w laser cutter Sheet metal stencil laser depaneling machine smt cutting equipment

1.Unique waste collection structure

Based on the new structure design, YS-SL6060 uses innovative waste and smoke collection system, which completely frees customers from "equipment stabilization killers" such as chips, slag, iron dust and so on. It greatly improves the service life and stability of the equipment.

2.High Power Fiber Laser

YS-SL6060 is a semiconductor-pumped solid-state high-power fiber laser with advanced technology. Increasing the cutting efficiency also greatly increases the types of Machinable products. It is easy to deal with both ordinary metal sheets and precise parts with a certain thickness.

3.Provide users with specialized process solutions

Professional fixture design, can adapt to a variety of sizes, shapes of materials, so that every minute of production belongs to laser cutting. This is not only a device, but also a set of equipment process system that can optimize the user's process and give full play to the maximum value of the equipment.

Equipment description.

1. Machine Name :High-speed laser sheet metal cutting machines .

2. Model: YS-SL6060 .

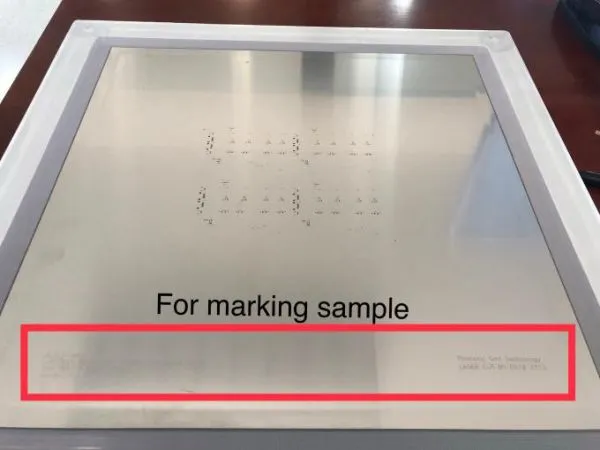

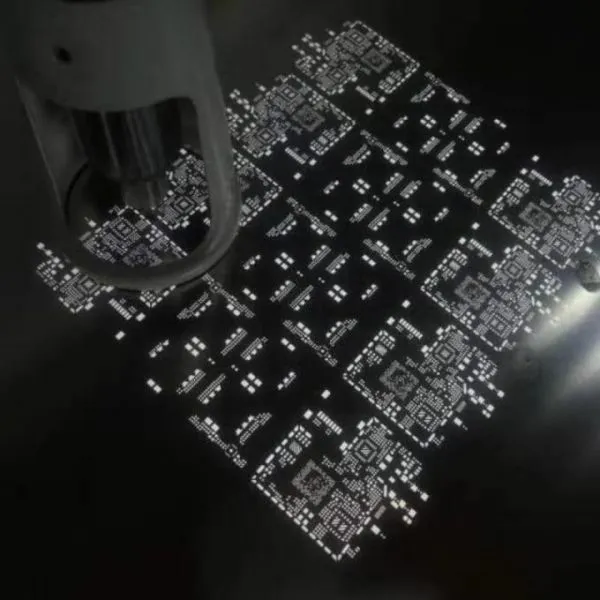

3. Applications : SMT templates, precision metal parts.

4. Equipment Properties :

Machine color	creamy-white
Total Weight	About 1500KG .
physical dimension	L1680W1500H1630mm
Platform	Granite base, with high stability and reliability.
Total power	Rated :2KW. Peak 6KW.
Power system requirements	Provide the regulator (AC 220V and single-phase 10KVA), in order to ensure to the power supply voltage fluctuations device does not exceed ± 5%.
Grounding Requirements	Provide independent and stable ground without loopholes interference. Ground line is: 6MM²
Environmental requirements	Offer supply of pure oxygen, the non-oil and gas and water vapor mixed, to avoid damaging optics. Ensure that equipment using ambient room temperature 24-26 ℃, and relative humidity below 60 ° indoor use. Clean environment.

5. Technical specifications.

Platform positioning accuracy	±3μm
Platform Repeatability	±1.5μm
Platform velocity	≤300mm/S
Location detection sub variability	0.1μm

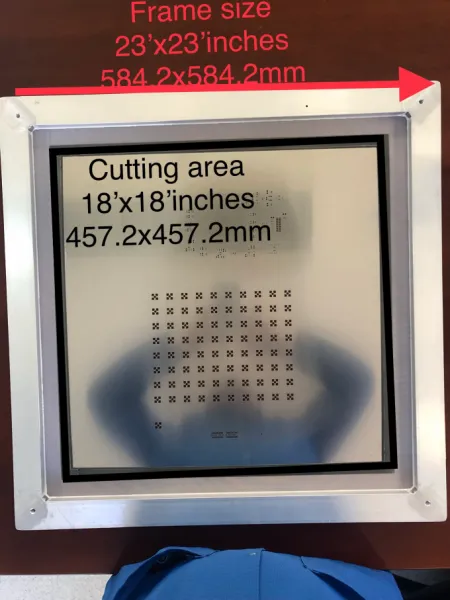

Cutting range	X 600mm * Y 600MM
Table size	X 620mm * Y 620MM
Cutting thickness	≤0.5mm (reference value)
Focus diameter	25-30μm
Best Cutting Effectiveness	Up to 9400 Synthetic Aperture / hr, 13000-14000 standard aperture / hour (with a diameter of 0.3mm standard round date). Scope is 0.15mm less steel).

6. Configuration Specification.

Laser light source Specifications
Laser Power	50W
Wavelength	1070 mm
Laser Weight	About 20KG
Beam delivery system
Dust-proof	Dust Cover
Control and drive systems
Control	PC-BASE CNC AC Servo Control
Drive	Linear motor drive
Guide	Precision linear guide rails
Others
CCD module	CCD fill holes focus, coaxial CCD light function.
Dust	Collect waste and zero-emission.
Blowing	Coaxial blow assist gas.
Fixture	Pneumatic clamping

Software system .

Software system	YUSH Mark
Language	Chinese/ English
Application Environment	Windows XP
File format	DXF ,CNC
Implementation monitoring	Cutting time, cutting the number of holes, the auxiliary gas, cutting state.
Software Features	1. CNC support directly open documents, DXF file, Gerber file and drawing were selected, rotate, mirror and other operations. 2. Support the establishment of different cutting parameters for different databases steel thickness stee 3. Support for documents path optimization. 4. supports automatic cutting member cutting case records to the query.
