Home > Products > Circulation Pump > SEAFLO 230V 400GPH Stainless Steel Magnet Drive Recirculation Pump

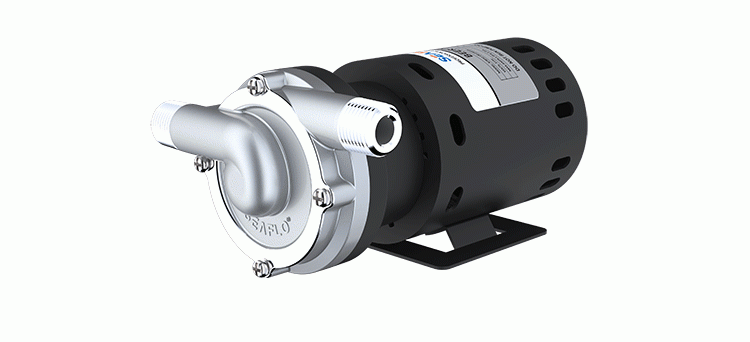

SEAFLO 230V 400GPH Stainless Steel Magnet Drive Recirculation Pump
- 1000 Piece / Pieces per Month
- T/T Credit Card
You May Like
-
SEAFLO 115V Power Food Grade Homebrewer Water Magnetic Drive Pump
-
SEAFLO 230V 400GPH Mini Liquid Pump Food Grade Home Brew Transfer Pump
-
SEAFLO 230V AC 400GPH Stainless Steel Magnetic Drive Beer Brewing Pump
-
SEAFLO 230V 400GPH Stainless Head Magnetic Brewing Beer Pump for homebrew beer
-
SEAFLO 230V 400GPH High Temp Magnetic Brewing Beer Pump Brew Beer brewing pump
-
SEAFLO dc Water Circulation Beer Party Pump for Heating System
Product Details
Brand Name | SEAFLO | Place of Origin | Fujian, China | |
Model Number | SFBPA2-LM-G400-01 | |||
Power | Electric | |||
Usage | Water | |||
Pressure | Low Pressure |
Product Description
Features & Benefits |
1.Flow rate up to 7.6 GPM [32.0 LPM] 3.Life Expectancy up to 15,000 hours 5.Bear up to 248 ℉ [120 ℃] 7.Quiet operation | 2.Stainless Steel food grade materials 4.Transfer hot and cole liquid 6.1/2" MPT inlet and 1/2" MPT outlet 8.High efficiency |
Product Name | SEAFLO 230V 400GPH Stainless Steel Magnet Drive Recirculation Pump |
Pump Type | Magnetic Drive Centrifugal High Temperature Circulation Pump |
Max Flow Rate | 7.6 GPM [32.0 LPM] |
Max Head | 18' [4 m or 8 PSI] |
Voltage | 230 AC, and 115v AC is available |
Frequency | 50 / 60 HZ |
Max Amp | 0.75A |
Fuse | 2.5 A |
Max Power | 116 W |
Duty Cycle | Continuous |
Housing Material | Stainless Steel |
Max Fluid Temp | 250 ℉ [120 ℃] |
Inlet Port | 1/2" MPT, and contact us for more ports |
Outlet Port | 1/2" MPT, and contact us for more ports |
Lead | 13" [33 cm] 16 AWG lead |
SEAFLO beer pump is made of food grade materials, very safe and reliable. Good heat dissipation, high temperature resistance, flame retardant materials. It can draw cold water and hot water. The life span is 15000 hours. High efficiency, the maximum flow rate is up to 29.5 LPM / 7.5GPM. The lift can reach 4M / 18FT. Do not run pump dry.

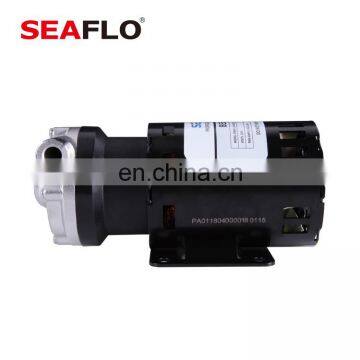

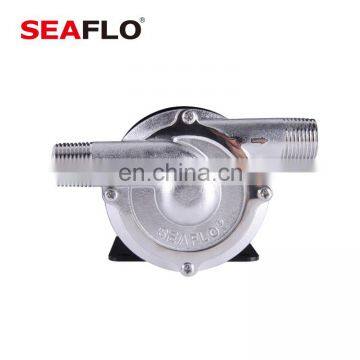

Product Show |
Dimensions |
Performance |
Motor Heat Rise |
Lacking
Product Details |
lacking
STANDARD PUMP CONFIGURATIONS
Model | Voltage | Frequency | Open Flow GPM [LPM] | Head | Power | Max Draw |
SFBPA1-LM-G400-01 | 115 V | 50 Hz | 7.6 [32.0] | 18 ft / 8 psi | 109 W | 1.45 A |
60 Hz | 7.6 [32.0] | 4 m | 108 W | 1.54 A | ||
SFBPA2-LM-G400-01 | 230 V | 50 Hz | 7.6 [32.0] | 18 ft / 8 psi | 116 W | 0.75 A |
60 Hz | 7.6 [32.0] | 4 m | 119 w | 0.85 A |
OEM/ODM service: Pls contact us for more open flow, head, material and etc.
Package Infomation
Unit Pump Weight | 5.95 lbs [2.70 kg] | |
Selling Unit Size (L x W x H) | 9.45" x 5.51" x 4.72" [24.0 x 14.0 x 12.0 cm] | |
Selling Unit Weight | 6.24 lbs [2.83 kg] | |
Master Carton Qty | 6 pcs / carton | |
Master Carton Size (L x W x H) | 15.16" x 12.20" x 10.04" [38.5 x 31.0 x 25.5 cm] | |
Master Carton Weight | 37.45 lbs [17 kg] |
Q: What is your MOQ?
A: 100 pieces in general, but no MOQ requirement for sample testing.
Q: Do you accept OEM/ODM service?
A: Yes. We are also the OEM/ODM supplier for many famous companies, such as Volvo, Bunnings etc.
Q: How can I pay for my order?
A: Please send order details to us. We will issue an order on Alibaba Trade Assurance, and send you the payment link.
Q: What is your terms of payment?
A: Payment≤3000USD, 100% in advance. Payment≥3000USD, 30% T/T in advance, balance against the copy of B/L. If you have another questions, pls feel free to contact us.
Q: What is the delivery time?
A: It depends on the order quantity. It usually takes 15-25 days upon receipt of your 30% deposit by T/T. Sample can be delivered within 7 days.
Q: Can I buy different products in one container?
A: Yes, you can mix different models of pumps in one container.
Q: What is your warranty?
A: 1 year, and within 24 hours reply will be provided to solve customers' problems.
Q: What is your port of loading?
A: Xiamen port.
Q: Do you have oversea agents?
A: We dont have oversea agents for Agriculture and Industrial. But for SEAFLO pumps applied in Marine & RV, we have agents in USA, UK, Denmark, Spain, Australia, Turkey, Yemen, Lebanon etc.
Q: Can I get more info?
A: Please visit or www.seafloin.en.china.cn for more information.
