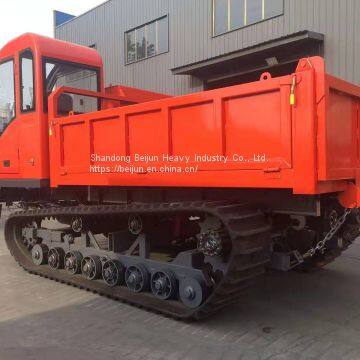

Crawler Dump Truck 6ton Tracked Dumpers Suitable to Muddy Surface

Crawler Dump Truck 6ton Tracked Dumpers Suitable to Muddy Surface photo-1
Crawler Dump Truck 6ton Tracked Dumpers Suitable to Muddy Surface photo-2
Crawler Dump Truck 6ton Tracked Dumpers Suitable to Muddy Surface photo-3
Crawler Dump Truck 6ton Tracked Dumpers Suitable to Muddy Surface photo-4
Crawler Dump Truck 6ton Tracked Dumpers Suitable to Muddy Surface photo-5
US$ 7350 - 10000 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
BJ
Place of Origin:
China
Model Number:
BJC-60
Payment & Shipping
Payment Methods:
Port of Shipment:
qingdao
Delivery Detail:
10 days
Brand Name BJ
Place of Origin China
Model Number BJC-60
Condition New
Transmission Type Automatic
Gross Vehicle Weight 6
Fuel Type Diesel
Emission Standard Euro 3
Drive Wheel 4x4
Dimensions (L x W x H) (mm) 4300*1800*1800
Engine Capacity 4 - 6L
Capacity (Load) 1 - 10t
Horsepower 251 - 350hp
Products Description
Crawler transporter is a machine designed to provide transportation work in complex road conditions, and is suitable for places where wheeled vehicles cannot or are not suitable for passage. The crawler conveyor uses crawlers instead of wheeled walking, which reduces the damage to the ground. At the same time, the crawler walking device reduces the pressure per unit area of the machine and the ground. It is suitable for mine roadways, mountains, forests, fields, swamps, sand, grass, and snow. As well as working conditions with soft soil or bad environmental conditions. Crawler conveyors have larger approach and departure angles. With the same tire size, they can handle deeper mud pits and pools and complex stone roads. The crawler conveyor has a vehicle size that is suitable for crossing the polar regions, and can easily pass through narrow roadways, mountains and other special road conditions.
Model number
BJC-60 ton car
Length * width * height mm
4300*1800*1800
Carriage size mm
2700*1800*550
Steel plate thickness of carriage
Bottom 4 side 3
Chassis width m
1.85
Engine model/power
Weichai 4102 supercharged engine/95HP
Drive way
Air brake, rear axle brake
Gearbox model
Dongfeng 145
Drive axle model
Dongfeng 1098 rear axle
Crawler specifications
400*90*70
Track system
Engineering rubber track
Number of unilateral tugs
8 groups
Tug diameter
200 straddle tug 206 bearing
Hydraulic cylinder model
The front and rear two sets of wheels are solid wheels with 207 bearings
Start method
115*900 double top dump
Rated load T
Electric start
Vehicle weight KG
6
Gear
3800
Lifting height mm
5 forward gears, 1 reverse gear
Driving speed km/h
1700mm
