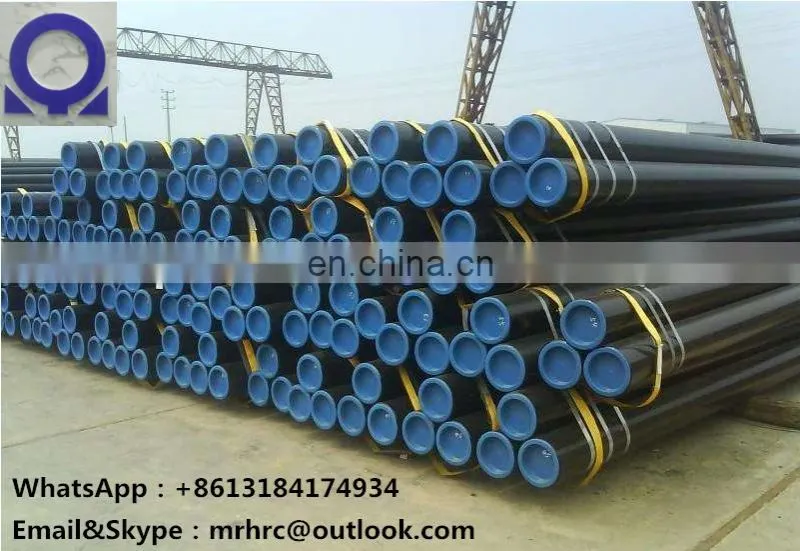

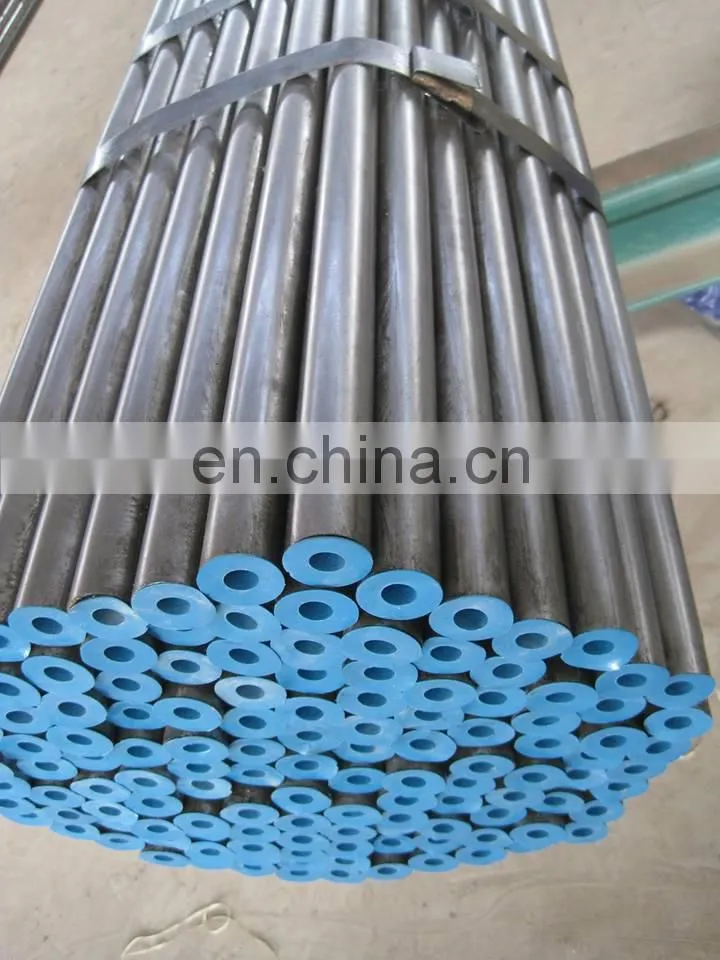

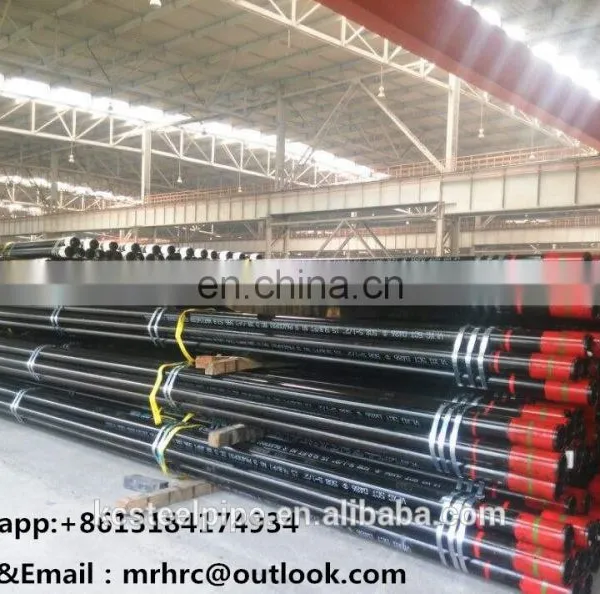

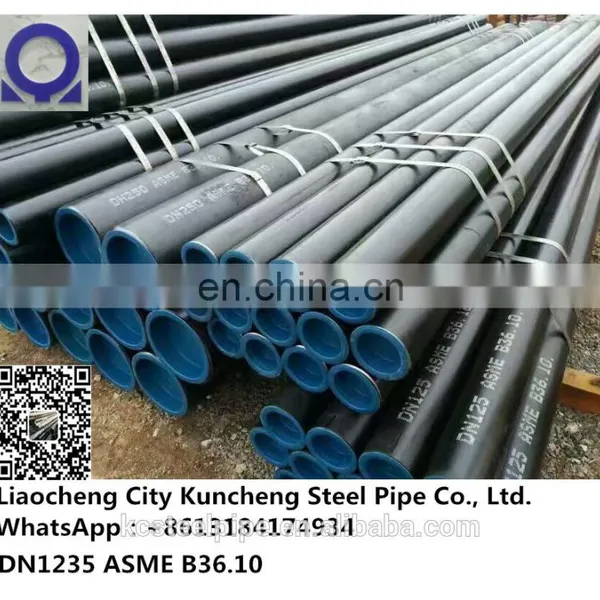

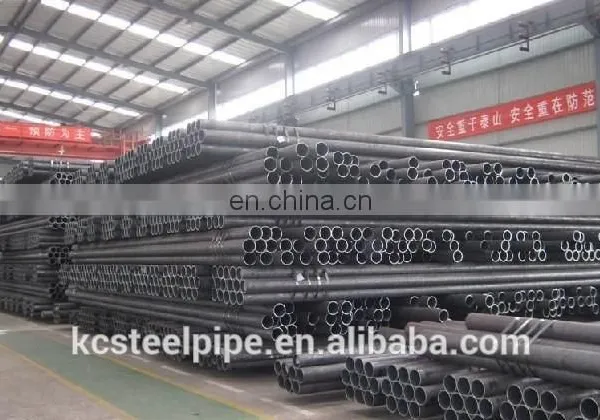

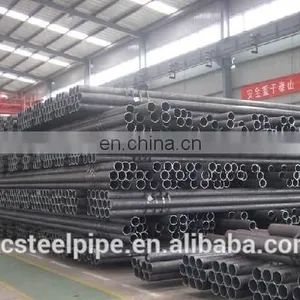

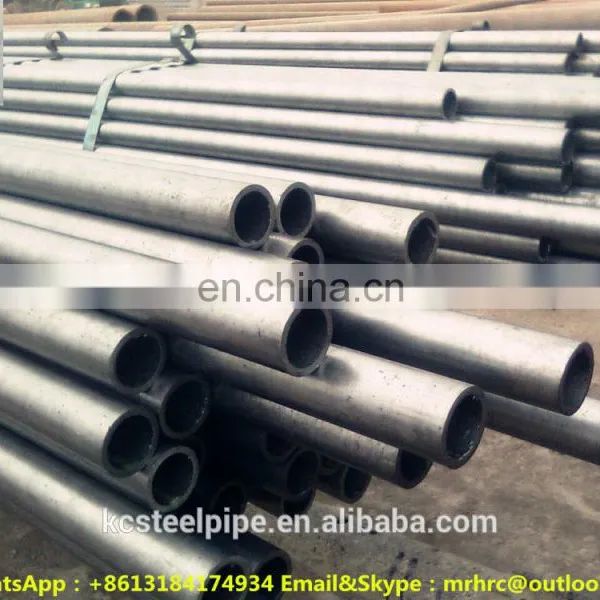

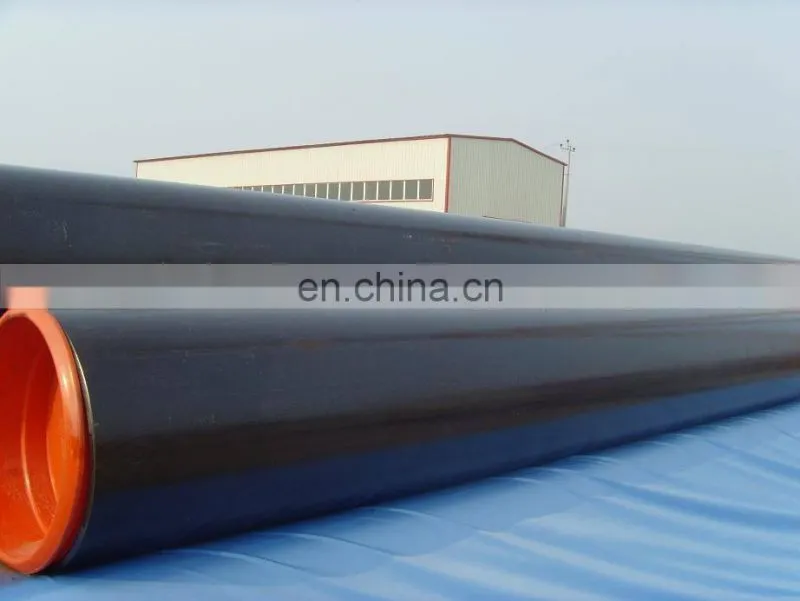

API SPEC 5L Specification PSL1 PSL2 X52 X42Seamless Steel Pipe

FOB Price

USD $500 - $800 / Ton

5 Tons(Min.Order)

Supply Ability 4000 Ton / Tons per Month
Port qingdao/shanghai/tianjin/dalian
Payment Terms:T/T Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price

Product Details

Place of Origin:	Shandong, China	Certification:	API	Thickness:	1, 30
Technique:	Cold Rolled
Alloy Or Not:	Non-alloy
Outer Diameter:	6 - 323 mm	Secondary Or Not:	Non-secondary	Special Pipe:	API Pipe
Section Shape:	Round

Product Description

API SPEC 5L
Line Pipe
Application:	It is used for conveying gas,water,and petroleum of both the oil and natural gas industries.
Size(mm):	O.D.:6.0-323.0 W.T.:1-30 L:max 12000

Grade and Chemical Composition (%)

Standard	Grade	Chemical Composition(%)
	Grade	C	Mn	P	S
	B	≤0.28	≤1.20	≤0.030	≤0.030
	X42	≤0.28	≤1.30	≤0.030	≤0.030
	X46,X52	≤0.28	≤1.40	≤0.030	≤0.030

Mechanical Properties(MPa)(PSL1):

Standard	Grade	Yield strength(MPa)		Tensile strength(MPa)		ElongationA%
API SPEC 5L	PSL1
	≥
		psi	MPa	psi	MPa	Min(%)
	B	35,000	241	60,000	414	21~27
	X42	42,000	290	60,000	414	21~27
	X46	46,000	317	63,000	434	20~26
	X52	52,000	359	66,000	455	20~2

Mechanical Properties(MPa)(PSL2):

Standard	Grade	Yield strength(MPa)		Tensile strength(MPa)		Elongation%	Impact(J)
API SPEC 5L	PSL2
		Min	Max	Min	Max		Min
	B	241	448	414	758	21~27	41(27)
	X42	290	496	414	758	21~27	41(27)
	X46	317	524	434	758	20~26	41(27)
	X52	359	531	455	758	20~24	41(27)

Grade and Chemical Composition

Standard	Grade	Grade and Chemical Composition(%)
	Grade	C	Mn	TI	P	S
	B	≤0.24	≤1.20	≤0.04	≤0.025	≤0.015
	X42	≤0.24	≤1.30	≤0.04	≤0.025	≤0.015
	X46,X52	≤0.24	≤1.40	≤0.04	≤0.025	≤0.015

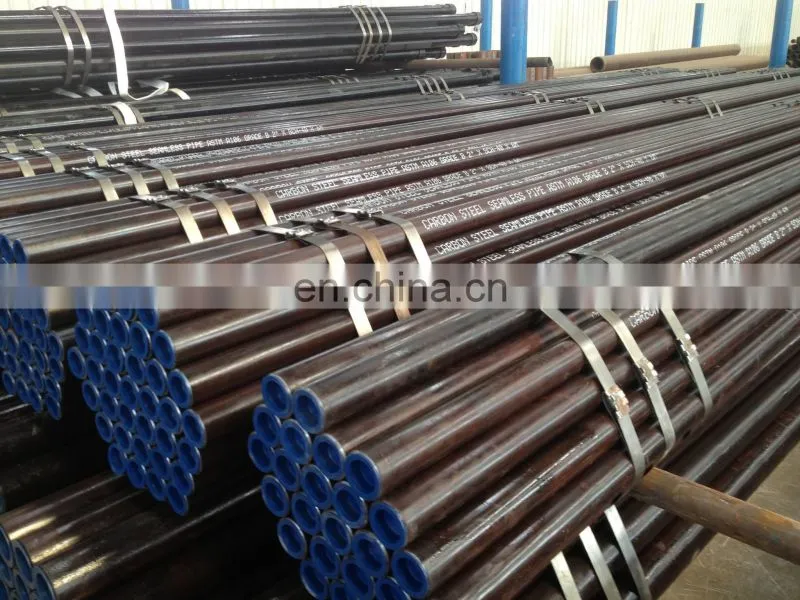

Packaging & Shipping

API 5L Line Pipe

Seamless ERW API 5L Line Pipe for dependable transmission of oil and gas to any type of collection and distribution point.

API 5L Specifications covers seamless and welded pipe suitable for use in conveying gas, water, oil, and other liquefied media.

API 5L steel pipe offering

Grade designations of API 5L Line pipe produced by U. S. Steel Tubular Products come from the American Petroleum Institute (API) Spec 5L Specification for line pipe. Currently produces 9 grades of API 5L line pipe:

API 5L B

API 5L X42

API 5L X46

API 5L X52

API 5L X56

API 5L X60

API 5L X65

API 5L X70

API 5L X80

Paint-stenciled or die-stamped manufacturer’s name or mark, Spec 5L, size, weight per foot, grade, process of manufacture, type of steel, length (NPS 4 and larger only). Test pressure when higher than tabulated (NPS 2 and larger only).
