Home > Products > EMT Conduit & Fittings - UL797 > Hot dip galvanized EMT conduit elbows ERW seamless steel pipe bends with the standard of ANSI C80.3 UL797
Hot dip galvanized EMT conduit elbows ERW seamless steel pipe bends with the standard of ANSI C80.3 UL797
- 1000 Piece / Pieces per Month
- T/T Credit Card
-
Multiple specifications hot dip galvanized EMT conduit elbows with the standard of ANSI C80.3 UL797 of conduit fittings
-
Galvanized EMT conduit elbows ERW seamless steel pipe bends with ANSI C80.3 standard UL797 to change the way of EMT conduit
-
Hot dip galvanized EMT conduit elbows with smooth welded seam of ANSI C80.3 UL797 standard pipe fittings
-
Hot dip galvanized EMT conduit elbows carbon steel fittings bends with the standard of ANSI C80.3 UL797
-
Hot dip galvanized EMT conduit elbows ANSI C80.3 UL797 universal pipe fittings bends
-
ANSI C80.3 UL797 standard hot dip galvanized EMT conduit elbows
Product Details
| Brand Name: | EAST CONDUIT | Place of Origin: | Shandong, China | Model Number: | EMT ELBOWS |
| Shape: | Equal | ||||
| Connection: | Male |
Product Description

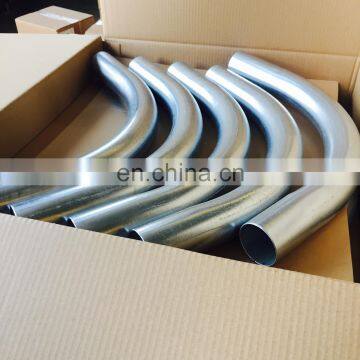

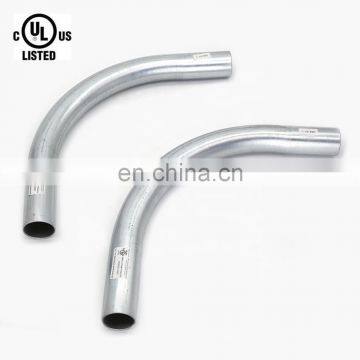

EMT elbows is manufactured from high-strength steel coil, and produced according to the standard of ANSI C80.3(UL797). The interior surface of our elbow is free from defect with a smooth welded seam. It is hot dipped galvanized inside and outside, so that metal-to-metal contact and galvanic protection against corrosion are provided, and the surface of the elbows with a clear lacquer coating to inhibit white rust and increase corrosion resistance. The elbows are used toconnect the EMT conduit to change the way of the conduit.
- Product Name: EMT conduit elbow/ bend
- Standard: UL 797/ ANSI C80.3
Trade Size : From 1/2” to 4” ; 90 deg/ 45 deg/ 30 deg/ 22.5 deg/ 15deg
- Usage: For EMT conduit connection
Surface finished: Hot Dip Galvanized(HDG).
- Material: Carbon Steel Coil
- Package: Carton
- Delivery time: 20 to 30 days after we receive your advance payment or copy of L/C
- Payment Term: L/C at sight or T/T
Pipe Size(in) | Minimum Centerline Radius | UNBENT LENGHTS | STANDARD CARTON PCS |
1/2" | 4" | 2-7/8" | 50 |
3/4" | 4-1/2" | 2-7/8" | 50 |
1" | 5-3/4" | 3-1/2" | 20 |
1-1/4" | 7-1/4" | 3-1/4" | 20 |
1-1/2" | 8-1/4" | 3-5/8" | 20 |
2" | 9-1/2" | 4-1/2" | 10 |
2-1/2" | 10-1/2" | 5-1/2" | 100 |
3" | 13" | 6-1/8" | 50 |
3-1/2" | 15" | 7-1/8" | 35 |
4" | 16" | 7-1/8" | 25 |
REMARK: Elbows special radius available upon request
Now our electrical products include Rigid Steel Conduit ,Rigid Aluminum Conduit, IMC Conduit, EMT Conduit and Conduit fittings such as elbow, nipple, coupling, etc., and our products have been exported to more than 51 countries in the world, including North America, Middle America, South America, Asia, Middle East, Europe, etc. We are always appreciated by our clients for good quality and excellent services.
Fast Facts About Weifang East Steel Pipe Co.,Ltd.
- The largest rigid steel conduit producer in China
- The only producer of Hot Dip Galvanized EMT conduit in the world.
- The professional manufacturer of conduit accessories in China
Q1. Are you a manufacturer or trading company?
Q2.Can you provide free sample for our test?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable. You only need to bear the freight and the sample will be sent out within 7 days.
Q3. Do you have any MOQ limit for production?
A: We don’t have any MOQ limit. But as for our steel pipe product, we usually use container transport for lower freight. In the case of express delivery, high freight charges will be generated.
Q4. How to proceed an order for product?
A: Firstly let us know your requirements or application.
Secondly we quote according to your requirements or our suggestions.
Thirdly buyer confirms the samples(if you need) and places deposit for formal order.
Finally we arrange the production.
Q5. Is it OK to print my logo on the product or the carton packing?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q6. How to deal with the faulty?
A: We sincerely welcome you to investigate our factory and inspect the goods. Our products are produced in strict quality control system and the defective rate is low.
Also, if you have any questions or dissatisfaction, please feel free to contact us. We will serve you as soon as possible and give you a satisfactory solution.
