electrical emt elbow to connect the EMT conduit
- 1000 Piece / Pieces per Month
- T/T Credit Card
Product Details
Brand Name: | East Conduit | Place of Origin: | Shandong, China | Model Number: | Elbow |
Connection: | Male | ||||
Product Description

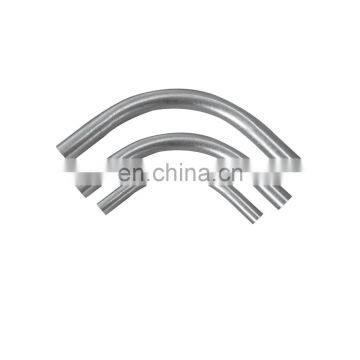

Electrical Metallic Tubing (EMT) Elbow
General
EMT elbow is manufactured from prime EMT conduit in accordance with the latest specifications and standards of ANSI C80.3 (UL797).
The interior and exterior surfaces of elbows are free from defect with a smooth welded seam, and also are thoroughly and evenly coated with zinc with hot dip galvanizing process, so that metal-to-metal contact and galvanic protection against corrosion are provided, and surface of elbows adopts the clear post-galvanizing coating to provide further protection against corrosion.
Elbows are produced in normal trade sizes from 1/2" to 4”, the degrees including 90 deg, 60 deg ,45 deg, 30 deg,22.5deg,15deg or according to customer’s request .
The elbows are used to connect the EMT conduit to change the way of the EMT conduit.
Detailed Product Description
- Standard: UL 797/ ANSI C80.3
- Certificates: UL Listed, certificate No.E340594(177709-001)
- Product Name: EMT conduit elbow/ bend
- Trade Size: From 1/2” to 4”
- 90 deg/ 45 deg/ 30 deg/ 22.5 deg /15deg
- Usage: For EMT conduit connection
- Surface Finished: Hot dip galvanized(HDG).
- Material: Carbon steel coil
- Package: Carton
- Delivery Time: 20 to 30 days after we receive your advance payment or copy of L/C
- Payment Term: L/C at sight or T/T
Dimension and Packing Chart (90DEG ELBOW)
SIZE | Mini.UL Radius "A" | Weight per 100PCS | PCS/ Carton | Weight/ Carton | |||
mm | in. | KG | LBS | KG | LBS | ||
1/2" | 102 | 4.016 | 10.8 | 24 | 50 | 5.42 | 11.95 |
3/4" | 114 | 4.488 | 19.7 | 43 | 50 | 9.84 | 21.70 |
1" | 146 | 5.748 | 35.1 | 77 | 20 | 7.02 | 15.48 |
1-1/4" | 184 | 7.244 | 64.3 | 142 | 20 | 12.86 | 28.35 |
1-1/2" | 210 | 8.268 | 84.8 | 187 | 10 | 8.48 | 18.70 |
2" | 241 | 9.488 | 123.4 | 272 | 10 | 12.34 | 27.20 |
2-1/2" | 267 | 10.512 | 211.8 | 467 | 50 | 105.92 | 233.52 |
3" | 330 | 12.992 | 310.8 | 685 | 35 | 108.79 | 239.83 |
3-1/2" | 381 | 15.000 | 471.4 | 1039 | 35 | 164.99 | 363.74 |
4" | 406 | 15.984 | 566.1 | 1248 | 25 | 141.52 | 312.00 |
REMARK: Elbows with special radius or special degree available upon request.
