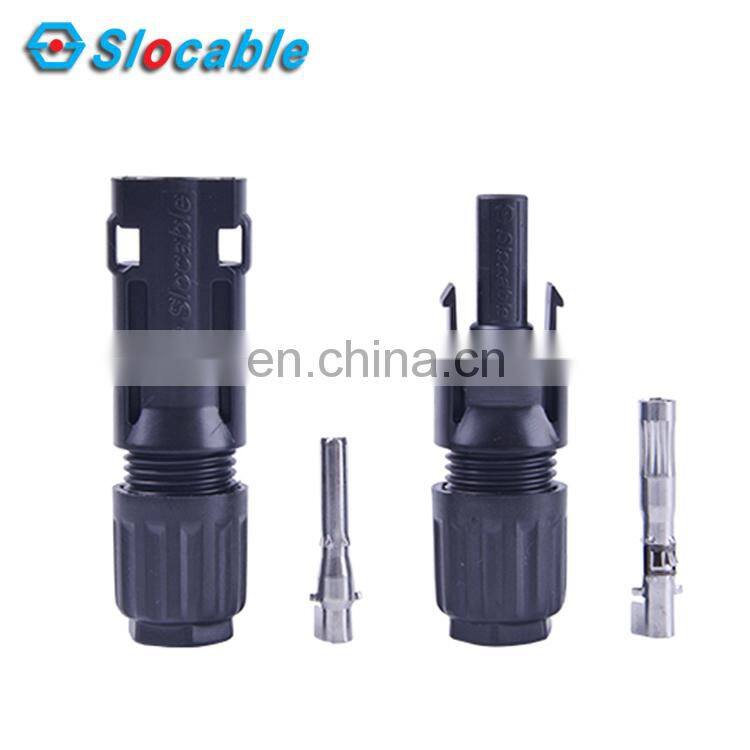

Flame Resistance IP68 Waterproof 1500V DC PV Cable Plug Socket Solar Connector Pin
Product Description
Technical Data
Insulation material: | PPO | Rated current: | 30A/50A |
Test voltage: | 8000V(50Hz,1min) | Rated voltage: | 1000V DC/1500V DC |
| Contact resistance: | <5mΩ | Degree of protection: | IP68 |
| Overvoltage category: | CATIII/2 | Flame class: | UL94-V0 |
Safety class: | II | Contact material: | Copper,tin plated |
| Temperature range: | -40℃ ~ +85℃ | Suitable cable: | 2.5/4/6mm2, 14/12/10AWG |
| Connecting System: | Crimp connection | Insertion force/ withdrawal force: | ≤50N / ≥50N |
Advantages of Product
- Simple on-site processing.
- Mating safety provided by keyed housings.
- Mutiple plugging and unplugging cycles.
- Accomodates PV cable with different insulation diamaters.
- High current carrying capacity.
- TUV and CE approved.
- Crimp connection.

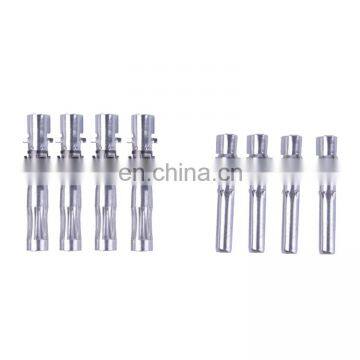

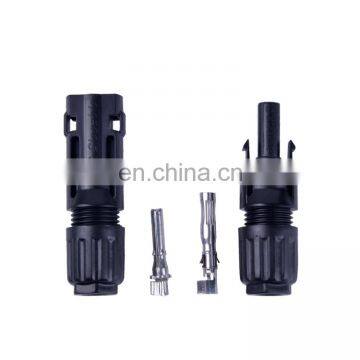

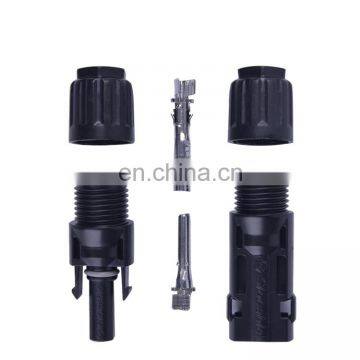

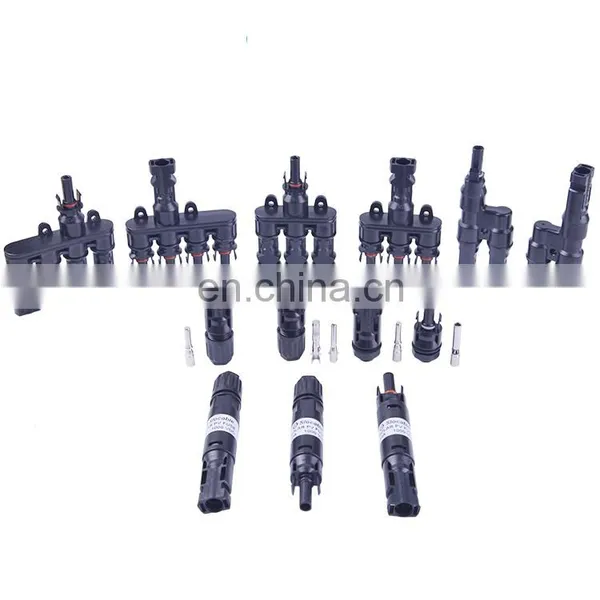

Product Photos
Quality Comparison
Company Information
Frequently Asked Question
Q1: What is your company's Main Products ? You are the Manufacturer or the trader ?
Solar Cables, Solar Connectors, PV Fuse Holder,Circuit breakers and other
solar relative products.We're the Manufacturer with more than 11 years experience.
1) All raw material we selected the high quality one.
2) Professional & Skilful workers care every details in handling the producing.
3) Quality Control Department specially responsible for quality checking in each process.
Q4: Do you provide OEM Project Service ?
OEM & ODM order is warmly welcome and we have fully successful experience in OEM projects.
What's more, our R&D team will give you the professional suggestions.
Q5: How Could I get the Sample?
We are honored to offer you samples,Samples is free provided,but need pay the courier freight.
If you have a courier account, you can send your courier to collect samples.
Q6: How long is the Delivery Time?
1) For Sample: 1-3 Days ;
2) For small Orders: 3-10 Days;
3) For mass Orders: 10-18 Days.
