Home > Electrical & Electronics > Electric Motor > Stepper Motor > ET-SGM37E Series 330rpm 37mm Gear Motor 6v 6v Geared Motor Mini Electric Gear Motor

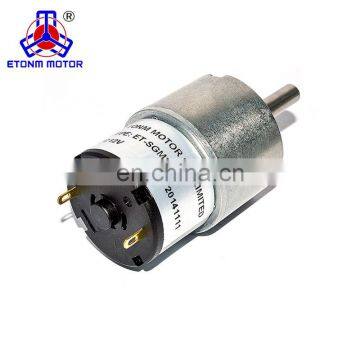

ET-SGM37E Series 330rpm 37mm Gear Motor 6v 6v Geared Motor Mini Electric Gear Motor
US$ 4.31 - 8.52
MOQ: 1000 Pieces
Key Specifications
Get Latest Price
Brand Name:
ETONM
Place of Origin:
Guangdong, China
Model Number:
ET-SGM37-E
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen and HONGKONG
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
37mm Small 12v Electric Low Rpm dc Gear MotorUS$ 4.12 - 10.27MOQ: 3000 Pieces -
18v 12v 24v 12volt High Torque dc Motor 60rpm Gear Motor for Air PurifierUS$ 4.3 - 6.7MOQ: 3000 Pieces
-
6v 100rpm Spur Gearhead Mini Electric Gear Motor Small 12v Dc Motor Electric Motor Low RpmUS$ 3.98 - 6.23MOQ: 3000 Pieces
-
6V 32rpm 12 Volt dc Motor Low Rpm Electric Motor dc 12v Brushed dc Electric MotorUS$ 3.98 - 6.23MOQ: 3000 Pieces
-
Encoder dc Motor for Air Cleaner MotorUS$ 4.1 - 6.7MOQ: 3000 Pieces
Brand Name
ETONM
Place of Origin
Guangdong, China
Model Number
ET-SGM37-E
Product Descriptions
spur gear dc motor | ||||||
Model | ET-SGM37E | |||||
Motor Voltage(VDC) | 3V-24V | |||||
Gearbox ratio | 10, 20, 30, 50, 70, 90, 120, 150, 210, 270, 450, 490, 630, 810 or Custom | |||||
Gearmotor no load speed(rpm) | 3.5rpm - 600rpm, or Custom | |||||
Gearmotor rated load speed(rpm) | 2.6-280rpm or Custom | |||||
Gearmotor rated load torque(kgf.cm) | 0.1-15kgf.cm | |||||
Gearmotor rated current(A) | <0.18A | |||||
Gearmotor no load current(A) | <0.06A | |||||
Housing material | Stainless Steel | |||||
Bearing at output shaft | ball-bearing or oil-retaining bearing | |||||
Certificate | CE,ROHS,ISO | |||||
Shaft Shape | D-shaft or O-shape | |||||
Encoder | 3PPR, 7PPR, 12PPR | |||||
Gear type | Spur gear, or worm gear, or planet construction | |||||
MODEL | VOLTAGE | NO LOAD | AT RATED LOAD | ||||||||
speed | current | speed | current | torque | |||||||
r/min | A | r/min | A | kgf.cm | |||||||
ET-SGM37E-06330 | 6.0-12.0 | 6VDC | 330 | < =0.06 | 280 | <=0.18 | 0.16 | ||||
ET-SGM37E-06165 | 6.0-12.0 | 6VDC | 165 | < =0.06 | 140 | <=0.18 | 0.29 | ||||
ET-SGM37E-06110 | 6.0-12.0 | 6VDC | 110 | < =0.06 | 93 | <=0.18 | 0.44 | ||||
ET-SGM37E-0666 | 6.0-12.0 | 6VDC | 66 | < =0.06 | 56 | <=0.18 | 0.66 | ||||
ET-SGM37E-0647 | 6.0-12.0 | 6VDC | 47 | < =0.06 | 40 | <=0.18 | 0.9 | ||||
ET-SGM37E-0636 | 6.0-12.0 | 6VDC | 36 | < =0.06 | 31 | <=0.18 | 1.2 | ||||
ET-SGM37E-0627 | 6.0-12.0 | 6VDC | 27 | < =0.06 | 23 | <=0.18 | 1.4 | ||||
ET-SGM37E-0622 | 6.0-12.0 | 6VDC | 22 | < =0.06 | 18.6 | <=0.18 | 1.8 | ||||
ET-SGM37E-0616 | 6.0-12.0 | 6VDC | 16 | < =0.06 | 13 | <=0.18 | 2.5 | ||||
ET-SGM37E-0612 | 6.0-12.0 | 6VDC | 12 | < =0.06 | 10 | <=0.18 | 3.2 | ||||
ET-SGM37E-067.3 | 6.0-12.0 | 6VDC | 7.3 | < =0.06 | 4.4 | <=0.18 | 4.9 | ||||
ET-SGM37E-066.7 | 6.0-12.0 | 6VDC | 5.2 | < =0.06 | 3.5 | <=0.18 | 6.8 | ||||
ET-SGM37E-0604 | 6.0-12.0 | 6VDC | 4 | < =0.06 | 2.6 | <=0.18 | 8.7 | ||||
ET-SGM37E-063.5 | 6.0-12.0 | 6VDC | 3.5 | < =0.07 | 1.7 | <=0.2 | 10 | ||||
