1.5 - 400 mm2 CE certificated NYA cable Exported to Worldwide

FOB Price

USD $0.3 - $5 / Meter

100 Meters(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Product standard:
The production standard for anti-flaming and fire-resistant cables is GB/T19666-2005,GB/T5023-2008,JB/T8734-2012
Main of cables features
1,Uo/U is 450/750V,300/500,
2,Long-term allowable temperature of the cable:The allowable temperature of 105 Cable should not exceed 105℃, the allowable temperature of other models should not exceed 70℃.

Applicable to the cables and wires of rated yolatage 450/750V and less than 450/750V AC for power

plant, householdelectrical applance,insurment and telecommunication equipment.

Nominal section(mm²)	Number of conductors	Toplimit of overall diameter(mm)	Maximum DC resistance(20℃)(Ω/km)	Minimum insulation resistance(70℃)(MΩ.km)	Recommended value of carrying capacity(A)	Reference weight(kg/kmm)



2.5	19	4.1	7.41	0.011	34	32
4	19	4.8	4.61	0.009	44	48
6	19	5.3	3.08	0.0084	58	67
10	49	7.3	1.83	0.0072	79	117
16	49	8.6	1.15	0.0062	111	173
25	98	10.2	0.727	0.0058	146	272
35	133	11.7	0.524	0.0052	180	363
50	133	13.9	0.387	0.0051	228	488
70	189	16.0	0.268	0.0045	281	682
95	259	1.6	18.2	0.193	344	944
120	259	1.6	19.8	0.153	397	1167
150	336	1.8	22.2	0.124	456	1453
135	427	2.0	24.6	0.0991	519	1809

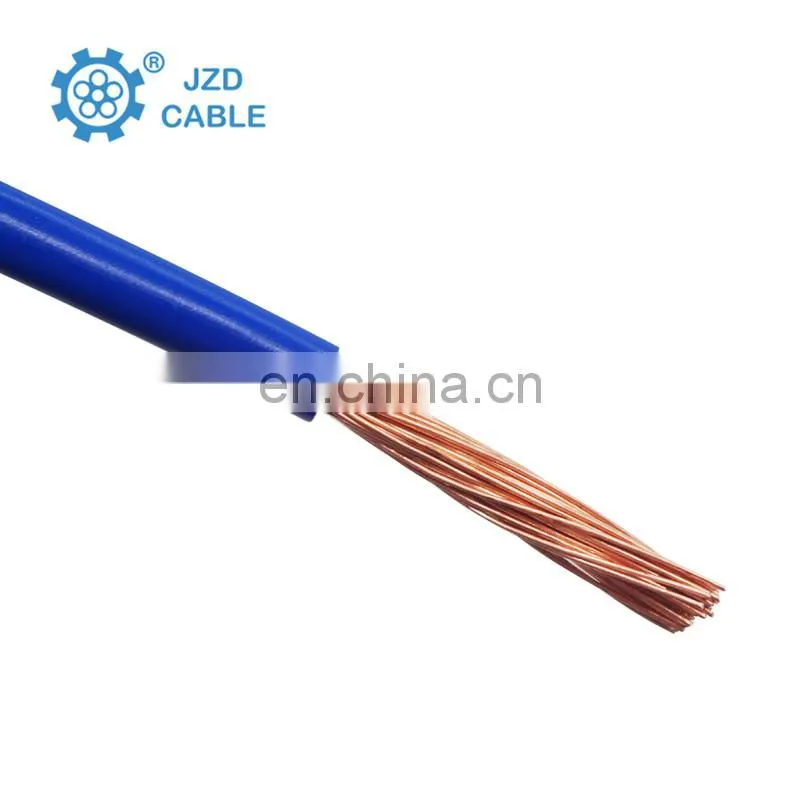

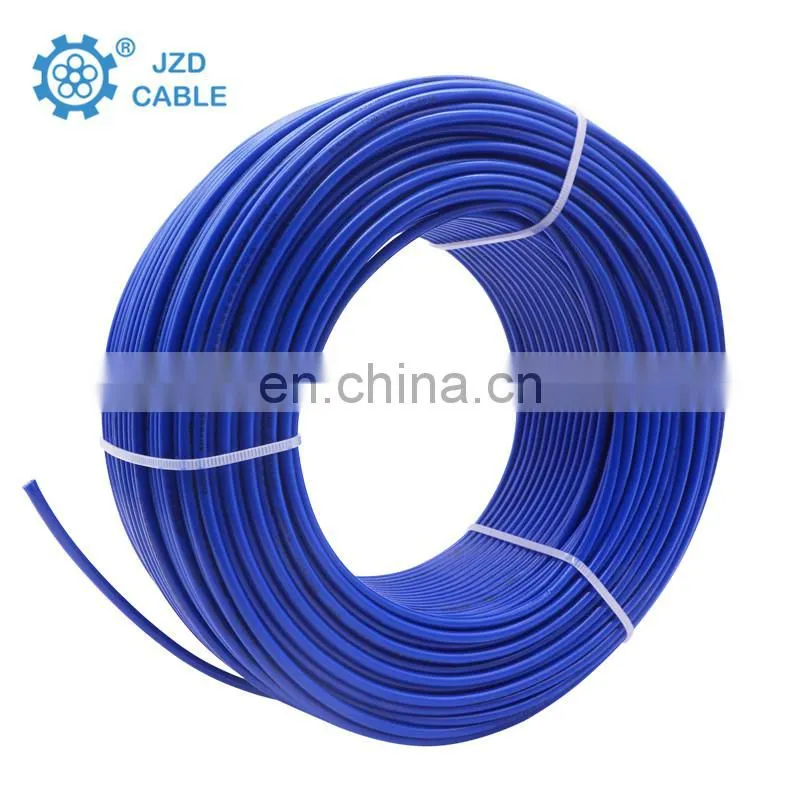

Product Pictures
