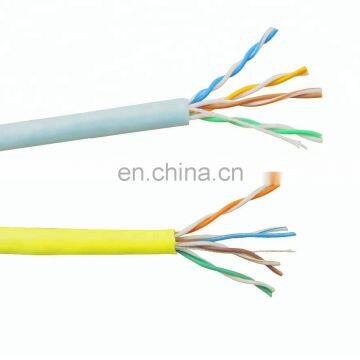

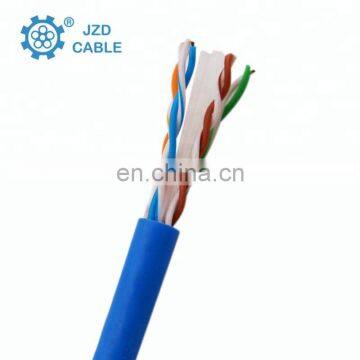

Patch cord ethernet cat5 cat6 utp electric lan cable

FOB Price

USD $0.1 - $0.3 / Meter

305 Meters(Min.Order)

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price

Product Details

Brand Name:	JZD	Place of Origin:	China	Model Number:	lan cable
Number of Conductors:	4

Product standard:
The production standard for anti-flaming and fire-resistant cables is GB/T19666-2005,GB/T5023-2008,JB/T8734-2012
Main of cables features
1,Uo/U is 450/750V,300/500,
2,Long-term allowable temperature of the cable:The allowable temperature of 105 Cable should not exceed 105℃, the allowable temperature of other models should not exceed 70℃.

Applicable to the cables and wires of rated yolatage 450/750V and less than 450/750V AC for power

plant, householdelectrical applance,insurment and telecommunication equipment.

U/UTP Cat 5(lndoor)

Ni Ion Rip cord	150D
Max.capacitance unbalance(pF/100m)	≤S330pF/100M(Per TIA/EIA-568B.2)
Max.capacitance unbalance(pF/100m)	≤60pF/100(Per IEC 61156)
Nominal Velocity of Propagation	69%
Max.Delay Skew(ns/100m)	≤45ms/100m
Max.Conductor DC Resistance20Deg.c	9.50Ω/100M (24AWG)
Max.DC Resistance unbalance 20 Deg.C	≤5% (per TIA/EIA-568B.2)
Max.DC Resistance unbalance 20 Deg.C	≤2% (per IEC 61156)
Characteristic lmpedance(O) 4"1.00MHz	100±5
Operating Temp.Range	-20~70℃
Max.Recommended Pulling Tension	110N
Min.Bend Radius(lnstall)	8xO.D.
Flame Test	CM

F/UTP Cat 5e(lndoor)

Separation(Polyester Wrapping)	Tick:0.025mm,Extent:20mm
cable Shield(Aluminum Foil)	Tick:0.060mm,Extent:20mm
ESD Drain Wire	0.4TC
Ni Ion Rip cord	150D
Max.capacitance unbalance(pF/100m)	≤330pF/100M(Per TIA/EIA-568B.2)
Max.capacitance unbalance(pF/100m)	≤60pF/100{Per IEC 61156}
Nominal Velocity of Propagation	69%
Max.Delay Skew(ns/100m}	≤45ns/100m
Max.Conductor DC Resistance20Deg.c	9.5Ω/100M (24AWG)
Max.DC Resistance unbalance 20 Deg.C	≤5% (perTIA/EIA-568B.2)
Max.DC Resistance unbalance 20 Deg.C	≤2% (per IEC 61156)
Characteristic lmpedance(O) 4"1.00MHz	100±15
Operating Temp.Range	-20~70℃
Max.Recommended Pulling Tension	110N
Min.Bend Radius(lnstall)	8xO.D.
Flame Test	CM
